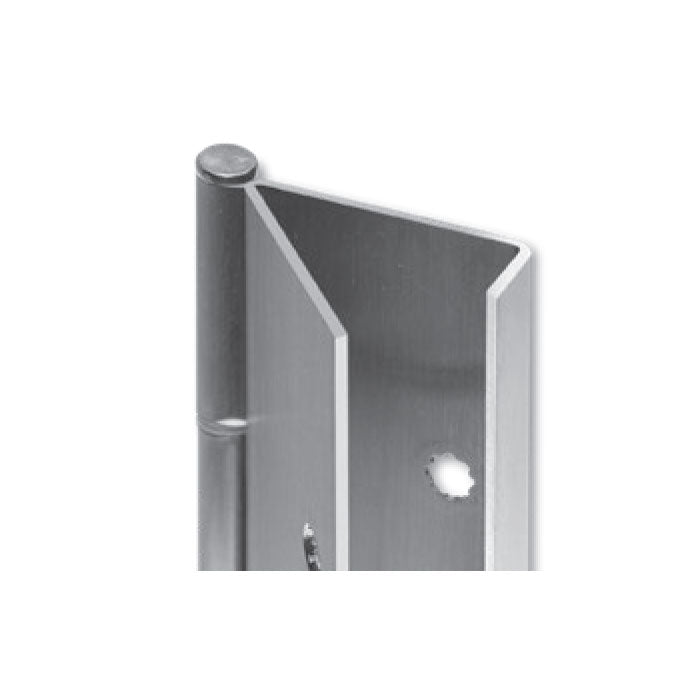

Select SL315 Heavy Duty Stainless Steel Pin & Barrel Concealed Continuous Hinge with Edge Guard

$565.56

Usually Ships: 2-3 Business Days

Heavy-duty 14 gauge 304 Stainless Steel
Supports weights up to 600lbs
Includes edge guard

Available Options:

Clear

Length

Quantity:

Added to Cart

Select SL315 Heavy Duty Stainless Steel Pin & Barrel Concealed Continuous Hinge, Edge Guard

SELECT pin & barrel continuous hinges are built to handle abuse from high-traffic applications. They are applied to the surface on the edge of the frame and door. No machining or reinforcement is required.

Concealed hinge
Stainless steel
Edge guard

Brand	Select
Length	83" (for 7'0" door), 79" (for 6'8" door), 85" (for 7'2" Door), 95" (for 8'0" door)
Finish	Stainless Steel
Material	14 gauge 304 stainless steel with 3/16" diameter 304 stainless pin. Long-life nylon medical bearings.
Load / Frequency	For 1-3/4" doors, 48" wide (max.), weighing up to 400 pounds (medium-frequency) without frame or door reinforcement; up to 600 pounds (low-frequency) without frame or door reinforcement.
ANSI/BHMA Standard	ANSI/BHMA A156.26-2006 Grade 1
Fire-Rating	3 Hour Fire-rated

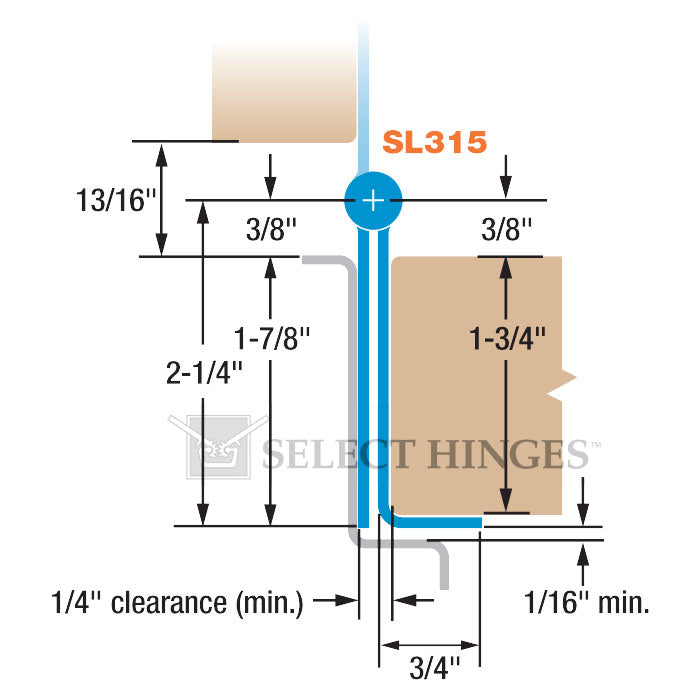

Continuous Hinge Type	Full Mortise (Concealed)
Usage	Heavy Duty
Buy American Act Compliance	Meets Buy American Act - Made in USA

SL315_Concealed_Pin_and_Barrel_Installation_Instructions

SL315SpecSheet
