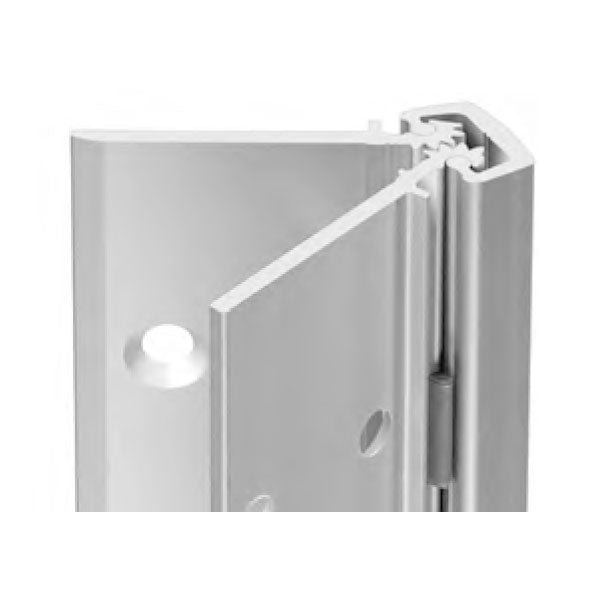

Select SL12 HD600 Heavy Duty Concealed Geared Continuous Hinge

$153.80
Usually Ships:  2-3 Business Days
  • Ideal for storefront applications and compatible with EFCO doors
  • Beveled frame leaf allows for weatherstripping or smoke seal

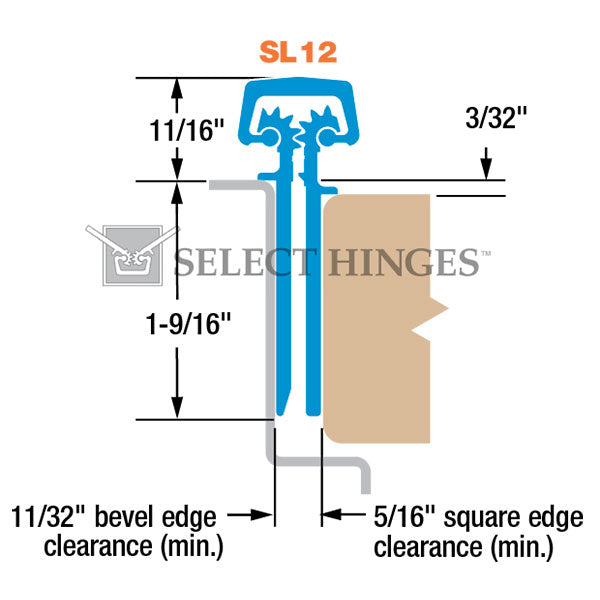

  • 3/32" door inset, for 1-3/4" doors

Available Options:

Clear

Product Overview

The SL12 is a secure, long-term hinge solution for entrances in schools, offices, airports, storefronts, hotels, and public and industrial buildings. Independent lab tests prove SELECT geared continuous hinges withstand 25 million open/close cycles equalling more than 60 years of high-traffic use.

  • Beveled frame leaf allows for weather-stripping or smoke seal
  • Ideal for storefront applications and compatible with EFCO doors.
  • Staggered hole pattern
  • 3/32" door inset. For 1-3/4" doors.
  • SL12 HD geared continuous hinges are BHMA Grade 1 certified
  • Lifetime lubrication
  • Anodized after machining
  • Consistent templating

Brand

Finishes

Dark Bronze Anodized Aluminum, Clear Anodized Aluminum

Length

83" (for 7'0" door), 95" (for 8'0" door)

Material

Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.

ANSI/BHMA Standard

ANSI/BHMA A156.26-2006 Grade 1

Fire-Rating

All SELECT hinges have been UL® tested and listed to 90-minute Fire Rating Standards without fire pins or studs—at no extra cost

Continuous Hinge Type

Full Mortise (Concealed)

Usage

Heavy Duty

Buy American Act Compliance

Meets Buy American Act - Made in USA
