Securitech TEL-IAL Inactive Door Package for Trident Locks with Double Door Bracket Keyed Lock

$1,451.52
Usually Ships:  5-10 Business Days
  • Inactive door package used with Trident door locks (Trident sold separately)
  • Includes angled strike support and a two-point vertical deadbolt lock
  • Not for use where both doors need to be active

Product Overview

Securitech TEL-IAL Inactive Door Package for Single Locks with Double Door Bracket Keyed Lock for Trident TEL-100 and TEL-200(F) Models

PAIR OF DOORS APPLICATION: KIT, ONE ACTIVE DOOR & ONE INACTIVE DOOR (Exit device ordered separately)

Inactive door package used with Trident single door locks. Includes double door aluminum angle bracket & 3-point keyed lock for inactive door only. Includes removable-core rim cylinder for 3-point keyed lock. Not for use where both doors need to be active.

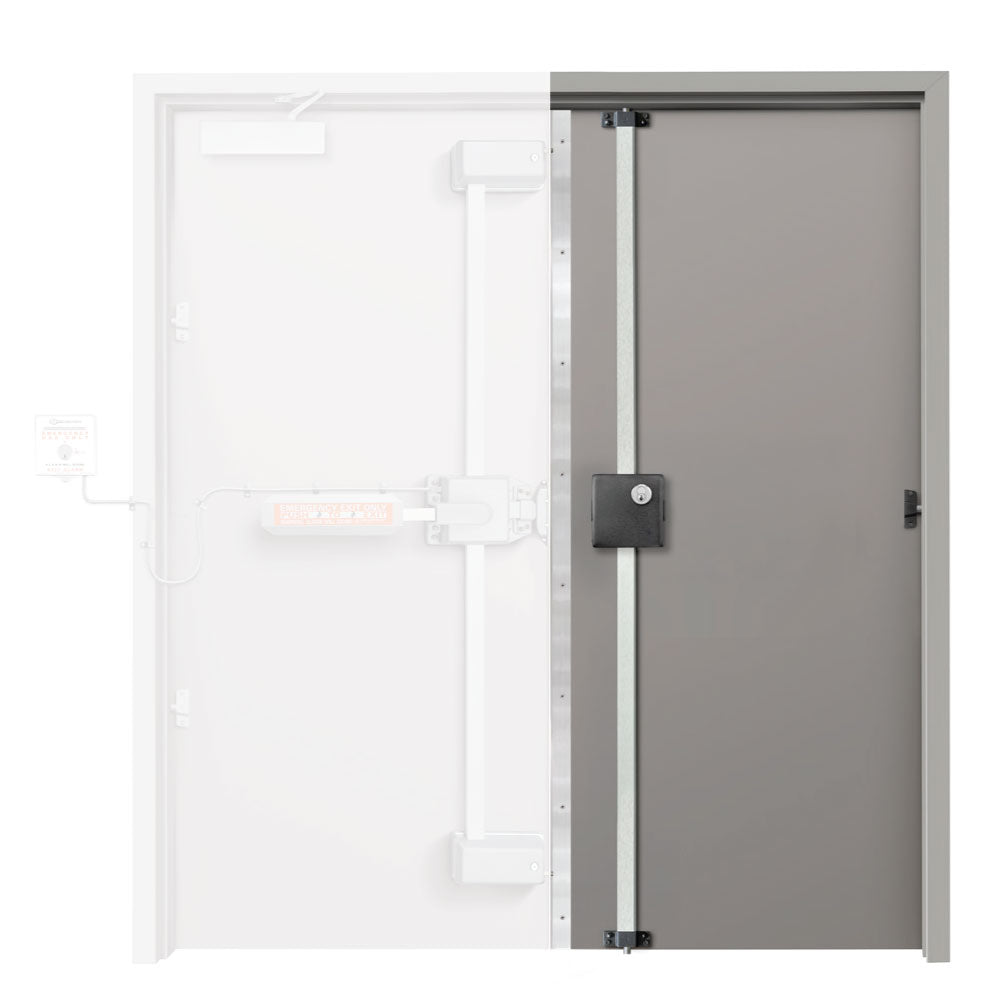

TEL-IAL as a retrofit installation with a TRIDENT exit device

The TRIDENT strike is mounted on factory-prepared holes in the angled strike support. Holes for the top and bottom deadbolts are drilled into the angled strike support after the TRIDENT is installed.

  • Either a TEL-100 or TEL-200 is installed on the active leaf of a pair of doors, depending on the application
  • System includes an angled strike support that replicates the rabbeted frame overlap
  • Resists prybar attacks and provides mounting for the primary deadbolt strike and horizontal deadbolts.
  • TEL-481 is a single-key, two-point lock designed for installation in under one hour.

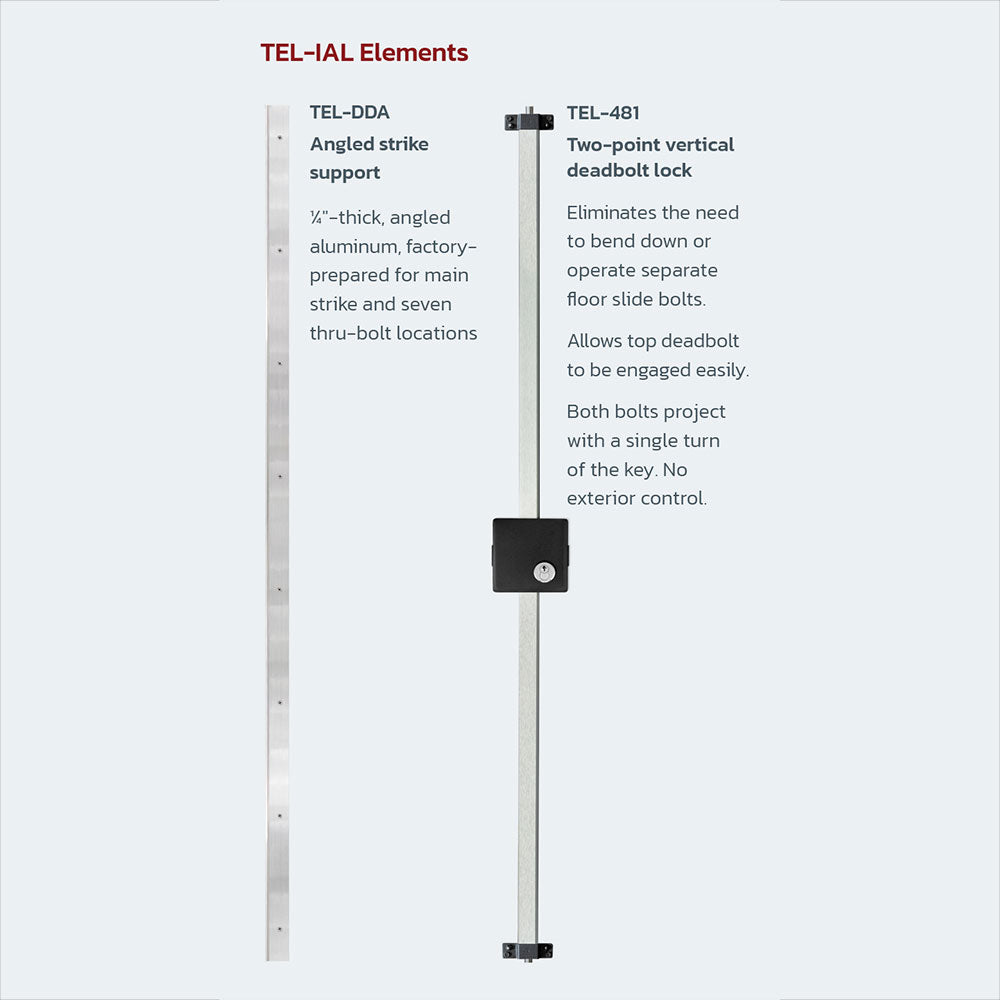

TEL-IAL Elements

TEL-DDA Angled strike support: 1/4" thick, angled aluminum, factory-prepared for main strike and seven thru-bolt locations

TEL-481 Two-point vertical deadbolt lock: Eliminates the need to bend down or operate separate floor slide bolts. Allows top deadbolt to be engaged easily. Both bolts project with a single turn of the key. No exterior control. Includes a removable-core rim cylinder.

Brand

Handing

Completely Reversible

Door Thickness

1-3/4"

Buy American Act Compliance

Meets Buy American Act - Made in USA
