SDC

SDC E75 Standalone Electronic Cylindrical Lock

$519.08
This item ships FREE! Usually Ships:  1-2 Business Days
  • Keypad programmable
  • 3,000 users, 32 temporary users
  • Mechanical key override (Schlage C keyway)

Available Options:

Clear

Product Overview

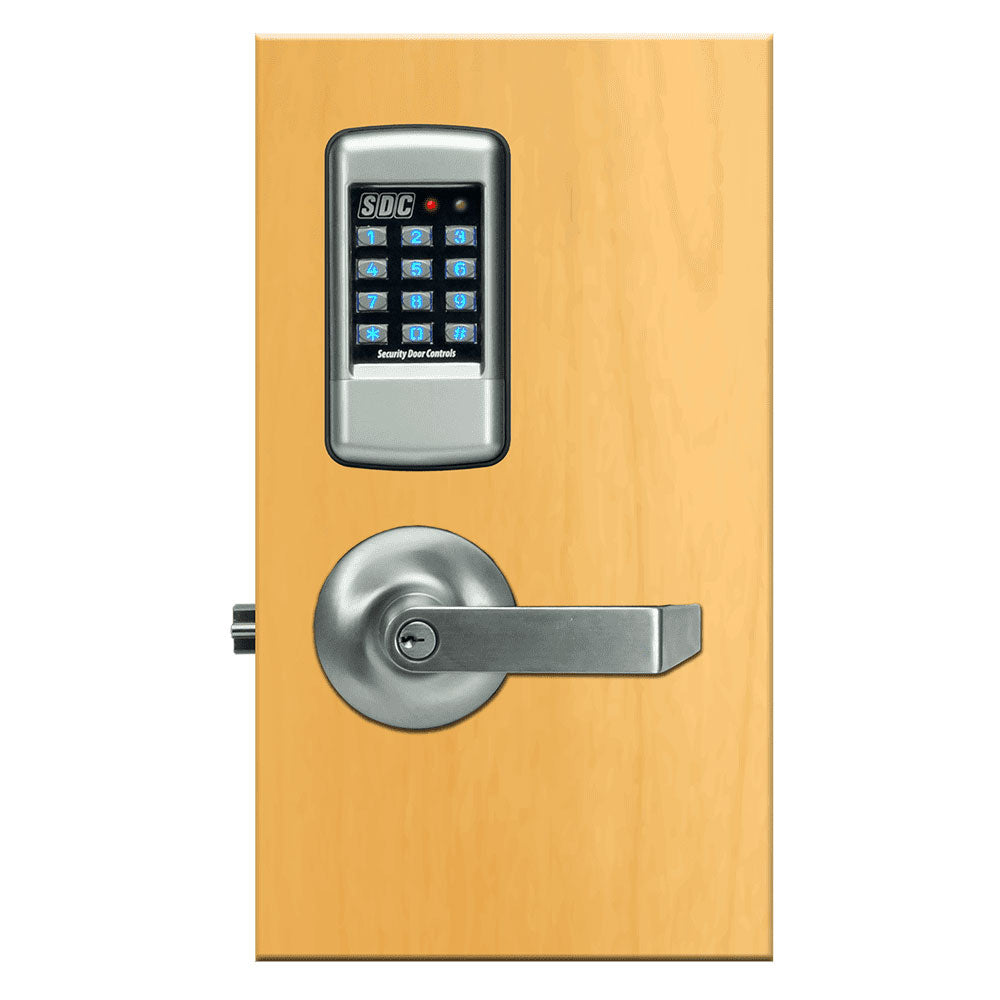

SDC E75 Electronic Battery Powered Cylindrical Locksets, 626 Satin Chrome Finish

SDC battery powered electronic door locks and keyless entry system provide controlled access for basic and multi-level convenience requirements. Priced to compete with entry-level brands, SDC standalone locksets are loaded with features professionals expect with hardwired systems. Additionally, E70 series keypads comes standard with all of SDC's EntryCheck® features such as door sense/inhibit inputs industry professionals have become accustomed to from SDC keypads.

E75K, E75P and E75PS model standalone locksets are keypad or PC software programmable and combine multiple access technology with efficient motorized locksets. An optional passage mode feature comes standard.

E75KL and E75PL models feature a privacy function that locks the keypad by engaging the privacy button on the inside, and the red LED on the outside flashes to indicate room occupation. Turning the inside lever upon exiting deactivates the privacy function. In case of emergency, the privacy function can be overridden via key or master code. E75KL and E75PL modes are the perfect low-cost standalone solution for new or retrofitting of service stations, convenience stores, fast food or coffee house restroom facilities.

Standard Features

  • Keypad programmable
  • 3,000 users, 32 temporary users
  • 4 to 6 digit PIN codes
  • 32 access groups, schedules and holidays
  • 4 authority levels
  • Keypad tamper lockout
  • Mechanical key override
  • Battery powered (4 AA)
  • Blue backlit cast metal keys
  • Weather & vandal resistant
  • Retrofits existing lock door prep
  • Motorized SDC cylindrical lockset
  • Vandal resistant lever clutch mechanism
  • Request-to-exit (REX)
  • Door position status (DPS)
  • Visual status indicators (LED)

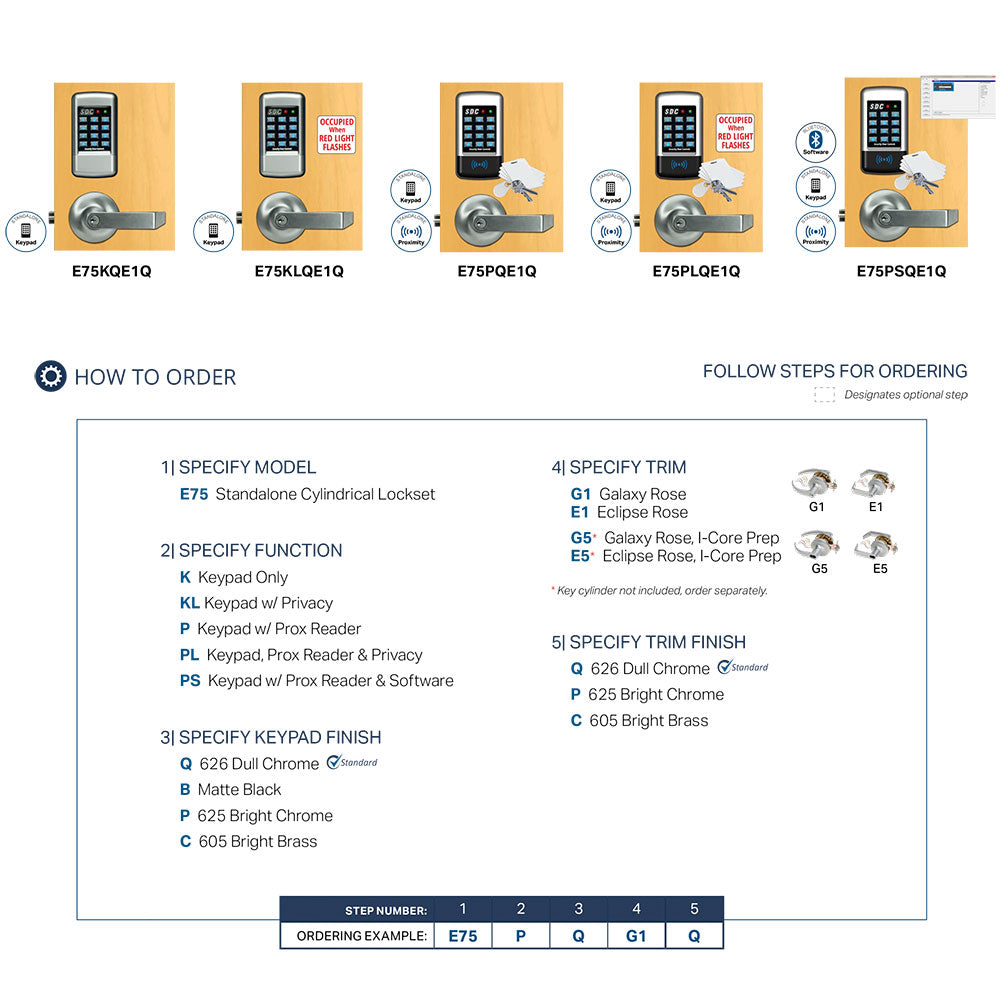

Models: E75KQE1Q, E75KQG1Q, E75KLQE1Q, E75KLQG1Q, E75PQE1Q, E75PQG1Q, E75PSQE1Q
Brand

Finishes

626 Satin Chrome

Lever Design

E1 Eclipse Rose, G1 Galaxy Rose

Lock Function

Pushbutton Keypad

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156.2 Grade 1

Fire-Rating

Fire Rated - UL10C - Positive Pressure

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Cylinder Format

Conventional

Keyway

Schlage C Keyway

Backset

2-3/4"

Door Thickness

1-3/4" to 2-1/8"

Latch

9/16" throw, deadlocking - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Power

4 AA batteries

Warranty

5-year limited
