Schlage

Schlage PT40 Bath/Bedroom Privacy Tubular Lever Lock

$124.20
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • ADA compliant, 3-hour fire-rated
  • Non-adjustable latch provided fits 2-3/4" backset

Available Options:

Clear

Product Overview

Schlage Performance Series PT40 Grade-2 Tubular Lever Lock, Privacy Function, 2-3/4" Backset

Every Door Deserves Quality — even when balancing performance and budget. PT Series tubular locks are purpose-built with 10 lever styles and *6 finishes.

*Contact us for 613, 619, 625, and 643e finishes

Purpose-built to serve the commercial real estate, retail, multifamily, and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point.

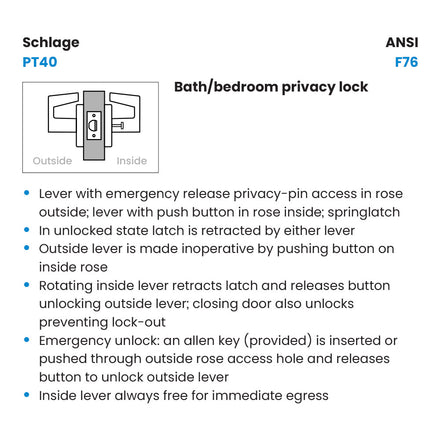

ANSI Function F76 – Lever with emergency release privacy-pin access in rose outside; lever with push button in rose inside; springlatch • In unlocked state latch is retracted by either lever • Outside lever is made inoperative by pushing button on inside rose • Rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lock-out • Emergency unlock: an allen key (provided) is inserted or pushed through outside rose access hole and releases button to unlock outside lever • Inside lever always free for immediate egress

  • ANSI/BHMA A156.2, Series 4000, Grade 2 tubular lock; ANSI/BHMA A156.39 Grade AAA in Security, Durability, and Finish
  • Exceeds ANSI/BHMA Grade 2 requirements by 2X
  • UL 10C and CAN/ULC-S104; 3-hour A label single fire door 4'0" x 8'0"
  • Field-reversible handing
  • Non-adjustable latch provided fits 2-3/4" (70 mm) standard
  • Stainless steel latchbolt with 1/2" (13 mm) throw - 1-1/8" x 2-1/4" (29 mm x 57 mm) with square corner faceplate

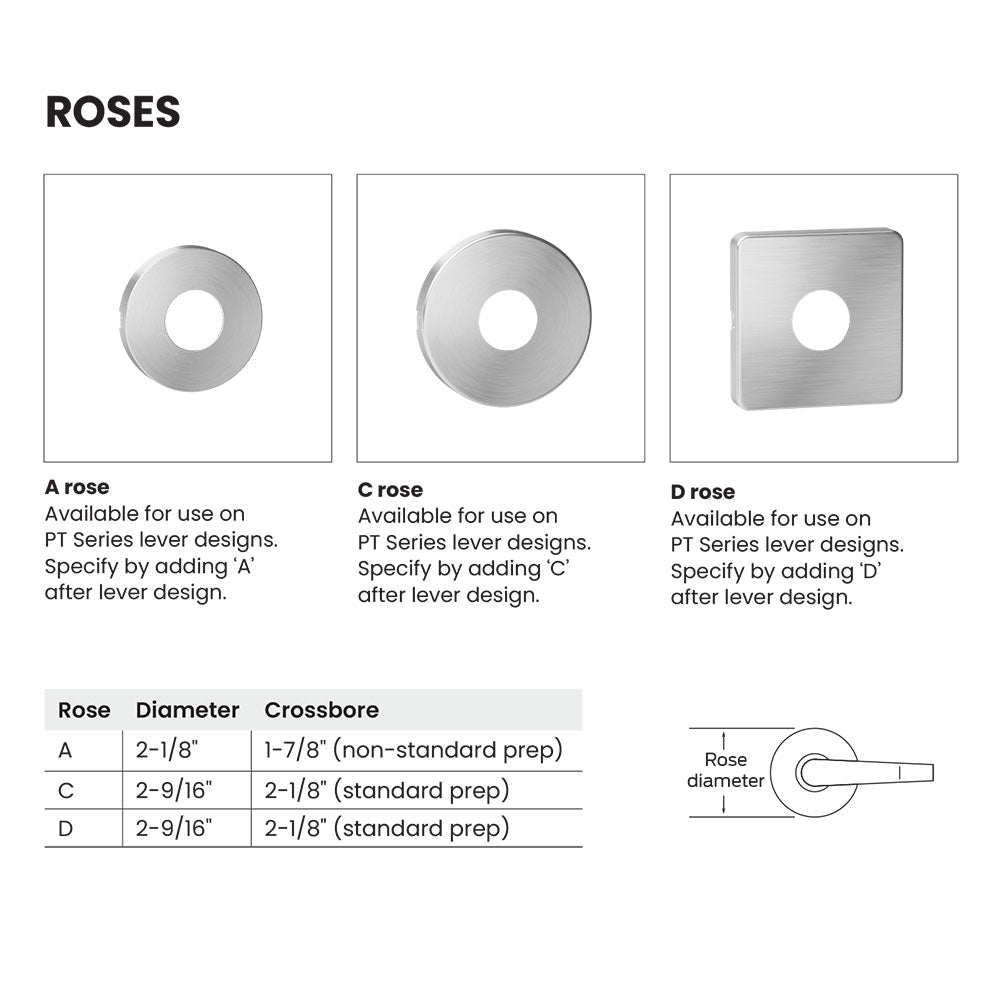

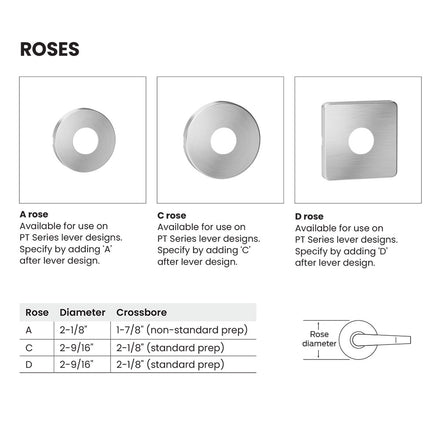

  • Door Prep: C and D large roses fit 2-1/8" (54 mm) bore and ANSI/SDI A250.14 door prep. A small rose fits 1-7/8" (48") cross bore prep

codes

Brand

Finishes

626 Satin Chrome, 622 Matte Black

Lock Function

Privacy

Lever Design

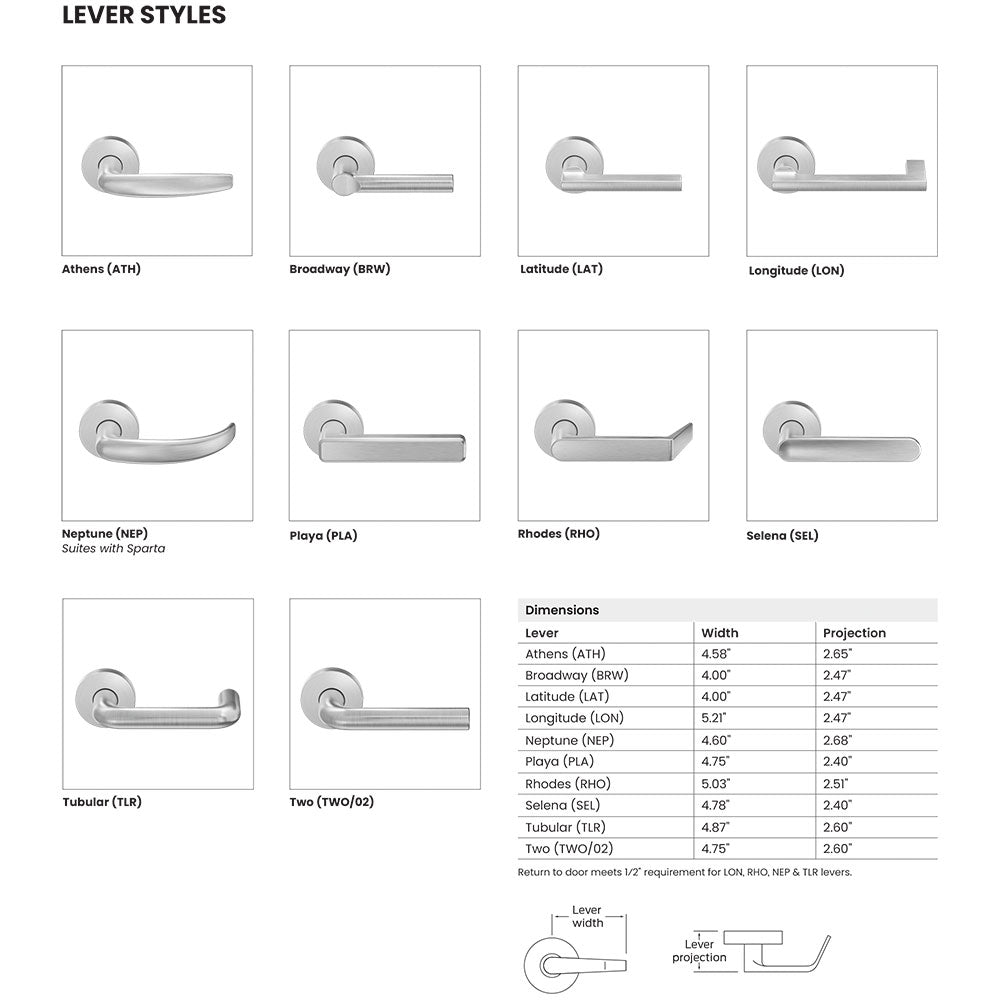

RHO (Rhodes), ATH (Athens), BRW (Broadway), LAT (Latitude), LON (Longitude), PLA (Playa), NEP (Neptune), SEL (Selena), TLR (Tubular), TWO (TWO/02)

Backset

Non-adjustable latch provided fits 2-3/4" (70 mm) standard - 2-3/8" (60 mm) optional (sold separately)

Latch

Stainless steel latchbolt with 1/2" (13 mm) throw - 1-1/8" x 2-1/4" (29 mm x 57 mm) with square corner faceplate

Strike

Square Corner T-Strike with dust box 1-1/8" x 2-3/4" (29 mm x 70 mm) with 1-1/8" (29 mm) lip length

Usage

Medium Duty

ANSI/BHMA Standard

Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Warranty

5 year limited mechanical warranty
