Schlage

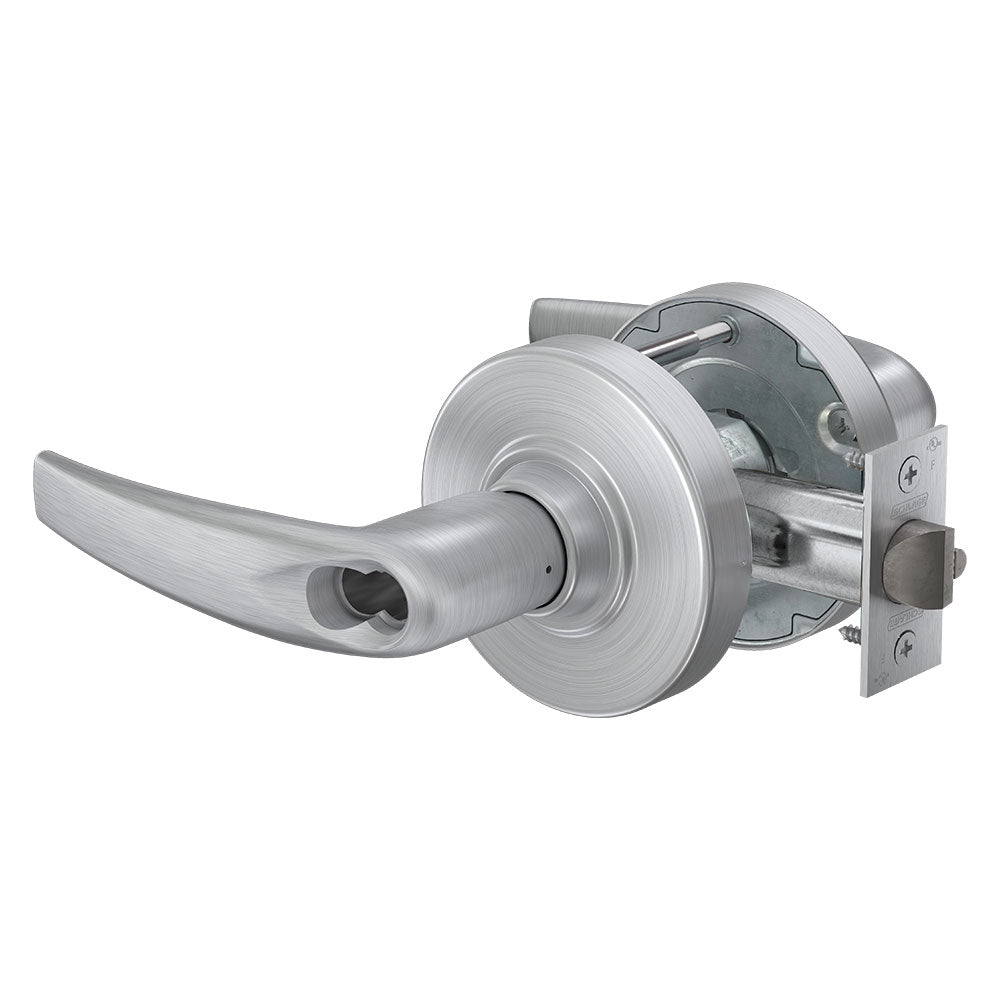

Schlage PC80J ATH (Athens) Storeroom Lever Lock, FSIC Full Size Interchangeable Core Prep

$335.88
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified Grade 1
  • ANSI Function F86 – Storeroom
  • Full Size Interchangeable Core Prep (core sold separately)

Available Options:

Clear

Product Overview

Schlage PC80J ATH Grade-1 Cylindrical Lever Lock, Storeroom Function, Athens Lever, 2-3/4" Backset, ASA Strike, FSIC Full Size Interchangeable Core Prep, Less Core

Purpose-built to serve the commercial real estate, retail, multifamily, and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point.

ANSI Function F86 – Lever with key cylinder outside; lever inside; deadlatch • Outside lever always fixed; latch retracted by inside lever • Key in outside lever retracts latch only • Inside lever always free for immediate egress

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

  • 23-030 Full Size Interchangeable Core sold separately
  • Certified to ANSI/BHMA Grade 1 operational and security standards
  • UL listed for 3-hour fire door
  • Chassis: Zinc and steel components zinc dichromate plated for corrosion resistance
  • Accommodates 1-3/8" (35 mm) through 1-3/4" (44mm) doors without needing to be specified (self-adjustable)
  • Non-handed

codes

Brand

Finishes

613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze

Lock Function

Storeroom

Lever Design

ATH (Athens)

Cylinder Format

Full Size Interchangeable Core (FSIC)

Backset

2-3/4"

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Usage

Heavy Duty

ANSI/BHMA Standard

All PC Series comply with A156.2-2022, Series 4000 Grade 1 cylindrical locks

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Warranty

5 year limited mechanical warranty
