Schlage

Schlage ND66PD RHO (Rhodes) Store Lever Lock

$671.58
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ANSI Function F91 - Store Lock
  • ADA Compliant, Fire-Rated

Available Options:

Clear
Added to Cart

Product Overview

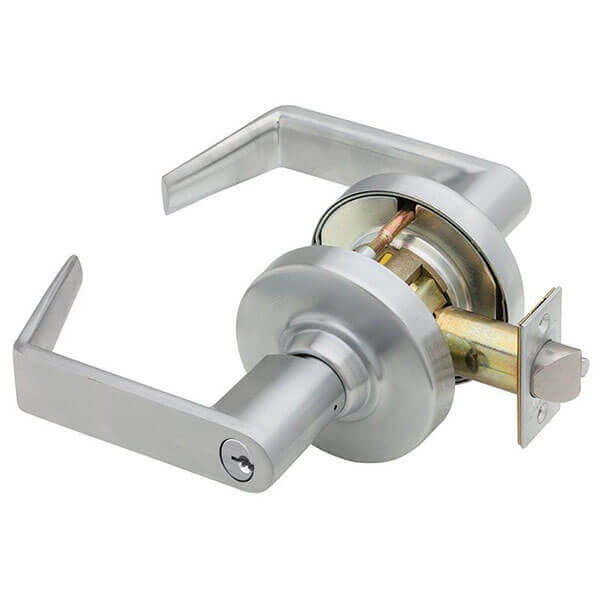

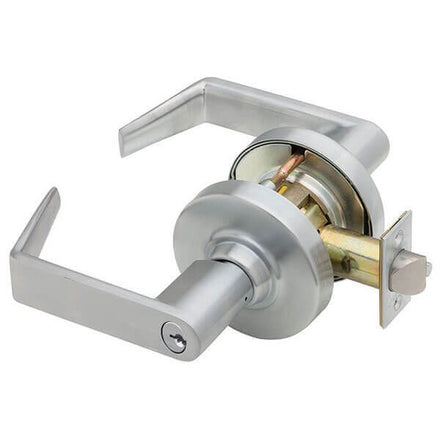

Schlage ND66PD Grade 1 Store Lock, Rhodes Lever, Standard Cylinder, Satin Chrome Finish

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

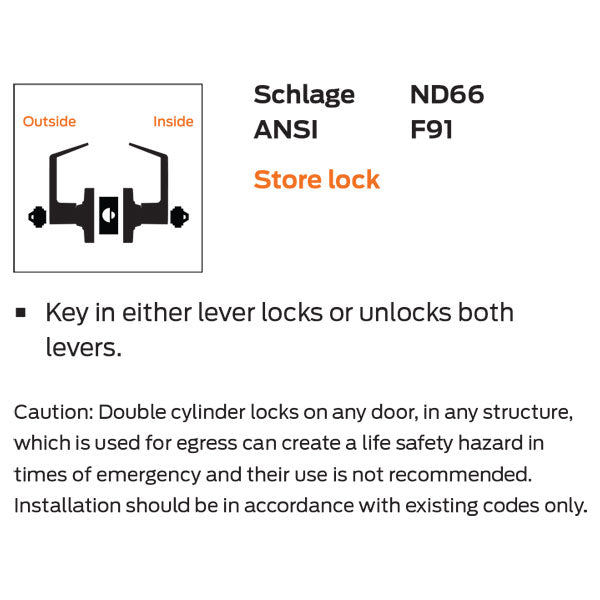

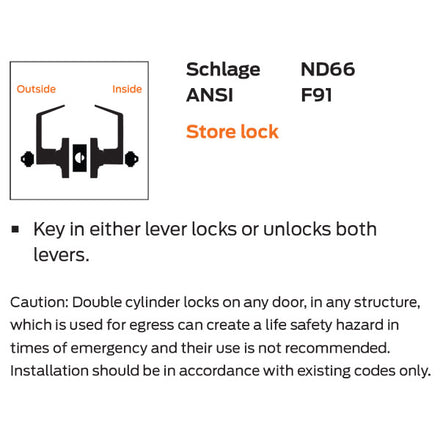

ND66 - Key in either lever locks or unlocks both levers.

Caution: Double cylinder locks on any door, in any structure, which is used for egress can create a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

Brand

Finishes

626 Satin Chrome

Lock Function

Store

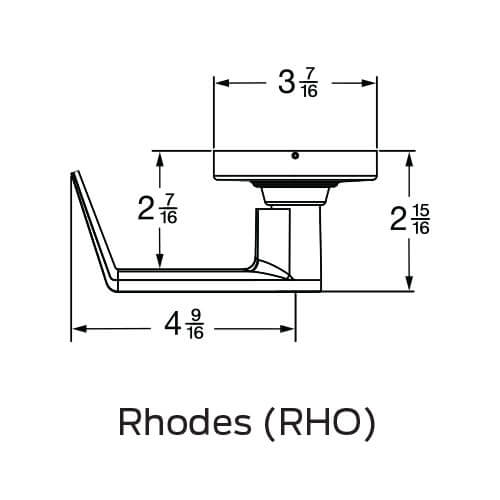

Lever Design

RHO (Rhodes)

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway, Schlage S123 Keyway

Usage

Heavy Duty

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front

Handing

Non-Handed

Backset

2-3/4"

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Door Thickness

1-3/4"

Warranty

10 Years
