Schlage

Schlage L9077P 06A Classroom Security Holdback Mortise Lock, 06 Lever, A Rose

$1,019.90
This item ships FREE! Usually Ships:  1-2 Business Days
  • Extra Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • Classroom Security Holdback, Double Cylinder
  • ADA Compliant, Fire-Rated

Available Options:

Clear

Product Overview

Schlage L9077P 06A 626 Grade 1 Classroom Security Holdback Mortise Lock, Conventional Cylinder, 06 Lever, A Rose, Satin Chrome Finish, Field Reversible

Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.

L Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

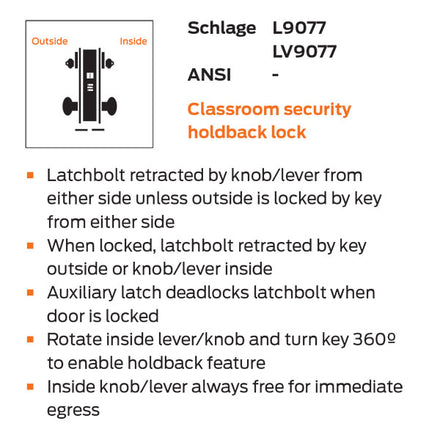

L9077 - Latchbolt retracted by knob/lever from either side unless outside is locked by key from either side. When locked, latchbolt retracted by key outside or knob/lever inside. Auxiliary latch deadlocks latchbolt when door is locked. Rotate inside lever/knob and turn key 360º to enable holdback feature. Inside knob/lever always free for immediate egress.

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • UL listed for 3-hour fire door
  • Meet ADA requirements

codes

Brand

Finishes

626 Satin Chrome

Lock Function

Classroom Security, Classroom Holdback

Lever Design

06A

Cylinder & Keys

(2) 30-001 cylinder, keyed different, with 2 keys

Keyway

Schlage C Keyway, Schlage S123 Keyway

Usage

Heavy Duty

ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1

Fire-Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Backset

2-3/4"

Strike

ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard

Case

Steel case and parts are corrosion resistant

Case Size

4-7⁄16" x 6-1⁄16" x 1"

Armored Front

1-1/4" x 8" x 7/32" standard

Handing

Field-reversible handing without opening lock case

Door Thickness

1-3/4"
