Schlage

Schlage B563P Classroom Deadbolt

$78.04
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.5 Grade 2 certified
  • Classroom function – ANSI E0172
  • 2-3/8" to 2-3/4" adjustable backset

Available Options:

Clear

Product Overview

Schlage B563P Grade 2 Classroom Deadbolt, Conventional Cylinder, Schlage C Keyway, Adjustable 2-3/8" and 2-3/4" Backset

The B560 deadbolt from Schlage is one of the toughest, most versatile deadbolts in the business. Designed by locksmiths for locksmiths, the B560 deadbolt fits virtually every door and enhances lock strength on the jamb side of the door, and will change forever the way you look at deadbolts.

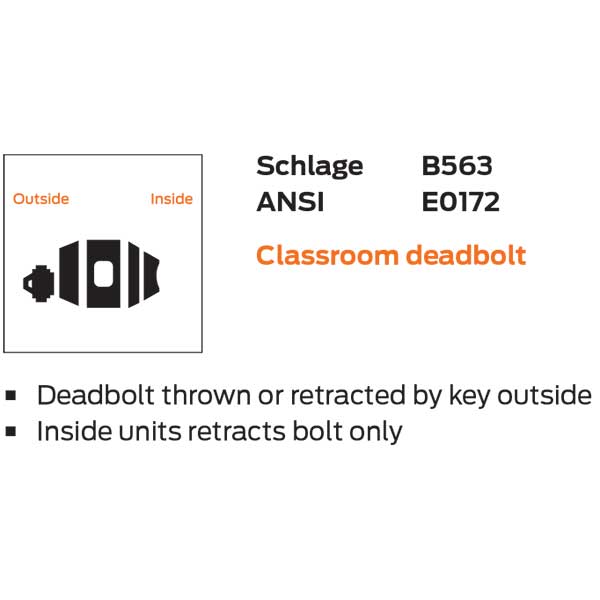

ANSI Function E0172: Deadbolt thrown only by key outside; retracted by key outside or thumbturn inside.

  • 2-3/8" to 2-3/4" Adjustable Backset (1-1/8" x 2-1/4" latch face)
  • Quick, easy installation - Adjustable backset locks into place
  • Anti-pry shield protects latch from attacks
  • Metal dust box provides deep anchoring and added strength
  • Primary or auxiliary locking for commercial buildings
  • High security locking for residential buildings
  • Can be suited with virtually all Schlage levers and knobs
Brand

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 612 Satin Bronze, 613 Oil Rubbed Bronze, 625 Bright Chrome, 643e Aged Bronze, 619 Satin Nickel, 609 Antique Brass

Deadbolt Type

Classroom

ANSI Function

E0172

ANSI/BHMA Standard

ANSI A156.36, Grade 2

ANSI Grade

ANSI Grade 2

Usage

Medium Duty

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate

Backset

2-3/8" to 2-3/4" Adjustable

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

None

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Thickness

1-3/8" to 1-3/4"
