Sargent

Sargent 60-KP-10XG77 Electronic Cylindrical Keypad Lock, LFIC Prep

$1,104.88
This item ships FREE! Usually Ships:  1-2 Business Days
  • All programming is done at the door using the keypad
  • Mechanical key override (LFIC permanent core sold separately)
  • Quick and easy installation

Available Options:

Clear

Product Overview

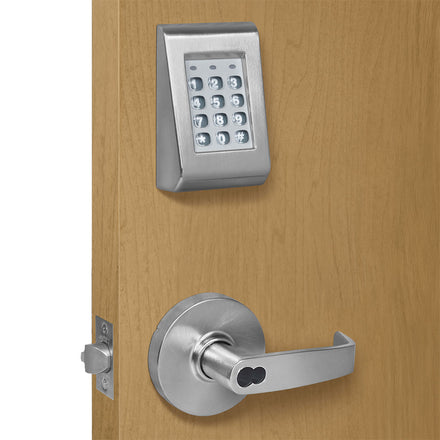

Sargent 60-KP-10XG77 Electronic Cylindrical Keypad Lock with Key Override, LFIC Prep, Disposable Construction Core Included, 26D Satin Chrome Finish

The KP-10X Line Keypad locks utilize an ANSI/BHMA Grade 1 bored lock and are designed for openings that require standalone, basic authorized entry capabilities. They are battery powered, motor driven, self contained locks that use a microprocessor based controller with non-volatile memory. All programming is done at the door using the keypad with functions selected by the user according to opening requirements and with the cylinder override feature, the keypad lock can be readily integrated into a new or existing master keyed system.

KP10XG77 ENTRY LOCK WITH CYLINDER: Lever inside always retracts latchbolt • Key outside retracts latchbolt • Outside lever rigid except when in passage mode or valid user code entered

Features

  • 60- Lock to accept (LFIC) Large Format Interchangeable Core (removable core) and provided with disposable plastic core; LFIC permanent core ordered separately
  • Certified ANSI/BHMA A156 2 Series 4000 - Grade 1
  • UL listed to USA and Canadian safety standards Listed for 3 hour doors (double doors require 41 - option)
  • EcoFlex® motor-driven 10X Line cylindrical lock
  • Latchbolt brass, 1/2" (13mm) throw; UL Listed 3/4" (19mm) throw (41- option) available
  • 2-3/4" (70mm) backset standard
  • Non handed
  • Heavy-duty lever spring return rose assembly
  • Steel spacer bushing and extended one-piece bearing sleeves
  • Steel mounting studs
  • Key override standard (LA Keyway - 0 or 1-bitted)
  • Includes code to activate horn when keypad buttons are pushed
  • Not available with 82-, F1-82, 83-, F1-83, or 84- options
  • For 1-3/4" (44mm) thick doors standard
  • Operating temperature for keypad: 4°F – 140°F
Brand

Finishes

US26D (626) Satin Chrome

Lever Design

L, B, P

Lock Function

Pushbutton Keypad

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156.2 Grade 1

Fire-Rating

Fire Rated - UL10C - Positive Pressure

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Cylinder Format

Full Size Interchangeable Core (FSIC)

Backset

2-3/4"

Door Thickness

1-3/4"

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Power

Operates with 4 “C” alkaline batteries (included)

Buy American Act Compliance

Meets Buy American Act - Made in USA
