Product Overview

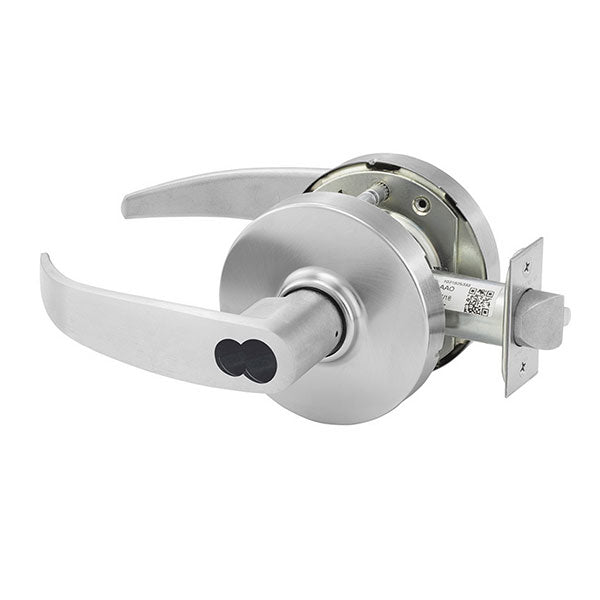

Sargent 60-10XG04 Grade-1 Cylindrical Lock, Storeroom or Closet Function, P Lever, L Rose, LFIC Prep, Disposable Construction Core Included
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces.
- 60- Lock to accept (LFIC) Large Format Interchangeable Core (removable core) and provided with disposable plastic core; LFIC permanent core ordered separately
- Provides maximum resistance to vandalism and other malicious attacks
- Certified above & beyond testing to withstand high volume traffic
- Exceeds ANSI/ BHMA Grade 1 standards - by as much as 20 times

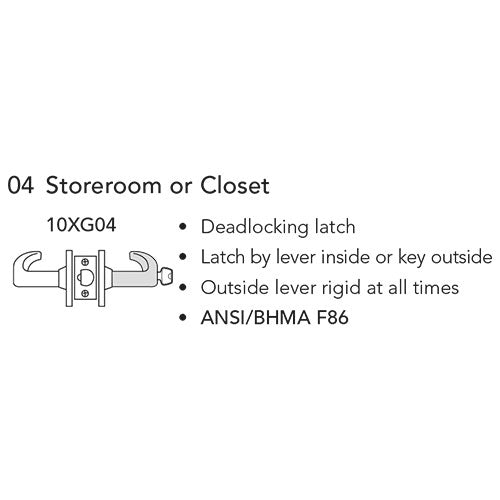

ANSI F86 Storeroom
- Deadlocking latch
- Latch by lever inside or key outside
- Outside lever rigid at all times
Applications
- Heavy-duty commercial and institutional interior and exterior doors
- Offices
- Schools/Universities
- Hospitals
- Manufacturing facilities
Models: 60-10XG04 LP 4, 60-10XG04 LP 10, 60-10XG04 LP 10BE, 60-10XG04 LP 26D, 60-10XG04 LP BSP
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome, US10 (612) Satin Bronze, US4 (606) Satin Brass, BSP - Black Suede Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent |
| Lock Function |
Storeroom |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Certified ANSI A156.2 Series 4000 — Grade 1 |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Fire-Rating |
Fire Rated - UL10C - Positive Pressure |
| Cylinder Format |
Full Size Interchangeable Core (FSIC) |
| Cylinder |
Lock to accept LFIC (removable core) and provided with disposable plastic core; LFIC permanent core ordered separately |

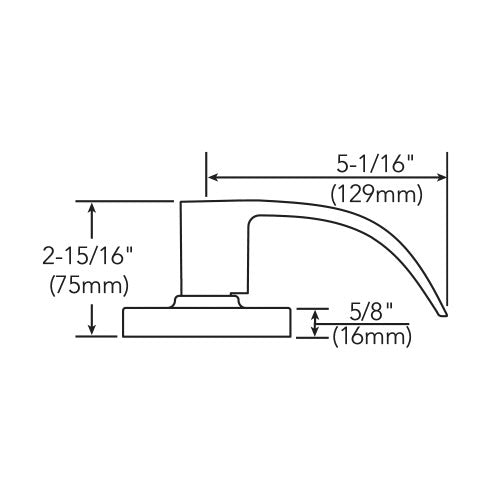

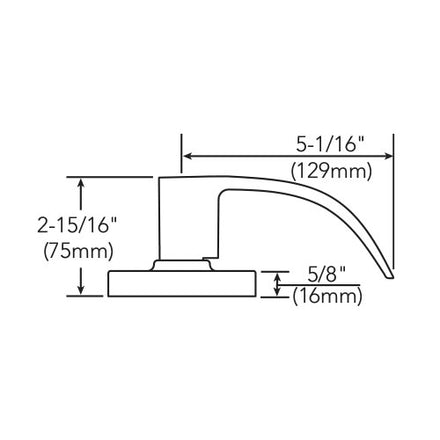

| Lever Design |
P |
| Rose Design |
L |
| Backset |
2-3/4" |
| Strike |
808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4" |
| Latch |
Stainless Steel Deadlocking/Guarded Latch - 1/2” throw, 1-1/8" x 2-1/4" face |
| Handing |
Non-Handed |
| Door Thickness |
1-3/4" to 2" |
| Minimum Stile Width |
4-1/2" |
| Warranty |
10 Year Limited |
