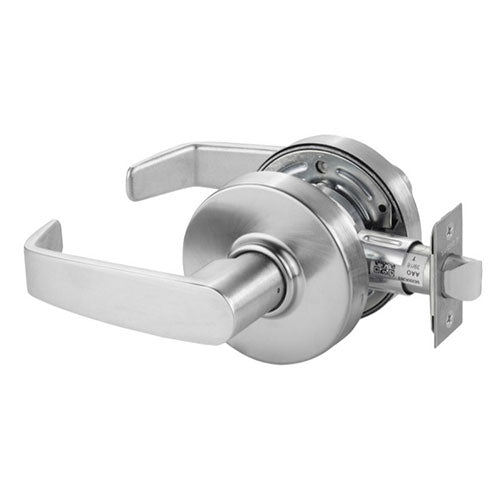

Sargent 28-7U15-LL Passage Lever Set

$180.95

Usually Ships: 1-2 Business Days

ANSI/BHMA Certified Grade 2
ADA Compliant, 3 Hour Fire-Rated
ANSI F75 Passage Function

Available Options:

Clear

Finish

Quantity:

Added to Cart

Sargent 28-7U15 Grade-2 Cylindrical Lock, Passage Function, L Lever, L Rose

Best Overall Lock in the Grade 2 Class - The 7 Line is designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels, and government facilities.

Cycle Test exceeds ANSI/BHMA A156.2 Grade 2 requirements
Fits modified 161 door preps, installs in 1 minute or less
Internal through-bolts supply strength and stability without requiring additional door preparation
28 Option: 4-7/8" curved lip strike

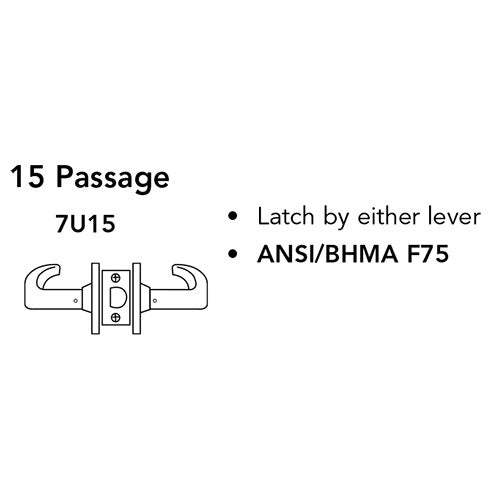

ANSI F75 Passage

Latch by either lever

Applications

Standard duty commercial interior & exterior doors
Offices
Commercial interiors
Medical clinics
Government facilities
Public buildings

codes

Brand	Sargent
Finishes	US26D (626) Satin Chrome, US10B (613) Oil Rubbed Bronze, US3 (605) Bright Brass, US4 (606) Satin Brass, BSP - Black Suede Powder Coat
Lock Function	Passage
Usage	Medium Duty
ANSI/BHMA Standard	Certified A156.2 Series 4000, Grade 2
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Fire-Rating	Fire Rated - UL10C - Positive Pressure

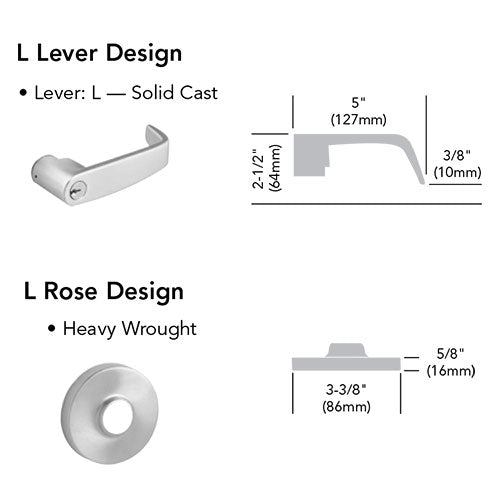

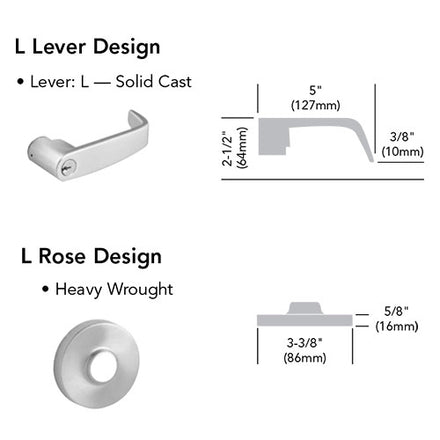

Lever Design	L
Rose Design	L
Backset	2-3/4"
Strike	808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4"
Latch	Unguarded/Plain Latch, 1/2" throw – 1-1/8" x 2-1/4" face
Handing	Non-Handed
Door Thickness	1-3/4"
Minimum Stile Width	4-1/2"
Warranty	5 Year
