Sargent

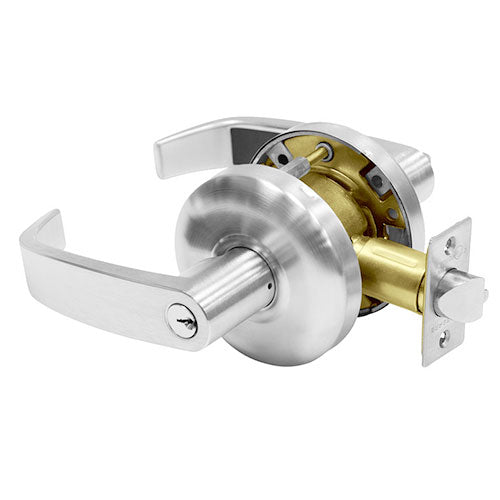

Sargent 28-65G04-KL Storeroom Lever Lock

$244.95
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified Grade 2
  • ADA Compliant, 3 Hour Fire-Rated
  • ANSI F86 Storeroom Function

Available Options:

Clear
Added to Cart

Product Overview

Sargent 28-65G04 Grade-2 Cylindrical Lock, Storeroom or Closet Function, L Lever, K Rose

Designed for increased usability, the 6500 Line standard duty key-in-lever lock exceeds ANSI/BHMA Grade 2 standards.

  • Exceeds ANSI/BHMA A156.2 Grade 2 requirements
  • 28 Option: 4-7/8" curved lip strike

ANSI F86 Storeroom or Closet

  • Deadlocking latch
  • Latch by lever inside or key outside
  • Outside lever rigid at all times

Applications

  • Standard duty commercial doors
  • Offices
  • Public buildings

codes

Brand

Finishes

US26D (626) Satin Chrome, US3 (605) Bright Brass, US4 (606) Satin Brass, BSP Black Suede Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent

Lock Function

Storeroom

Usage

Medium Duty

ANSI/BHMA Standard

Certified A156.2 Series 4000, Grade 2

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

Fire Rated - UL10C - Positive Pressure

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Sargent LA Keyway

Lever Design

L

Rose Design

K

Backset

2-3/4"

Strike

808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4"

Latch

Deadlocking/Guarded Latch – 1/2” throw, 1-1/8" x 2-1/4" face

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"
