Product Overview

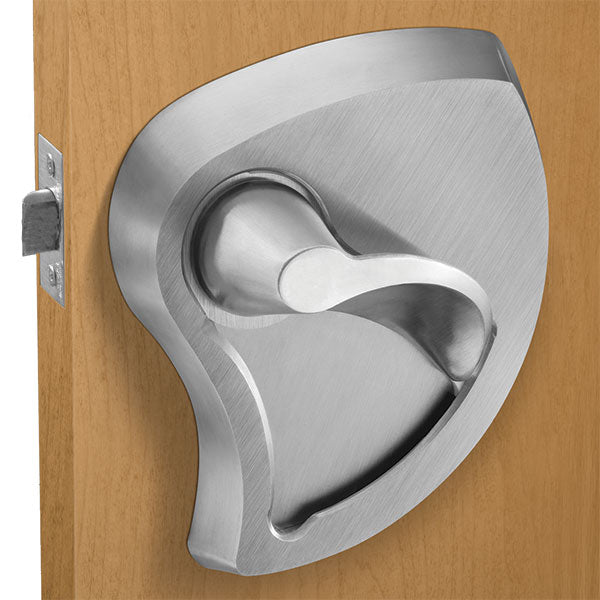

Sargent 10XU15 BHW 32D Grade 1 Heavy Duty Passage Cylindrical Lock, Ligature Resistant Trim, Satin Stainless Steel Finish
SARGENT’s BHW trim for the 10X Line bored lock provides a ligature resistant feature without the expense of new doors. Plus, the streamlined look and feel of the BHW trim combines aesthetics and performance, contributing to a normative, therapeutic environment of care.

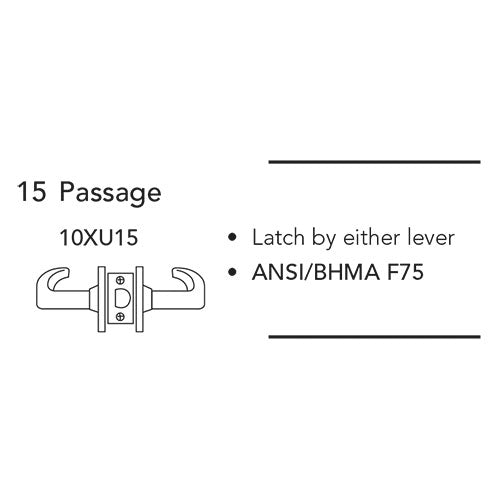

ANSI Function F75 – Latch by either lever.
Features
- Recognized by New York State Office of Mental Health (NYS-OMH) for use in high risk areas*
- Aesthetic design with integrated lever and escutcheon
- Uses the ANSI/BHMA Grade 1 10X Line bored lock
- Satin stainless Steel finish (32D) standard
- Supplied standard with Torx® security screws
Benefits
- Strong and durable: lock exceeds ANSI/BHMA Grade 1 requirements to withstand abusive environments
- Versatile: can be used on many opening types including high, medium and low risk
- Beautiful: tapered surfaces complement modern design environments
- Cost effective: Bored lock configurations require a lower investment than comparable mortise lock variations
- Easy to use: intuitive operation of lever provides easy access for staff and patients
- Minimizes risk: helps contribute to patient safety with integrated trim design
Applications
- Behavioral Health Units
- Patient Room Doors
- De-escalation Rooms
- Psychiatric Facilities
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel |
| Lock Function |
Passage |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Certified ANSI A156.2 Series 4000 — Grade 1 |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Fire-Rating |
Fire Rated - UL10C - Positive Pressure |

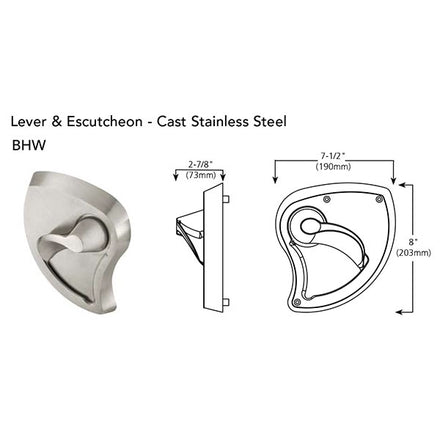

| Lever Design |
BHW |
| Backset |
2-3/4" |
| Strike |
808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4" |
| Latch |
Stainless Steel Unguarded/Plain Latch, 1/2" throw – 1-1/8" x 2-1/4" face |
| Handing |
Completely Reversible |
| Door Thickness |
1-3/4" to 2" |
| Warranty |
10 Year Limited |
