Rockwood LT-B1 Vision Lite Kit Pack with Galvannealed OptiCoat Frame and 3/16″ Clear FireLite® NT Fire-Rated Safety Glass, 90-Minute Rated

$220.26
Usually Ships:  20-30 Business Days
  • Complete Lite Kit = Steel Frame, Glass & Glazing Tape
  • Includes ‘Clear’ FireLite® NT Ceramic Glass
  • High-end finishes that mimic the natural beauty of wood or marble

Available Options:

Clear

Product Overview

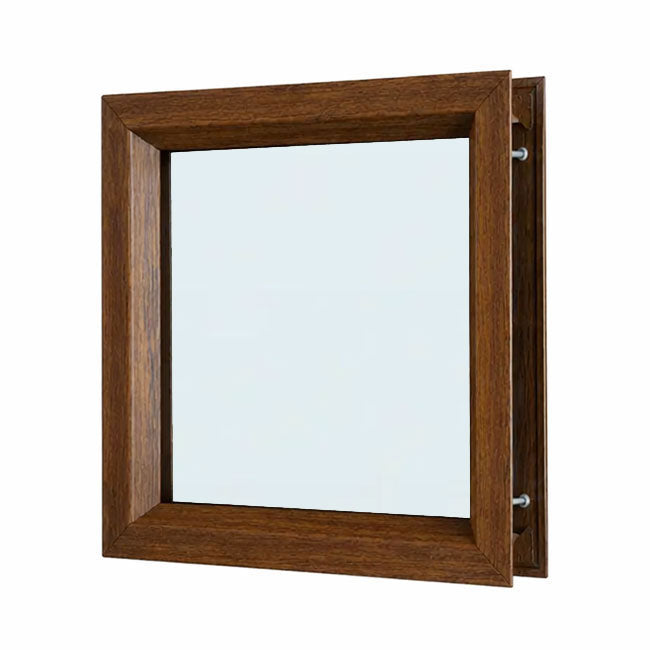

Rockwood LT-B1 Complete Lite Kit Pack - Beveled Lite Frame, 3/16" TGP FireLite® NT Fire-Protection-Rated and Impact-Safety-Rated Glass, and Glazing Tape - for 1-3/4" Thick Doors, Galvannealed Steel Frame, OptiCoat Sublimation Finish

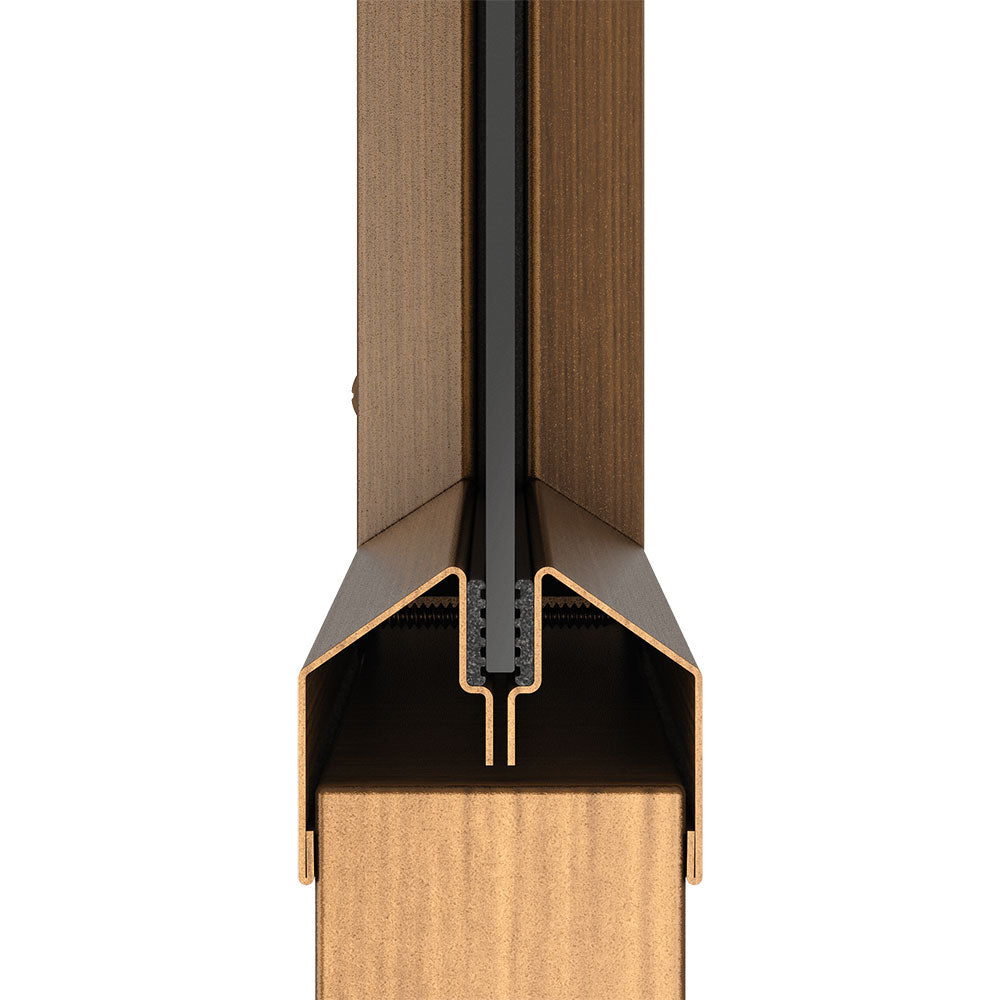

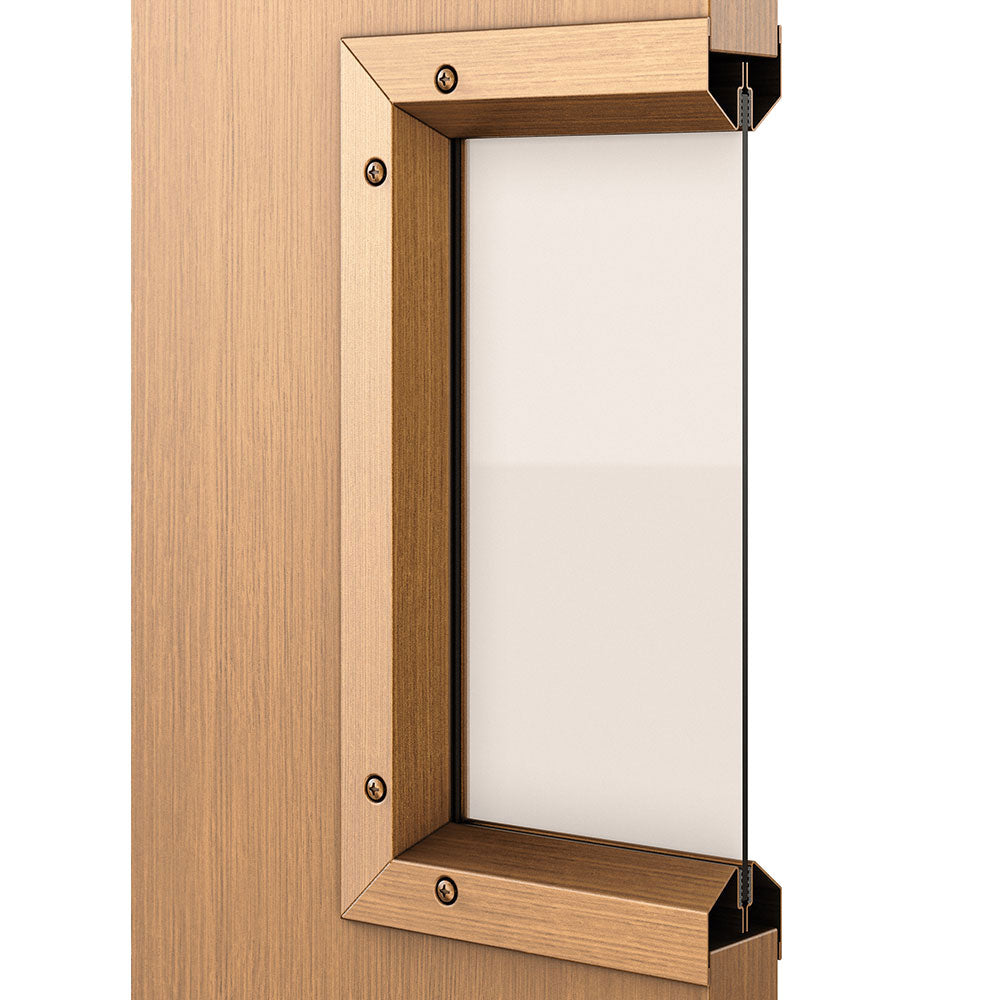

For use with glazing material with wood or metal doors. The lite kits install without drilling holes through the door for quick installation. The hemmed design is a flush-mounted assembly and is ideal for clean environments.

Rockwood's OptiCoat™ finishes transform ordinary metals into stunning, high-end finishes that replicate the elegance of natural wood and marble. Suitable for door pulls, lite kits, protection plates, and more, these new offerings deliver luxury that lasts.

OptiCoat™ sublimation finish technology is revolutionizing aesthetics by transforming ordinary metals into stunning, high-end finishes that mimic the natural beauty of wood or marble. Through an advanced sublimation process, OptiCoat infuses realistic textures and patterns into metal surfaces, creating finishes that are not only visually striking but also incredibly durable.

OptiCoat is ideal for elevating projects where every detail matters, including upscale hotels, offices, and multi-family spaces. With 13 readily available finish options, plus custom capabilities, matching opening hardware to the overall style of your facility has never been easier.

  • High-end finishes that mimic the natural beauty of wood or marble
  • 12 wood finishes and 1 marble finish offered
  • Not highly flammable like wood (made from steel)
  • High scratch resistance
  • High corrosion resistance
  • High UV resistance
  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Includes
  • Glass is permanently etched with UL Classification

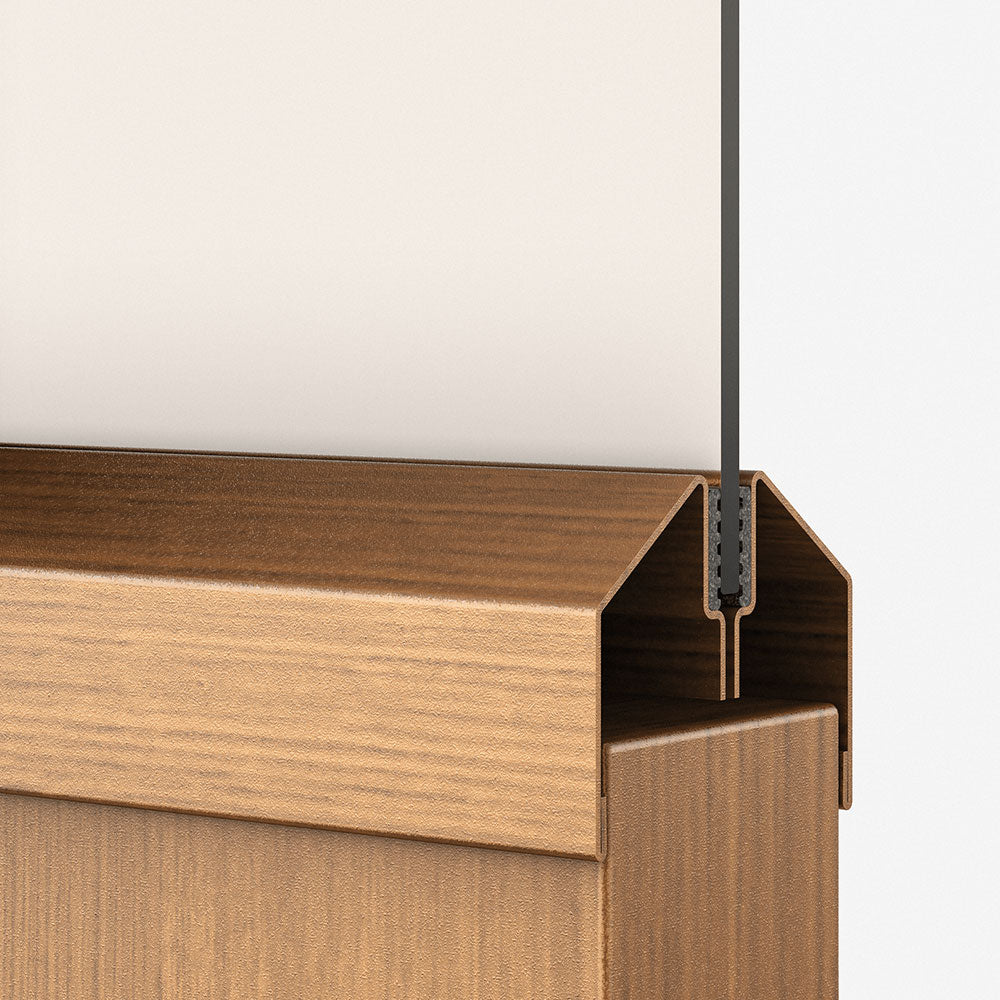

  • Closed-cell glazing tape included with every kit
  • Frame is embossed with UL Label (90 Minute Rated)
  • Classified in accordance with UBC code standard 7-2 for positive pressure

made-in-usa

firelite-banner

*Please refer to IBC code Chapter 7 (International Building Code) for fire-rated glass requirements and limitations. Door frame, door, and hardware must also be fire-rated. Fire-rating requirements must match the glazing requirements in order for the assembly to fully meet code requirements. Please refer to the manufacturers' specifications. Please Consult with your door and frame manufacturer’s procedures, for their maximum glass size tested. Interpretation of building and fire codes may vary. Consult with the local authority having jurisdiction to determine appropriate standards in your area. Trudoor assumes no liability or responsibility for any damage to person or property resulting from or incident to the use of the products that we provide. Trudoor assumes no liability or responsibility for misspecified and/or misordered materials. Glass is cut to order and non-returnable or refundable.

Note: Per NFPA 80 (National Fire Protection Association), field cutting of doors for vision panels or enlarging existing cutouts for vision panels is considered to be a field modification that is NOT allowed.

Trudoor is certified by UL to cut, re-certify and label fire-rated glazing materials. Our facility undergoes routine inspections to verify that modifications are done in compliance with the requirements of the UL specification listings. All material is tested in accordance with NFPA codes and standards. UL file number: R39507

FireLiteNT is a registered trademark of Technical Glass Products, Inc.

OptiCoat vision lite kits are made to order and are non-returnable.

Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Finishes

ACS - Auburn Cherry OptiCoat, AOS - Amber Oak OptiCoat, BCS - Burnt Sienna Cherry OptiCoat, BOS - Blonde Oak OptiCoat, CPS - Casselman Pine Opticoat, EWS - Espresso Walnut OptiCoat, MCS - Maple Cherry OptiCoat, SCS - Sunrise Cherry OptiCoat, SOS - Scarlett Oak OptiCoat, SPS - Somerset Pine OptiCoat, TOS - Tangerine Oak OptiCoat, TWS - Toasted Walnut OptiCoat, WMS - White Marble OptiCoat

Order Size

12" x 12", 5" x 35", 6" x 27", 7" x 22", 8" x 32", 24" x 30", 24" x 32"

Frame Profile

Low

Frame Construction

20 Gauge Galvannealed Steel

Frame Fire-Rating

Classified in accordance with UBC code standard 7-2 for positive pressure, 90 Minute Fire Rating

Frame Fasteners

#8 x 1-3/4" Phillips head SMS

Door Thickness

1-3/4"

Glass Type

Clear Fire-Rated Glass

Glass Thickness

3/16"

Glass Appearance

Clear, Free of Amber Tint

Glass Light Transmission

Approx. 88%

Glass Fire-Rating

20 to 90 Minutes with Hose Stream - UL Listed

Glass Approvals

UL 9, UL 10B, UL 10C, NFPA 80, NFPA 252, NFPA 257, ASTM E2074, ASTM E2010-01, CPSC ANSI Z97.1, ULC CAN4-S104 ,ULC CAN4-S106

Glass Impact Safety Rating

ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II

Glass Fabricated

Trudoor - Phoenix, AZ - USA
