Rockwood 556WS Windstorm Lever Extension Flush Bolt

$49.02
Usually Ships:  1-2 Business Days
  • Approved for use in the State of Florida
  • UL Listed up to 3 hours (fire-rated)
  • 1 ea. per box (add 2 for a pair)

Available Options:

Clear

Product Overview

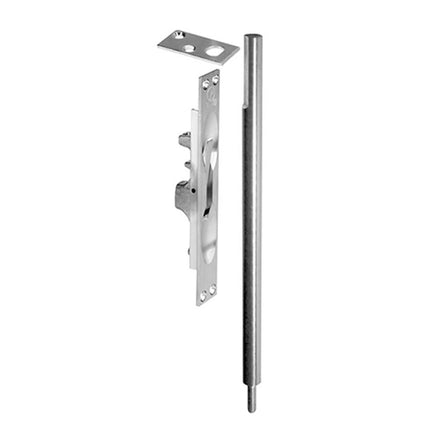

Rockwood 556WS Windstorm Lever Extension Flush Bolt

The 556WS Windstorm Lever Extension Flush Bolt is part of a UL certified assembly that is listed for use on both in-swing or out-swing paired applications. The full assembly, which includes doors and latching hardware from other ASSA ABLOY brands, is approved for use in the state of Florida including the High Velocity Hurricane Zone (HVHZ).

  • ¾" rod backset
  • 12" Stainless Steel Rod Length (Center of Face to Bolt End- Retracted)

Specifications

  • Base Material: Brass, Stainless Steel
  • Fastener: 8 ea. #8 - 32 x 1/4" FH MS
  • Weight: 1.25lbs.
  • Body Depth: 1"
  • Body Height: 5 1/4"
  • Body Width: 1 3/8"
  • Bolt Throw: 3/4"
  • Rod Length: 12"
Brand

Finishes

US26D (626) Satin Chrome

Fasteners

8 ea. #8-32 x 1/4" Flat Head Machine Screws in Stainless Steel

ANSI/BHMA Standard

Meets ANSI A156.16, L04251

Fire-Rating

Fire Rated up to and Including 3 Hours

Certifications

UL Certified, Assembly Approved for Use in the State of Florida, Including the High Velocity Hurricane Zone (HVHZ)
