Rixson

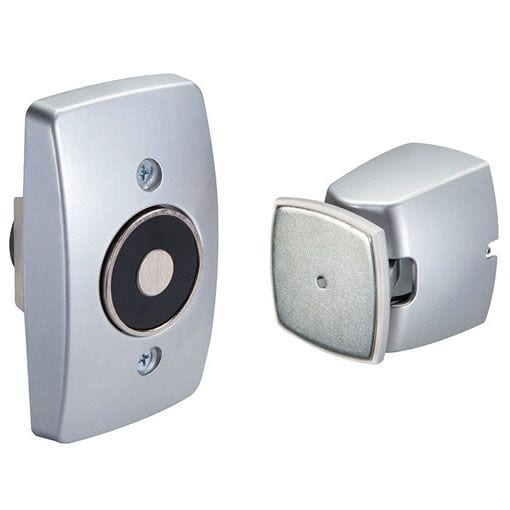

Rixson 998M Wall Mounted Electromagnetic Door Holder/Release

$305.97
This item ships FREE! Usually Ships:  1-2 Business Days
  • Used to hold open fire doors (must be connected to fire alarm)
  • Concealed wiring (requires outlet box)
  • Wall mount

Available Options:

Clear

Product Overview

Electromagnetic door holder/releases are designed for virtually any remote door release applications. They must be used in conjunction with closing devices.

• Fire/smoke barrier doors
– Door releases when tripped by an alarm or smoke detector
• Private offices
– Door releases when triggered by a remote switch

  • Total Projection: 3-5/8" (92mm)
  • Mounting Requirements: 2" x 4" x 1-3/4" (51 x 102 x 45mm) outlet box
  • Wall must be properly reinforced and outlet box adequately fastened

Voltage and Current:
120VAC, 60Hz., .020 amp
24VAC/DC, 60Hz., .020 amp
12VDC, .040 amp

Brand

Finishes

690 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated), BSP Black Suede Powder Coat

ANSI/BHMA Standard

ANSI/C00011

Fire-Rating

UL listed for metal smoke barrier or labeled fire doors
