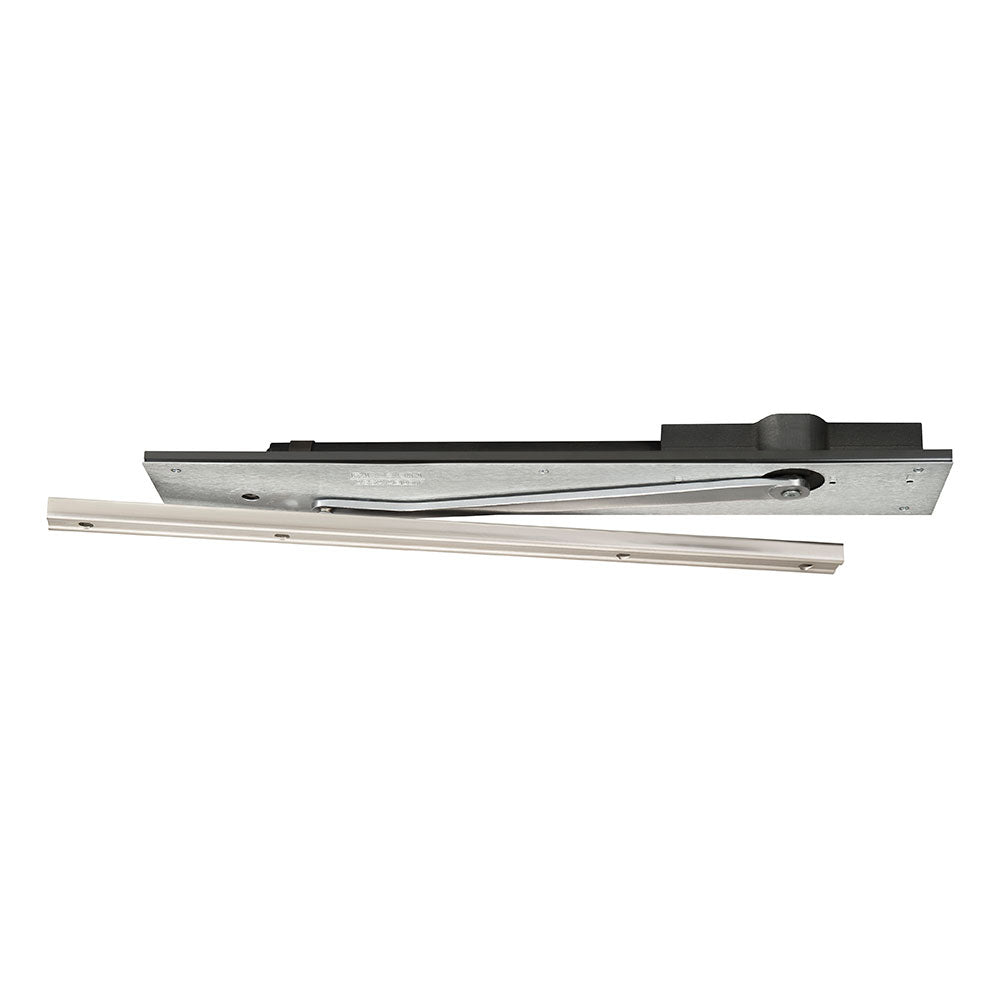

Rixson 91N Overhead Concealed Closer, Offset Hung

$1,058.96
Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI Grade-1 Certified
  • Designed for interior or exterior doors weighing up to 250lbs.
  • Can be used in aluminum, hollow metal, or wood frames

Available Options:

Clear

Product Overview

Rixson 91N Overhead Concealed Closer, Offset Hung, Door Weight up to 250 lbs., Non-Hold Open

The 91 overhead concealed closer is an offset-hung closer designed for interior or exterior doors weighing up to 250lbs. with aluminum, hollow metal, or wood frames.

Application

  • Exterior or interior doors
  • Door weight up to 250 lbs.
  • Maximum door size: exterior 4' x 8', interior 4'6" x 8'
  • Can be used in aluminum, hollow metal or wood frames

Features

  • Single acting, offset hung
  • Heavy-duty cast iron closer body
  • Forged arms
  • Steel alloy track
  • One-piece mounting plate
  • Includes security track designed to eject foreign materials used to prevent a door from closing
  • 1-1/4" piston diameter
  • Dress cover plate included Adjustable spring 3-6 for larger doors or fire rated openings
  • A separate auxiliary door stop, supplied by others, is strongly recommended to avoid damage to door closer and adjacent property.
  • Handed
  • Staked, brass adjusting valves
  • Product shipped with all wood and all metal screws
  • Separate and independent closing speed and latch speed valves
  • Separate and independent hydraulic backcheck valve
  • All weather fluid (accommodates a temperature range from - 40° to 150°F.)
  • Hanging means by others. If products other than 3/4" offset pivots or 4-1/2" x 4-1/2" butt hinges are used, contact factory for special templating and pricing
  • Minimum metal frame size 1-3/4" x 4"
  • Direct replacement for LCN 2030
  • 15 year limited warranty

made-in-usa

Brand

Finishes

689 Aluminum (Powder Coated), 613e Dark Oxidized Satin Bronze equivalent, BSP - Black Suede Powder Coat, US26D (626) Satin Chrome

Usage

Heavy Duty

ANSI/BHMA Standard

Grade 1 - ANSI A156.4

Fire-Rating

UL and CL listed

Body Construction

Cast Iron Body

Handing

Handed – LH, RH

Fluid

All Weather Fluid

Fasteners

Wood and Machine Screws (WMS)

Door Thickness

1-3/4" minimum

Warranty

15 Years

Buy American Act Compliance

Meets Buy American Act - Made in USA
