Reese S487_V Latching Panic Saddle Threshold with Vinyl Insert - 5" Wide x 7/8" High

$45.80
Usually Ships:  3-5 Business Days
  • 5″ Wide x 7/8″ High
  • Includes vinyl seal
  • Fire-Rated up to 3 Hours

Available Options:

Clear

Product Overview

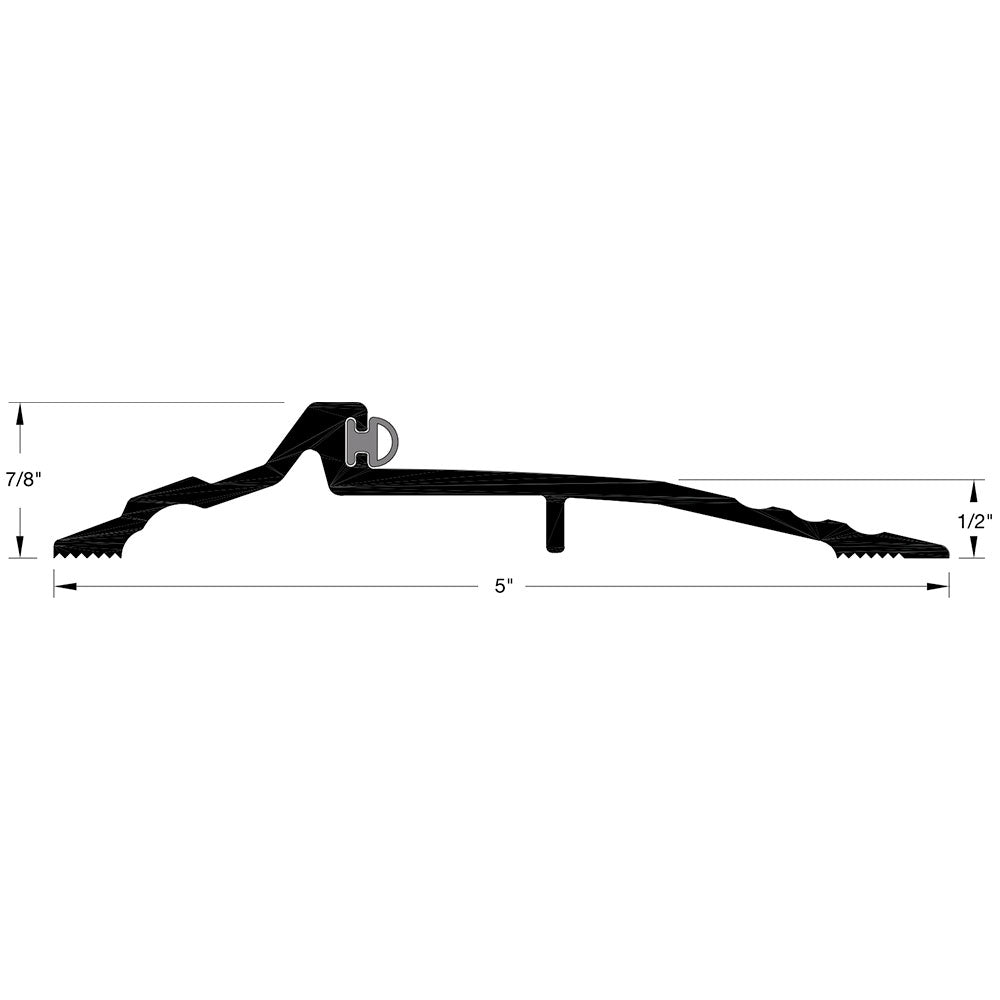

Reese S487_V Latching Panic Saddle Threshold with Vinyl Insert, 7/8" H x 5" W

Designed to protect against sound, air infiltration, wind, and dust and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal.

  • Made from Aluminum alloy 6063, T5 temper
  • Vinyl seal
  • 5" wide x 7/8" tall
  • #10 x 1-1/2” wood screws provided

Fire-Rated: UL Classified per UL10B, CAN/ULC-S104, UL10C for use on listed steel frames and/or classified hollow metal and steel covered composite type fire doors rated 3 hours, wood composite to 1-1/2 hours, wood core type rated 20 min without hose stream.

Brand

Finishes

Mill Finish Aluminum, Dark Bronze Anodized Aluminum

Length

36", 48", 72", 96"

Width

5"

Height

7/8"

Fasteners

#10 x 1-1/2" Zinc plated steel Philips flat head wood screws

Fire-Rating

Fire rated-UL10c

Buy American Act Compliance

Meets Buy American Act - Made in USA
