Product Overview
Pemko 29324_NB (MS) Split Astragal with Concealed Fasteners
Brush meeting stile astragals are used to seal the gap between pairs of doors (screwed onto the surface of each door). Typically used on pairs with vertical rod exit devices and/or push/pull setups.
This meeting stile is supplied with a Nylon Brush ("NB") insert

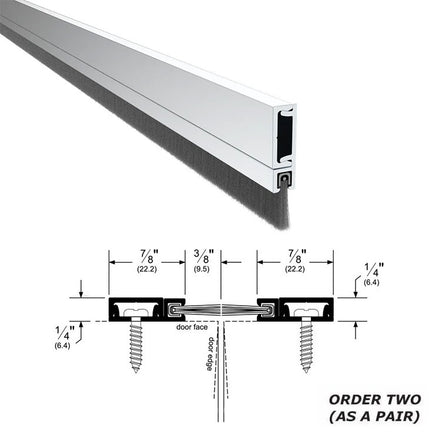

- PROFILE WIDTH: 7/8” (22.2 mm) (x2)
- TOTAL WIDTH WITH INSERT: 1-1/4” (31.7 mm) (x2)
- HEIGHT: 1/4” (6.4 mm)
Note: brush should mesh from 1/32" to 1/16"
Finishes
- 29324CNB: C - Clear Anodized Aluminum with Nylon Brush insert
- 29324BSPNB: BSP - Black Suede Powder Coat Aluminum with Nylon Brush insert
- 29324DNB: D - Dark Bronze Anodized Aluminum with Nylon Brush insert
Ratings
- BHMA Certified
- Air Infiltration Tested
- Smoke Tested - UL1784
- Fire Rated - UL10C - Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
| Brand | |
|---|---|
| Finishes |
BSP Black Suede Powder Coat, C – Clear Anodized Aluminum, D - Dark Bronze Anodized Aluminum |
| Length |
84", 96" |
| Fire-Rating |
Fire Rated – UL10C – Positive Pressure |
