PDQ SD182 Entry Lever Lock

$70.38

Usually Ships: 2-3 Business Days

ANSI/BHMA A156.2 Grade 2 certified
ANSI function: F82, entry
ADA compliant, 3-hour fire-rated

Available Options:

Clear

Finish
Lever Design

Quantity:

Added to Cart

PDQ SD182 Lever Lockset, Entry Function, Grade-2, 2-3/4" Backset, ASA Strike, Schlage C Keyway

PDQ’s SD Series Grade 2 Cylindrical Lock has been value-engineered to meet your quality and cost expectations! Backed by a reassuring 5-year warranty, you can put your trust in the reliability and performance of this lock.

ANSI Function F82 – Latchbolt operated by lever from either side or key in outside lever. Outside lever locked by push button on inside. Outside lever unlocked by key from outside, and rotating inside lever.

Heavy-gauge cold-rolled steel locking mechanism - Dichromate for corrosion resistance.
Removable thru-bolts

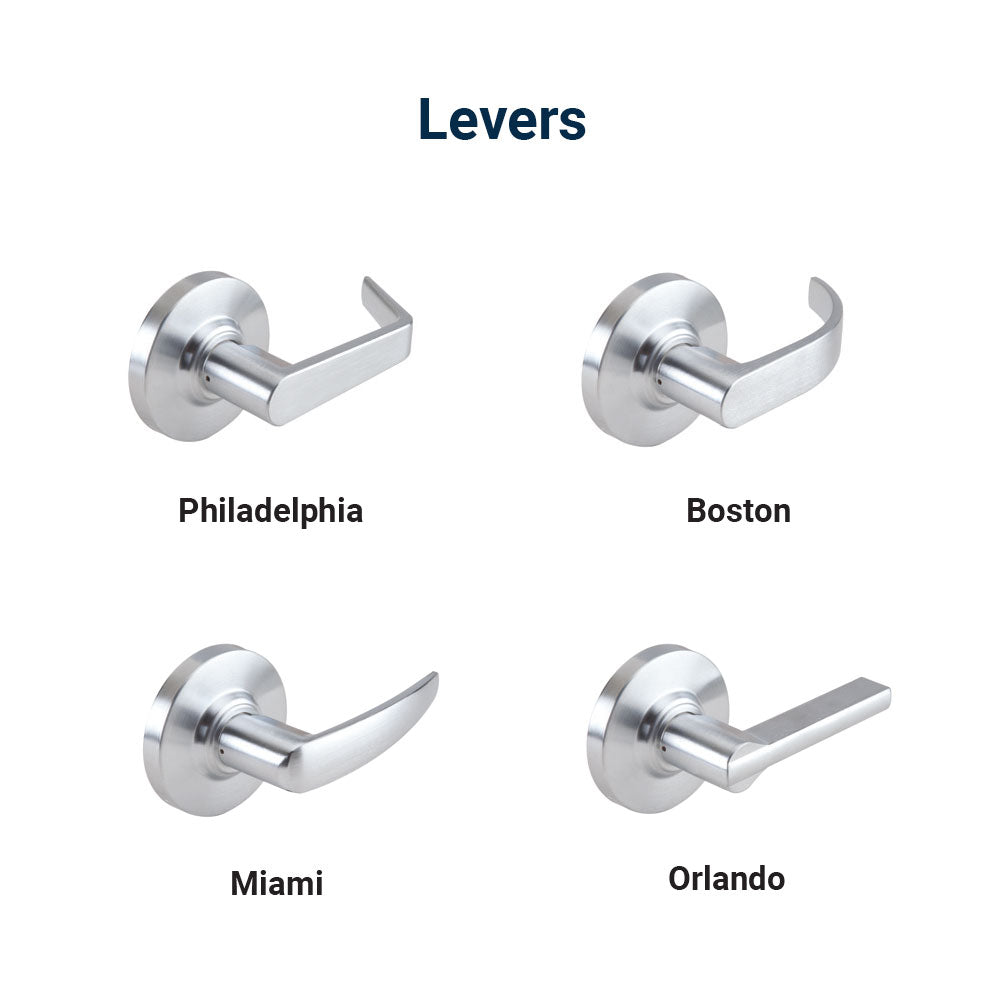

*4-Lever Styles: PHL (Philadelphia), BSN (Boston), MIA (Miami), ORL (Orlando)
*3-Finishes: 613E(US10BE), 622(US19), 626(US26D)
UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
Certified to ANSI/BHMA A156.2 Grade 2
Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

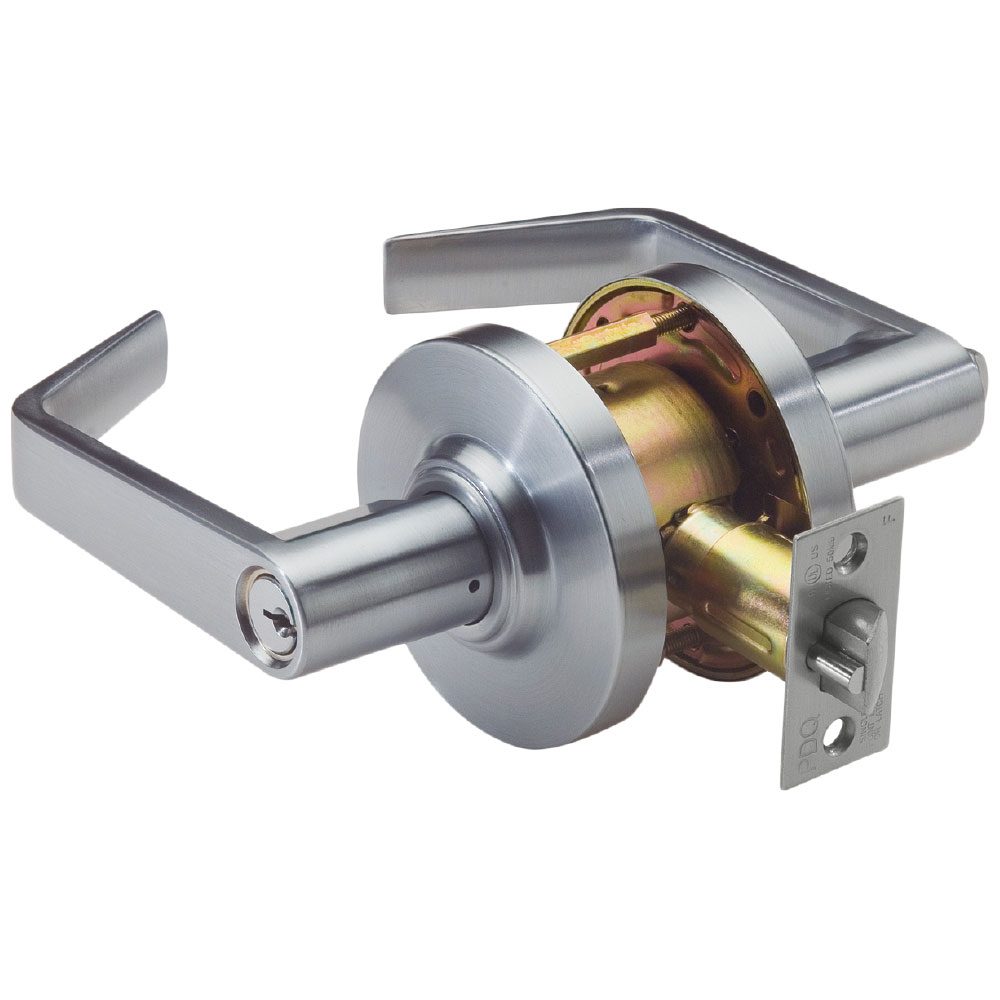

* PHL (Philadelphia) Lever Design in 626 Finish Shown

sd_certs

Brand	PDQ
Finishes	626 Satin Chrome, 613e Dark Oxidized Satin Bronze equivalent, 622 Flat Black
Lever Design	PHL (Philadelphia), BSN (Boston), MIA (Miami), ORL (Orlando)
Rose Diameter	3-3/8” DIA Wrought
Usage	Medium Duty
Lock Function	Entry (Entrance)
Cylinder & Keys	5-pin or 6-pin conventional, keyed different, with 2 keys
Keyway	Schlage C Keyway
ANSI/BHMA Standard	Certified to ANSI/BHMA A156.2 Grade 2
Fire-Rating	UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Backset	2-3/4"
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing	Non Handed – Completely Reversible
Latch	1/2" throw - 1-1/8" x 2-1/4" face
Warranty	5 Year
