PDQ

PDQ SD176 Privacy Lever Lock

$64.26
Usually Ships:  2-3 Business Days
  • ANSI/BHMA A156.2 Grade 2 certified
  • ANSI function: F76, privacy
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

PDQ SD176 Lever Lockset, Privacy, Bedroom, Bathroom Function, Grade-2, 2-3/4" Backset, ASA Strike

PDQ’s SD Series Grade 2 Cylindrical Lock has been value-engineered to meet your quality and cost expectations! Backed by a reassuring 5-year warranty, you can put your trust in the reliability and performance of this lock.

ANSI Function F76 – Latchbolt operated by lever from either side or emergency release in outside lever. Outside lever locked by push button on inside. Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door.

  • Heavy-gauge cold-rolled steel locking mechanism - Dichromate for corrosion resistance.
  • Removable thru-bolts

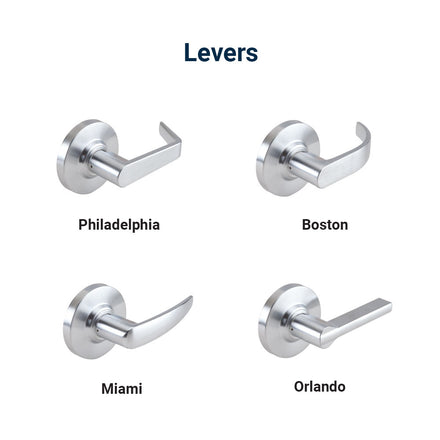

  • *4-Lever Styles: PHL (Philadelphia), BSN (Boston), MIA (Miami), ORL (Orlando)
  • *3-Finishes: 613E(US10BE), 622(US19), 626(US26D)
  • UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
  • Certified to ANSI/BHMA A156.2 Grade 2
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

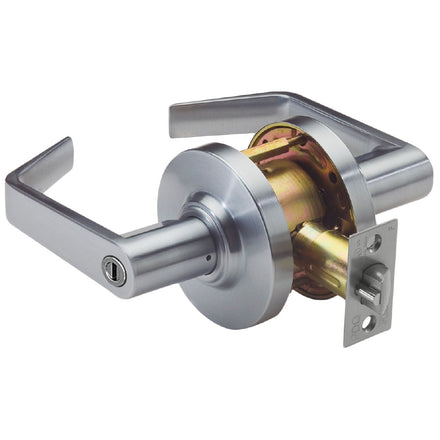

* PHL (Philadelphia) Lever Design in 626 Finish Shown

sd_certs

Brand

Finishes

626 Satin Chrome, 622 Flat Black, 613e Dark Oxidized Satin Bronze equivalent

Lever Design

PHL (Philadelphia), BSN (Boston), MIA (Miami), ORL (Orlando)

Rose Diameter

3-3/8” DIA Wrought

Usage

Medium Duty

Lock Function

Privacy

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.2 Grade 2

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non Handed – Completely Reversible

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Warranty

5 Year
