PDQ SD115 Storeroom Lever Lock

$70.38

Usually Ships: 2-3 Business Days

ANSI/BHMA A156.2 Grade 2 certified
ANSI function: F86, storeroom
ADA compliant, 3-hour fire-rated

Available Options:

Clear

Finish
Lever Design

Quantity:

Added to Cart

PDQ SD1115 Lever Lockset, Storeroom Function, Grade-2, 2-3/4" Backset, ASA Strike, Schlage C Keyway

PDQ’s SD Series Grade 2 Cylindrical Lock has been value-engineered to meet your quality and cost expectations! Backed by a reassuring 5-year warranty, you can put your trust in the reliability and performance of this lock.

ANSI Function F86 – Latchbolt operated from outside by key, inside by lever. Outside lever always fixed. Inside lever always free. Deadlocking (guarded) latchbolt.

Heavy-gauge cold-rolled steel locking mechanism - Dichromate for corrosion resistance.
Removable thru-bolts

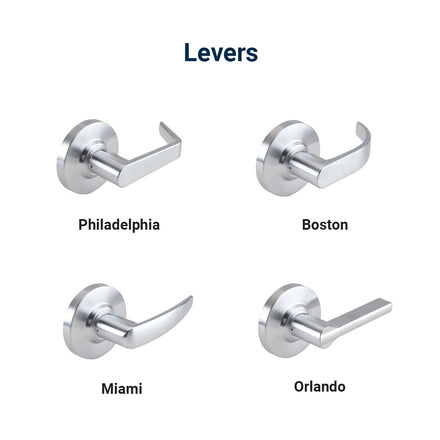

*4-Lever Styles: PHL (Philadelphia), BSN (Boston), MIA (Miami), ORL (Orlando)
*3-Finishes: 613E(US10BE), 622(US19), 626(US26D)
UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
Certified to ANSI/BHMA A156.2 Grade 2
Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

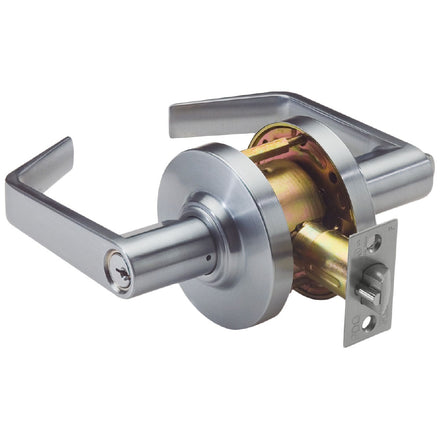

* PHL (Philadelphia) Lever Design in 626 Finish Shown

sd_certs

Brand	PDQ
Finishes	626 Satin Chrome, 613e Dark Oxidized Satin Bronze equivalent, 622 Flat Black
Lever Design	PHL (Philadelphia), BSN (Boston), MIA (Miami), ORL (Orlando)
Rose Diameter	3-3/8” DIA Wrought
Usage	Medium Duty
Lock Function	Storeroom
Cylinder & Keys	5-pin or 6-pin conventional, keyed different, with 2 keys
Keyway	Schlage C Keyway
ANSI/BHMA Standard	Certified to ANSI/BHMA A156.2 Grade 2
Fire-Rating	UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Backset	2-3/4"
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing	Non Handed – Completely Reversible
Latch	1/2" throw - 1-1/8" x 2-1/4" face
Warranty	5 Year
