PDQ GT148 SFL Classroom Lever Lock, Small Format Interchangeable Core Prep

$231.17
Usually Ships:  2-3 Business Days
  • Heavy-Duty, ANSI/BHMA A156.2 Grade 1 certified
  • Small format interchangeable core prep (core sold separately)
  • ANSI function: F84, classroom

Available Options:

Clear

Product Overview

PDQ GT148 Lever Lockset, Classroom Function, Heavy-Duty, Grade-1, 2-3/4" Backset, ASA Strike, SFL (SFIC) Small Format Interchangeable Core Prep

Cycle tested to over 3 times the BHMA standards, the GT Series is built to withstand the toughest of applications. The 41-degree lever rotation provides reduced torque, lengthening the lifespan of the lock significantly. This proves PDQ’s GT Series to be a great solution for your high-traffic areas.

ANSI Function F84 – Latchbolt operated by lever from either side. Outside lever locked by key from outside. Outside lever unlocked by key from outside. Inside lever always operates latch.

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

  • SFIC = Small Format Interchangeable Core (Core Sold Separately)
  • Heavy duty diecast chassis with machined billet steel spindle
  • 13-Gauge steel anti-rotation plate installed on secure side

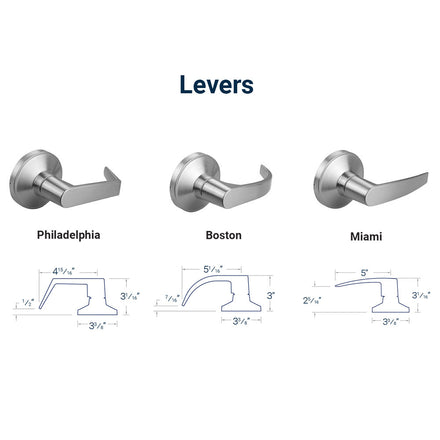

  • *Choose from three lever styles: Philadelphia (PHL), Boston (BSN), or Miami (MIA)
  • UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
  • Certified to ANSI/BHMA A156.2 Grade 1 standards
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

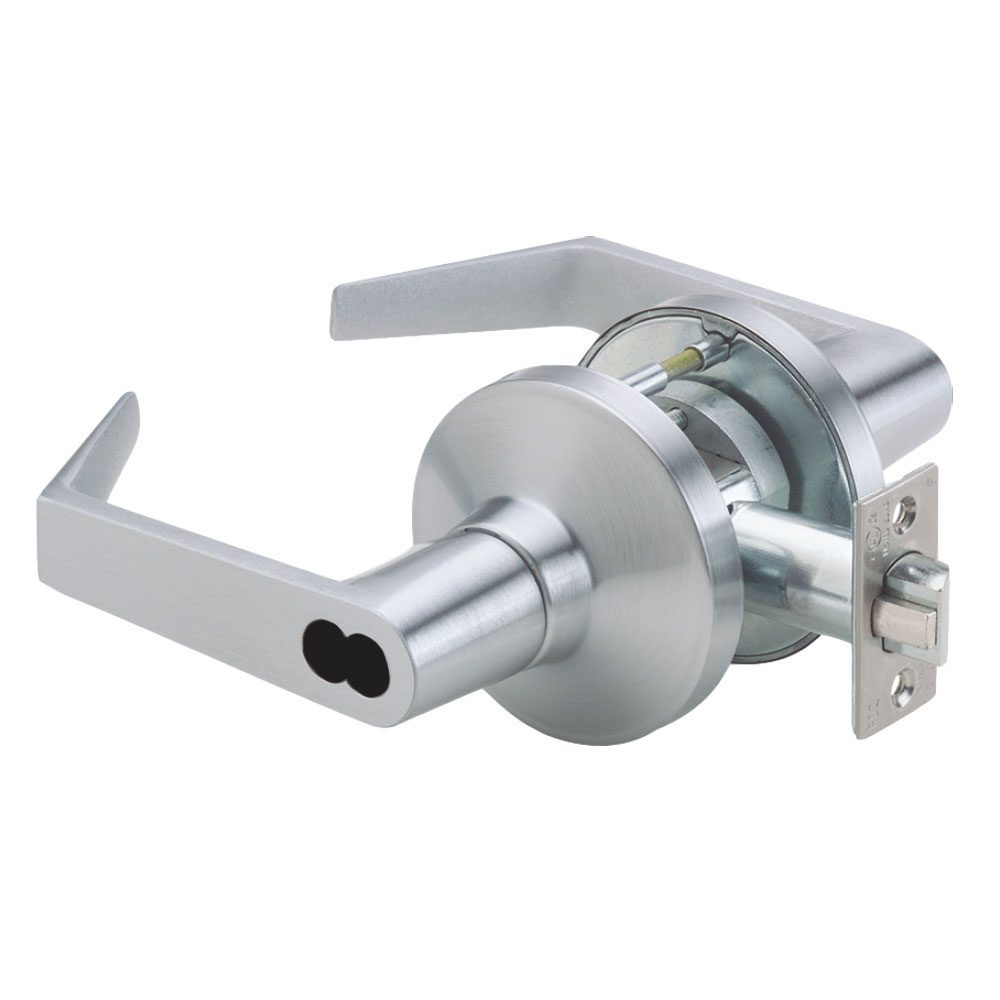

* PHL (Philadelphia) Lever Design Shown

sd_certs

Brand

Finishes

626 Satin Chrome

Lever Design

PHL (Philadelphia), BSN (Boston), MIA (Miami)

Rose Diameter

3-3/8” DIA Wrought

Usage

Heavy Duty

Lock Function

Classroom

Cylinder

Prepped for (SFIC) Small Format Interchangeable Core (less core)

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.2, Grade 1

Fire-Rating

UL listed for 3 hrs, for single doors up to 4’0” x 8’0

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non Handed – Completely Reversible

Latch

9/16" throw – 1-1/8" x 2-1/4" face

Warranty

Limited Lifetime Warranty

Buy American Act Compliance

Meets BAA - Buy American Act
