PDQ

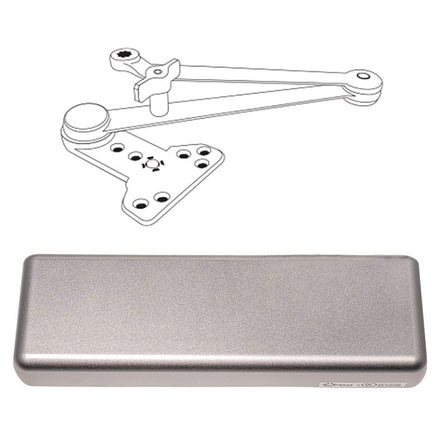

PDQ 7101 BC EDA HO Door Closer with Extra Duty Hold Open Arm

$234.72
Usually Ships:  2-3 Business Days
  • Heavy Duty, BHMA/ANSI Grade-1 certified
  • Includes extra duty hold open arm
  • Parallel arm mount only

Available Options:

Clear

Product Overview

PDQ 7101 BC PA EDA HO Extra Heavy Duty Grade-1 Institutional Door Closer, Extra Duty Hold Open Arm

The 7100 Series is PDQ’s top of line heavy duty closer. It is designed for high use, high abuse institutional applications such as K-12, higher education and government buildings. 7100 Series closers are ideal for retrofit and new construction applications where strength and durability are required.

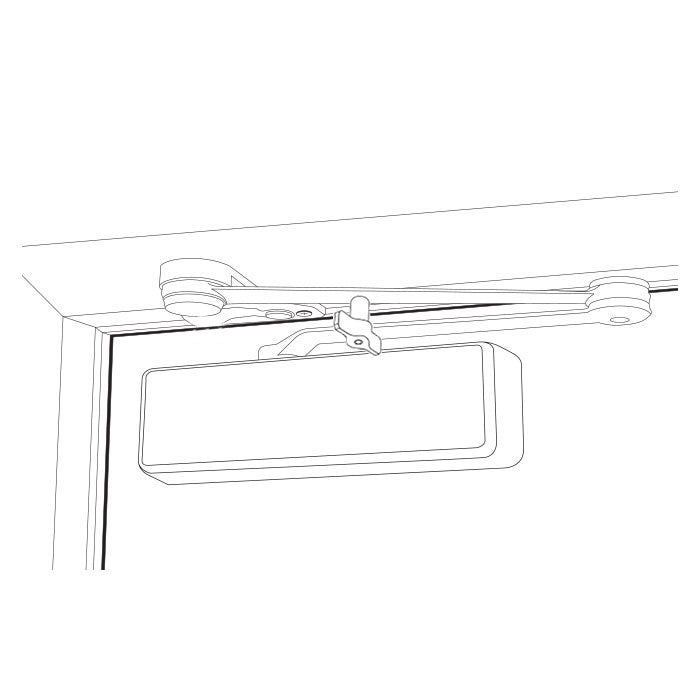

  • Parallel arm installation
  • Includes extra heavy duty hold open arm
  • Mounting hole pattern retrofits LCN® 4040
  • High strength cast iron body
  • Forged steel main arm
  • Full plastic cover standard
  • Certified to ANSI/BHMA A156.4 Grade 1
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
  • TAA compliant. Country of origin: KR
Brand

Finishes

693 Black (Powder Coated), 689 Aluminum (Powder Coated), 696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated)

Templating (Hole Pattern)

2-1/4" x 5"

Usage

Heavy Duty

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.4 Grade 1

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

Non-Rated with Hold Open Arm

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6

Cover

Full Cover

Handing

Non-Handed

Mounting Options

Parallel Arm (Push Side)

Door Application

Hollow Metal, Wood or Aluminum

Warranty

25 Year Limited
