PDQ

PDQ 6300C Concealed Vertical Rod Exit Device

$703.55
Usually Ships:  3-5 Business Days
  • Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • Non-handed for easy installation
  • Exit only (trim sold separately)

Available Options:

Clear

Product Overview

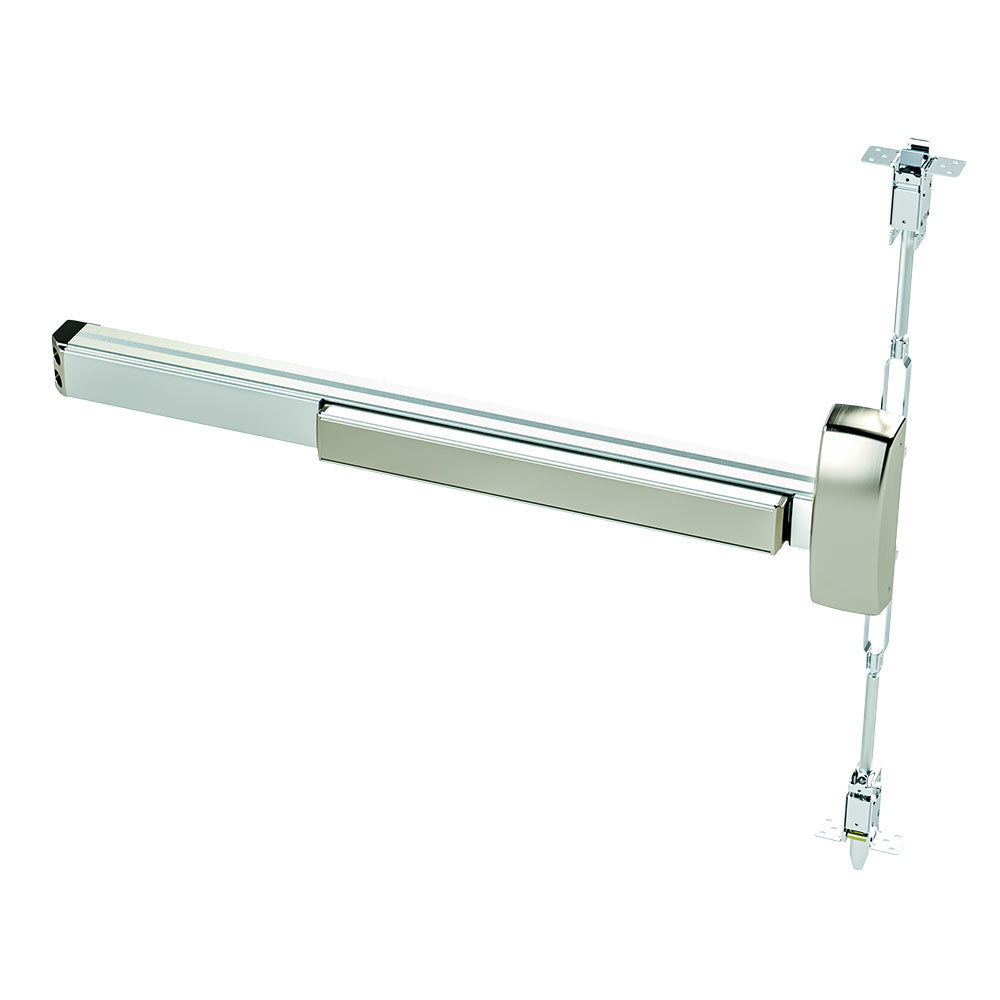

PDQ 6300C Series Heavy-Duty Grade-1 Concealed Vertical Rod Exit Device, 7ft Door Height

Improve your security and style with PDQ’s 6300C concealed vertical rod (cvr) exit device. Engineered for wide stile application, the 6300C cvr exit device easily integrates into any commercial space. Designed for durability, our exit device is able to withstand high-traffic environments, making it an ideal solution for schools, hospitals, and office buildings.

  • Exit Only (PDQ Exit Device Trim Sold Separately)
  • Cast chassis support for increased strength
  • Cush spring quiets in both directions
  • Compression spring for touch bar return
  • Heavy-duty flush end cap for pry resistance

Certifications

  • UL 305
  • UL 10C and CAN/ULC-S104 listed 3-hour fire door, for double doors up to 8' x 8' (LBR), 8' x 10' (single or double egress pair)
  • Certified to ANSI/BHMA A156.3 Grade 1
  • FL #40297 +50/-50 psf 8080 18ga Pair
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
  • Meets requirements of the BAA as a COTS product manufactured in the United States
Brand

Finishes

613e Dark Oxidized Satin Bronze equivalent, 622 Flat Black, 626 Satin Chrome, 630 Satin Stainless Steel, 630F Full Satin Stainless Steel

Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)

Device Type

Concealed Rod Device

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.3 Grade 1

Usage

Heavy Duty

Stile Type

Wide (Standard)

Minimum Stile Width

3-1/2"

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Latch

Top - Stainless Steel 3/4” toggle • Bottom - 5/8” Travel Drop Bolt

Strike

Cast top strike, plate bottom strike

Trim

None - Exit Only (Outside Trim Sold Separately)

Handing

Completely Reversible

Warranty

10 Year Limited

Buy American Act Compliance

Meets BAA - Buy American Act
