PDQ

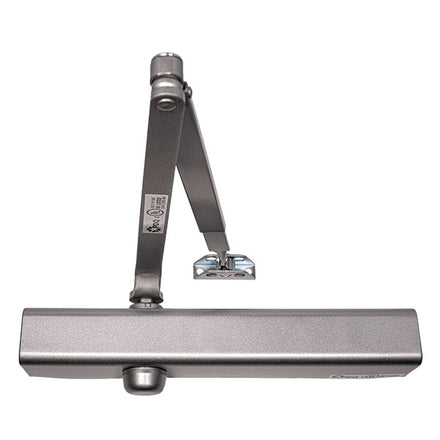

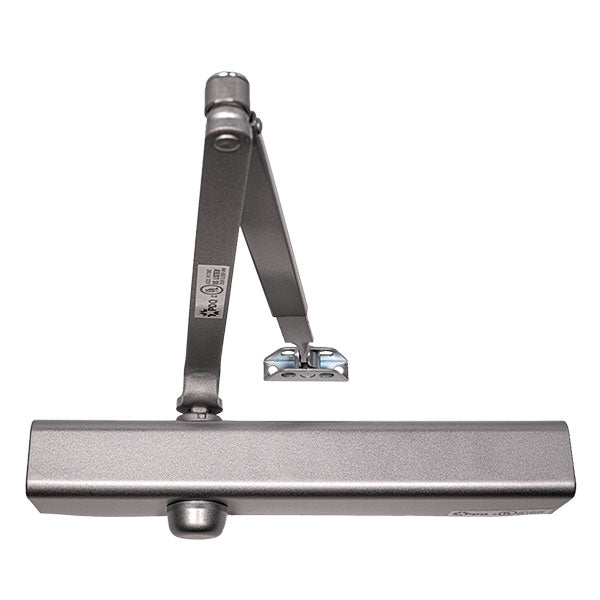

PDQ 5301 BC RA Door Closer

$111.27
Usually Ships:  1-2 Business Days
  • BHMA/ANSI Grade-1 certified
  • Fully Adjustable, sizes 1-6
  • Regular or top jamb mount

Available Options:

Clear
Added to Cart

Product Overview

PDQ 5301 BC RA Grade-1 Door Closer, Regular Arm

  • Regular or top jamb installation
  • Hight Strength Cast Aluminum Body
  • Streamline plastic cover
  • Common 12” x 3/4” mounting hole pattern retrofits Norton 8300/8500®
  • Forged steel main arm
  • UL listed 3-hour fire door
  • Certified to ANSI/BHMA A156.4 Grade 1
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
  • TAA compliant. Country of origin: KR

codes

Brand

Finishes

689 Aluminum (Powder Coated), 696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated), 693 Black (Powder Coated)

Templating (Hole Pattern)

3/4" x 12"

Usage

Medium Duty

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.4 Grade 1

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL Listed

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Cover

Slim Cover

Handing

Non-Handed

Mounting Options

Regular (Pull Side), Top Jamb (Push Side)

Door Application

Hollow Metal, Wood or Aluminum

Warranty

25 Year Limited
