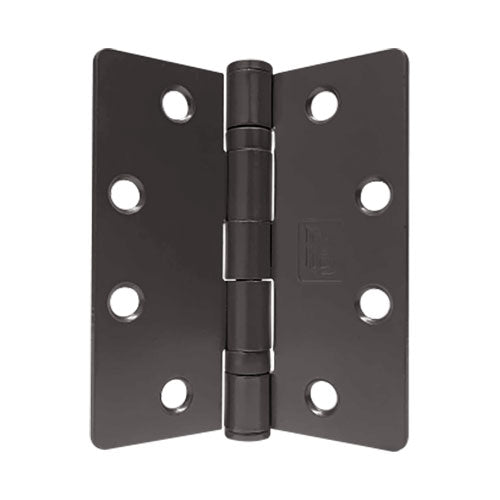

PBB BB51 4540 NR2 4.5″ x 4.0″ Storefront Ball Bearing Hinge, 5/32” Radius Corner

$22.66

Usually Ships: 2-3 Business Days

Meets ANSI/BHMA A156.1 standards
.134 standard weight, ball bearing
Typically used with aluminum storefront doors

Available Options:

Clear

Finish

Quantity:

Added to Cart

PBB BB51-4540-NR2 4-1/2 x 4 Standard Weight Ball Bearing Hinges for Storefront Doors, Five Knuckle, 5/32” Radius Corner, Non-Removable Pin, Stainless Steel Base

PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI).

Hinge Swaging: A standard swaging of our standard weight full mortise hinge when closed to parallel position provides a 1/16” clearance between leaves.

For use on medium weight doors or doors requiring average frequency service
Ball bearing hinges must be used on doors in conjuction with door closers and on all fire-rated openings
All hinges are ANSI template

Models: BB51-4540-630-NR2, BB51-4540-800-NR2, BB51-4540-810-NR2

Brand	PBB
Finishes	630 Satin Stainless Steel, US1D/800 Black Powder Coat, 810 Dark Bronze Powder Coat
Hinge Type	Full Mortise
Special Feature	Non-Removable Pin, Radius Corner
Size	4.5" x 4"
Knuckles	Five
Bearings	Ball Bearing
Material	Stainless Steel
Gauge	0 .134
Usage	Medium Duty
ANSI/BHMA Standard	Meets ANSI/BHMA A156 .1
