Pamex

Pamex HCFS570 Full Surface Continuous Hinge

$199.94
Usually Ships:  2-3 Business Days
  • Typically used for retrofit applications
  • Fire-rated up to 90-minutes
  • Supports weights up to 450lbs

Available Options:

Clear

Product Overview

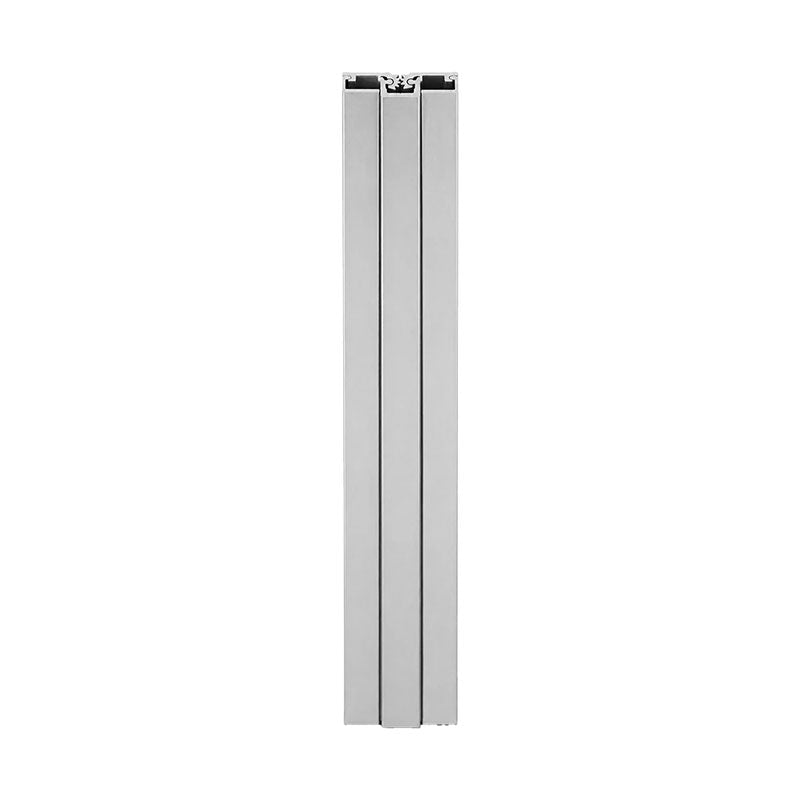

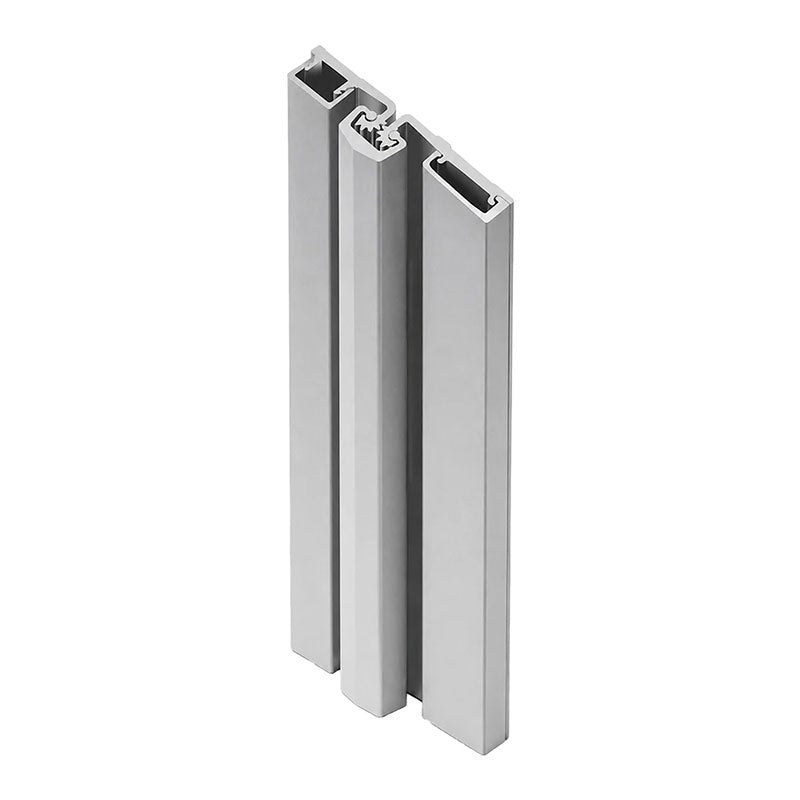

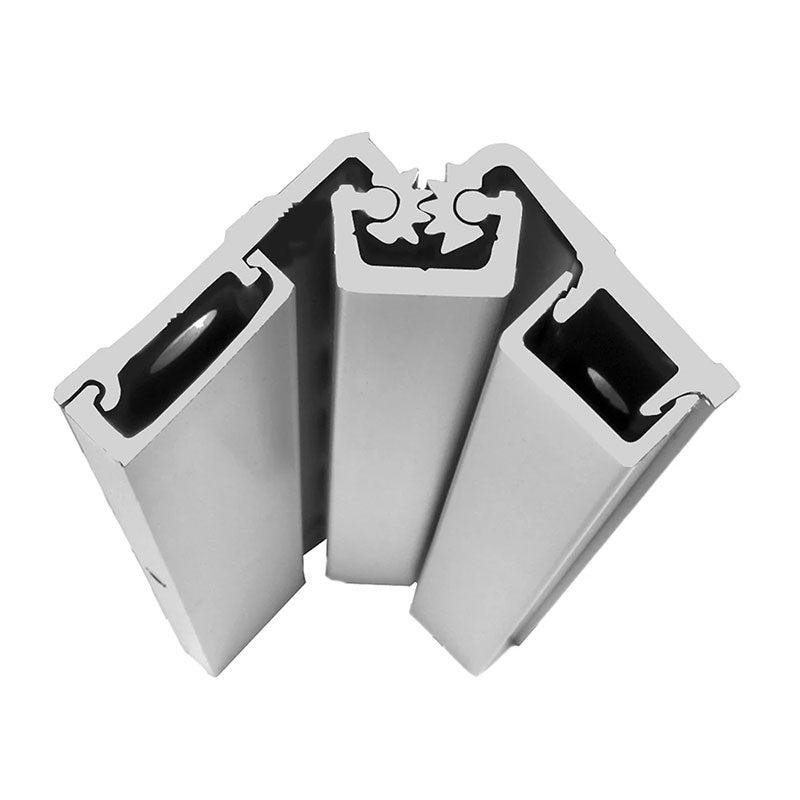

Pamex HCFS570 Full Surface Continuous Geared Hinge

Pamex offers quality hardware that is thoughtfully designed and thoroughly tested for long-term durability and performance.

  • Full surface, heavy-duty

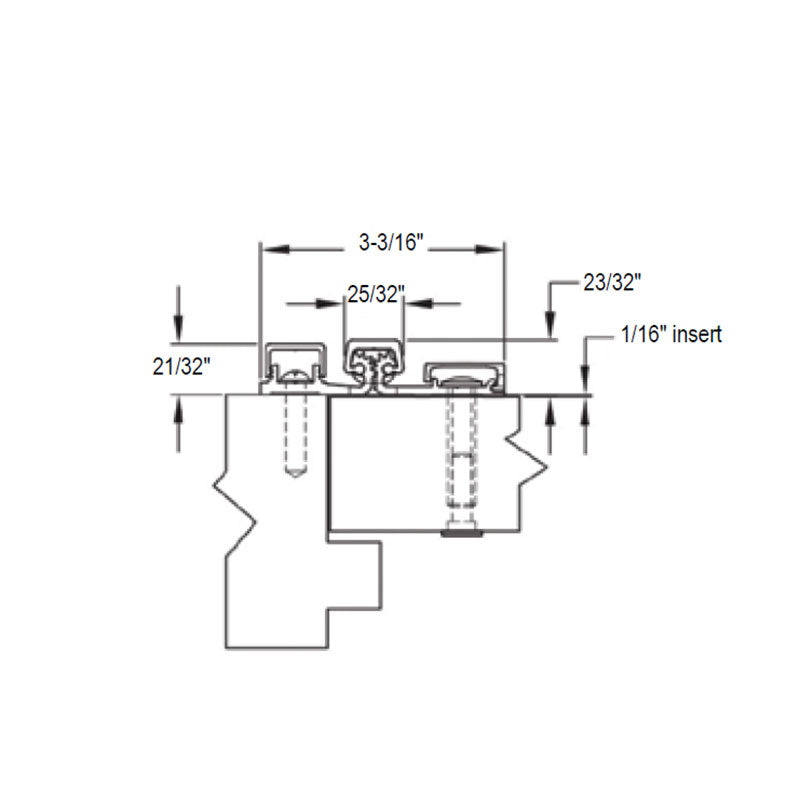

  • 1/16” door inset
  • For narrow-faced frames
  • 450 lbs. door weight maximum
  • 48” door width maximum
  • Standard Lengths: 83", *95"
  • Material: Aluminum
  • Fasteners: 12-24x7/8” undercut self-drilling, thread-forming tek machine screws for frame and ¼-20 sex bolts and shoulder bolts for door.
  • Fire Rating: Approved for use on metal swinging type fire doors rated up to and including 90 minutes and on wood swinging type fire doors rated up to and including 60 minutes

*Oversize handling fee applies (added at checkout)

Brand

Finishes

Clear Anodized Aluminum, Dark Bronze Anodized Aluminum

Length

83" (for 7'0" door), 95" (for 8'0" door)

Material

Aluminum

Usage

Heavy Duty

Door Applications

1-3/4″ Thick Doors

Door Weight

up to 450 lbs.

Continuous Hinge Type

Full Surface

Fasteners

12-24 x 7/8" undercut self-drilling, thread-forming tek machine screws for frame and 1/4-20 sex bolts and shoulder bolts for door

Fire-Rating

Approved for use on metal swinging type fire doors rated up to and including 90 minutes, Wood doors up to 60 minutes
