Pamex HCFM110 Full Mortise Continuous Geared Hinge

$159.96
Usually Ships:  2-3 Business Days
  • Typically used for new door applications
  • Fire-rated up to 90-minutes
  • Supports weights up to 450lbs

Available Options:

Clear

Product Overview

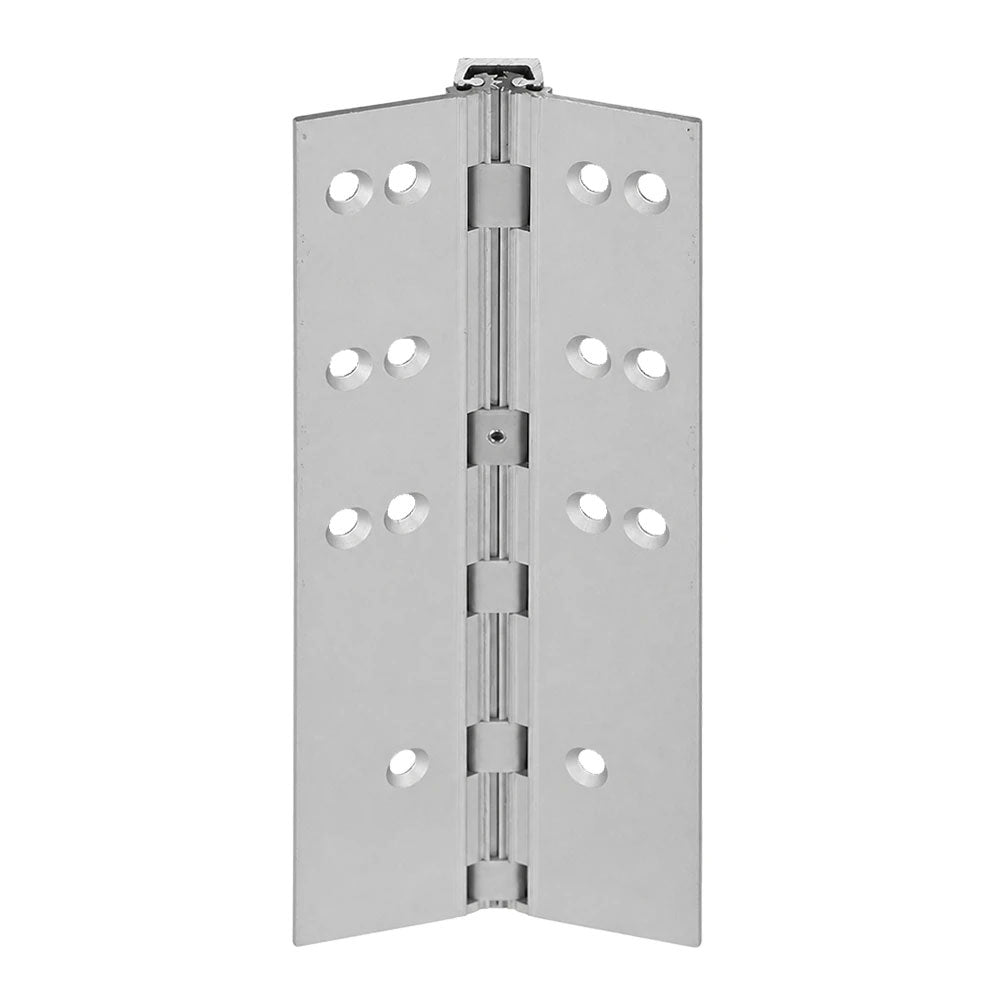

Pamex HCFM110 Full Mortise Continuous Geared Hinge

Pamex offers quality hardware that is thoughtfully designed and thoroughly tested for long-term durability and performance.

  • Full mortise, heavy-duty
  • No door insert, flush mount
  • 450 lbs. door weight maximum
  • 48” door width maximum
  • Standard Lengths: 83", *95"
  • Material: Aluminum
  • Fasteners: 12-24x7/8” undercut shelf-drilling, thread-forming
    tek machine screws
  • Pack with Phillips flat-head screws
  • Fire Rating: Approved for use on metal swinging type fire doors rated up to and including 90 minutes and on wood swinging type fire doors rated up to and including 60 minutes

*Oversize handling fee applies (added at checkout)

Brand

Finishes

Clear Anodized Aluminum, Dark Bronze Anodized Aluminum

Length

83" (for 7'0" door), 95" (for 8'0" door)

Material

Aluminum

Usage

Heavy Duty

Door Applications

1-3/4″ Thick Doors

Door Weight

up to 450 lbs.

Continuous Hinge Type

Full Mortise (Concealed)

Fasteners

12-24x7/8” undercut shelf-drilling, thread-forming tek machine screws, Pack with Phillips flat-head screws

Fire-Rating

Approved for use on metal swinging type fire doors rated up to and including 90 minutes, Wood doors up to 60 minutes
