Pamex

Pamex GC5900BF Door Closer

$94.70
Usually Ships:  2-3 Business Days
  • ANSI/BHMA A156.4, Grade 1
  • Adjustable Spring Size 1-6
  • Regular, Top Jamb or Parallel Arm Mount

Available Options:

Clear

Product Overview

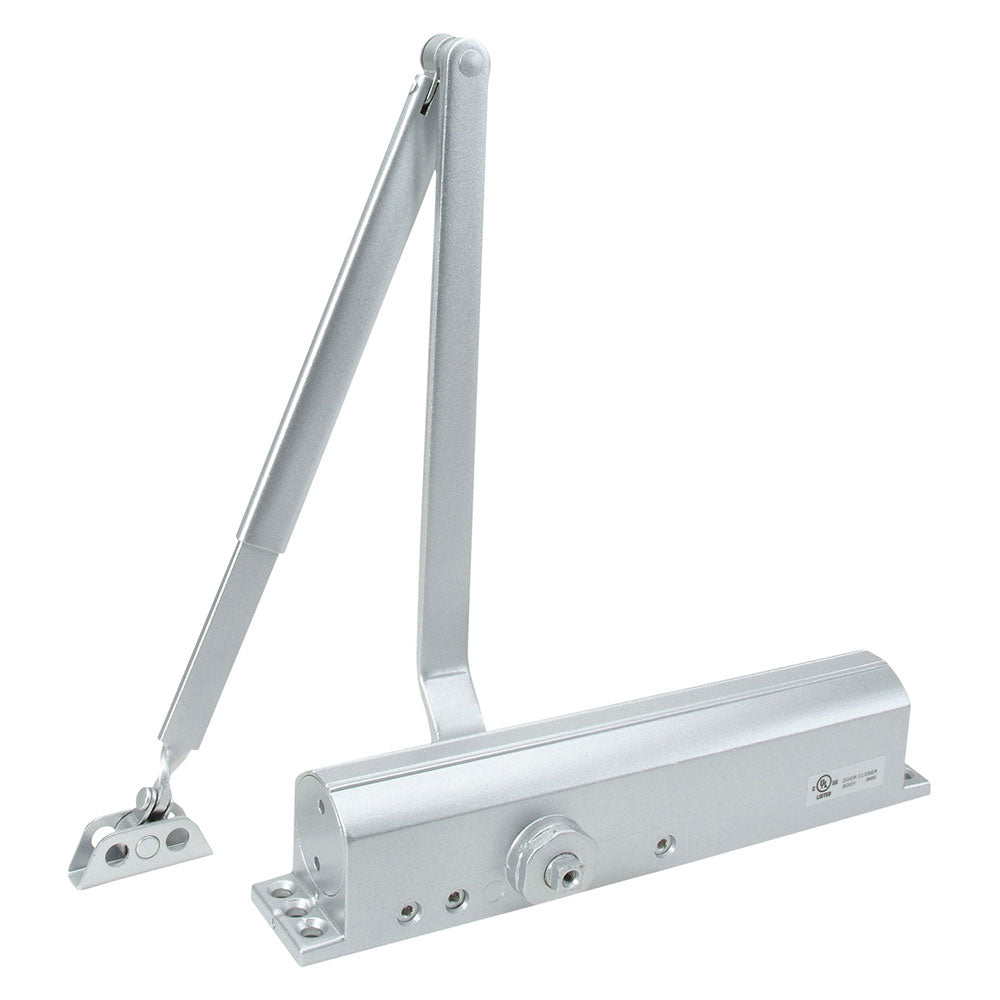

Pamex GC5900BF Grade-1 Door Closer, Size 1-6 Adjustable, Cast Aluminum Body, Regular Arm with PA Bracket, Full Cover

Flexible heavy duty door closer designed for institutional and other rugged high traffic applications.

  • ANSI/BHMA A156.4 Grade 1
  • UL Listed, UL (10C) and UBC (7-2) Codes
  • Meets ADA requirements
  • Multi-size full feature closer
  • Adjustable closing and latching speed
  • Back Check and Barrier Free
  • Door weight range from 44 ~ 265 lbs

Package Includes

  • Parallel bracket
  • Wood screws and machine screws

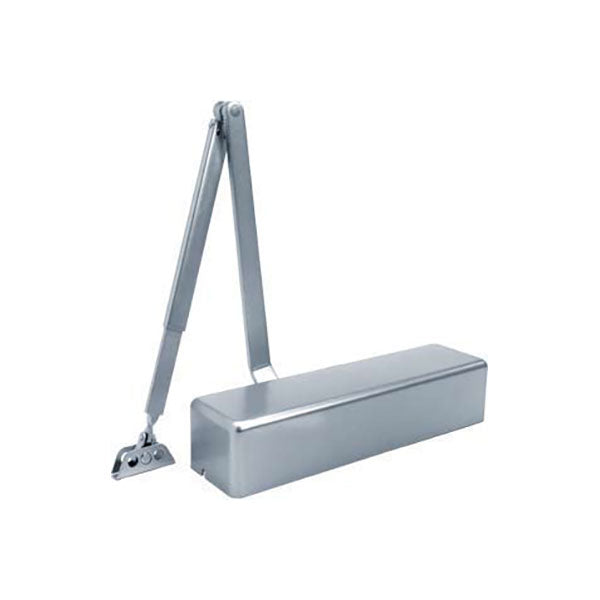

  • Full plastic cover
  • Sex bolts and Thru bolts
Brand

Finishes

689 Aluminum (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated)

Usage

Medium Duty

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Templating (Hole Pattern)

9/16" x 11-1/8"

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Cover

Full Cover

Fire-Rating

UL/cUL listed

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Warranty

25 Years
