Pamex

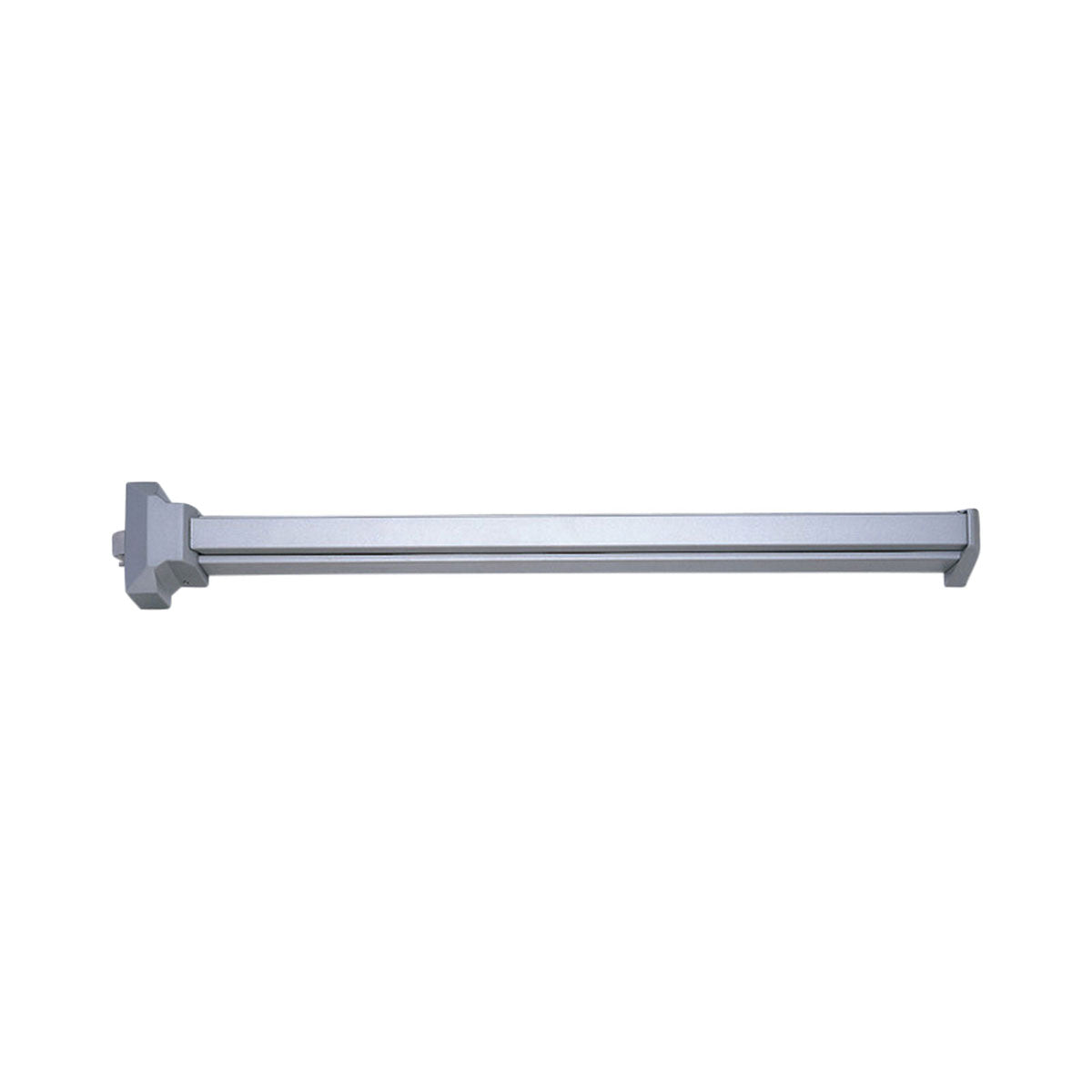

Pamex EF8000R Fire-Rated Panic Rim Exit Device

$157.00
Usually Ships:  2-3 Business Days
  • ANSI/BHMA A156.3 Grade 2
  • Exit Only (Trim Sold Separately)
  • UL Listed for Panic Exit Hardware

Available Options:

Clear

Product Overview

Pamex EF8000R 3' Fire-Rated Panic Rim Exit Device, Exit Only

E8000 Series Rim Type Exit Device

  • Exit Only (Pamex Exit Device Trim sold separately)
  • Standard Duty Commercial Application
  • ANSI/BHMA A156.3, Grade 2
  • UL Listed, UL (10C) and UBC (7-2) codes
  • UL 1-½ hour fire rated
  • Compatible with Pamex E7000, E5000, E8000 trims & accessories
Brand

Finishes

689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated)

Length

33" (For 32" to 36" Wide Door)

Usage

Standard Duty

ANSI/BHMA Standard

ANSI A156.3, Grade 2

Fire-Rating

UL10C and UBC 7.2 for positive pressure, UL Listed up to 90 Minutes

Strike

For 5/8” stop, plus shim for 1/2” stop

Minimum Stile Width

4-1/4” minimum

Door Thickness

1-3/4"

Warranty

10-Year Mechanical Warranty / Five-Year Finish Warranty
