Pamex E7000R Panic Rim Exit Device

$191.27
Usually Ships:  2-3 Business Days
  • ANSI/BHMA A156.3 Grade 1
  • Exit Only (Trim Sold Separately)
  • UL Listed for panic exit hardware

Available Options:

Clear

Product Overview

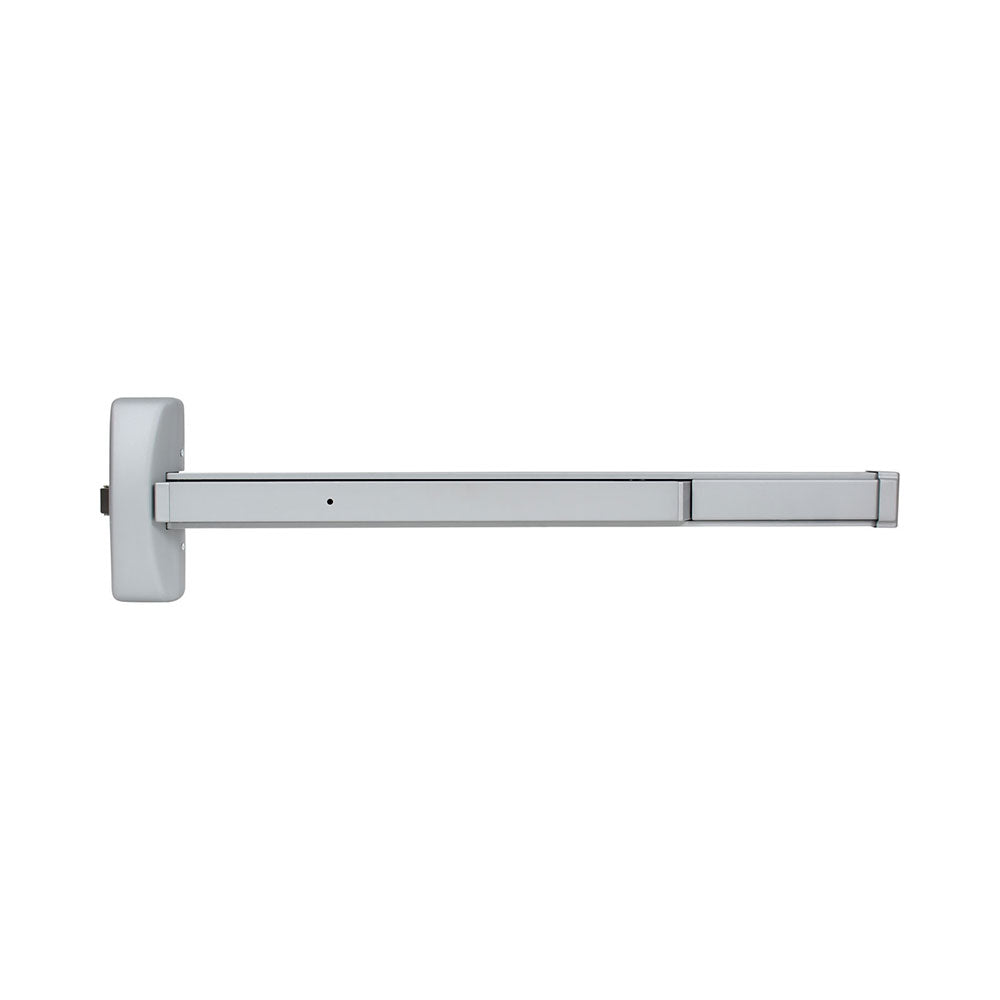

Pamex E7000R Panic Rim Exit Device, Hex Dogging, Exit Only

E7000R Series Rim Type Exit Device

  • Exit Only (Pamex Exit Device Trim sold separately)
  • ANSI/BHMA A156.3, Grade 1
  • UL Listed, UL (10C) and UBC (7-2) codes
  • Available for 3’ and 4’ wide doors
  • Compatible with Pamex E7000, E5000, E8000 trims & accessories
Brand

Finishes

US26D Satin Chrome, US32D (630) Satin Stainless Steel, 695 Dark Bronze (Powder Coated)

Length

33" (For 32" to 36" Wide Door), 42" (For 44" to 48" Wide Door)

Usage

Medium Duty

ANSI/BHMA Standard

ANSI/BHMA A156.3 Series—Grade 1

Fire-Rating

Non-Fire-Rated

Dogging Feature

Half turn hex dogging standard

Door Thickness

1-3/4"

Warranty

10-Year Mechanical Warranty / Five-Year Finish Warranty

Strike

For 5/8” stop, plus shim for 1/2” stop
