Product Overview

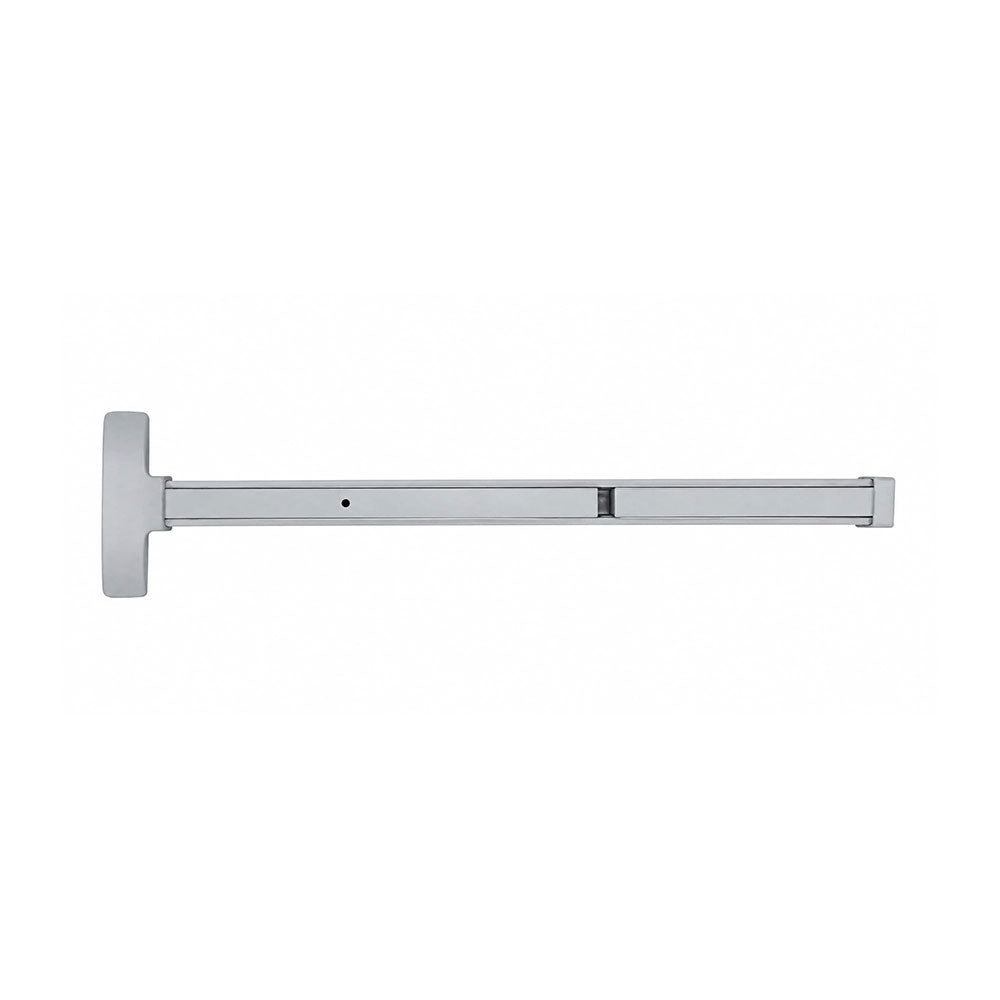

Pamex E5000R Panic Rim Exit Device, Hex Dogging, Exit Only
E5000 Series Rim Type Exit Device
-
Exit Only (Pamex Exit Device Trim sold separately)
- Medium Duty Commercial Application
- ANSI/BHMA A156.3, Grade 1
- UL Listed, UL (10C) and UBC (7-2) codes
- Compatible with Pamex E5000, E8000 trims & accessories
| Brand | |
|---|---|
| Finishes |
689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated), US19 Matte Black, US32D (630) Satin Stainless Steel |
| Length |
33" (For 32" to 36" Wide Door), 42" (For 44" to 48" Wide Door) |
| Usage |
Medium Duty |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3 Series—Grade 1 |
| Strike |
For 5/8” stop, plus shim for 1/2” stop |
| Minimum Stile Width |
4-1/4” minimum |
| Door Thickness |
1-3/4" |
| Stile Type |
Narrow |
| Dogging Feature |
Half turn hex dogging standard |
| ADA Compliance |
Meets ADA requirements ANSI A117.1 with Lever Trim |
| Warranty |
10-Year Mechanical Warranty / Five-Year Finish Warranty |
