Norton

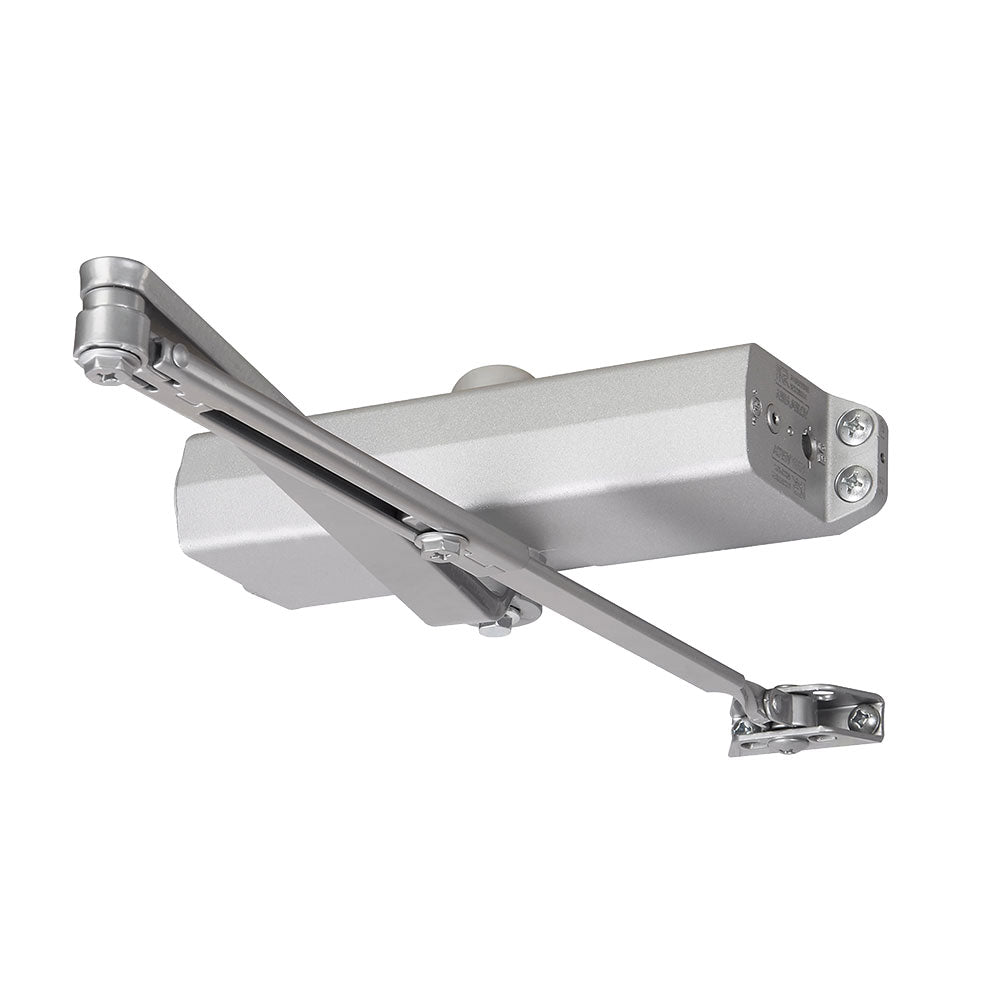

Norton J1601 Door Closer with Top Jamb Mount Arm, Reveals 2-3/4" to 7"

$158.89
Usually Ships:  20-30 Business Days
  • ANSI/BHMA A156.4, Grade 1 certified
  • For frame reveals from 3" to 7"
  • Top jamb arm mounting

Available Options:

Clear

Product Overview

Norton J1601 Grade 1 Door Closer, Top Jamb Arm Mount, Adjustable Size 1 to 6, Reveals 2-3/4" to 7"

1601 door closers are adjustable for sizes 1 through 6 and can be adjusted to conform to ADA opening force requirements.

  • Top jamb mounting
  • Exceeds 25 million cycles (independently verified) for long life and fewer replacements
  • One-piece, heavy-duty cast aluminum body
  • High-strength aluminum alloy closer body provides for long life
  • Independent latch, sweep, and backcheck intensity valves to ensure positive control

CODE COMPLIANCE

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire-rated doors
  • UL10C listed for positive pressure fire test
  • Meets requirements for Americans with Disabilities Act
Brand

Finishes

689 Aluminum (Powder Coated), BSP - Black Suede Powder Coat, 690 Dark Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated)

Usage

Standard Duty

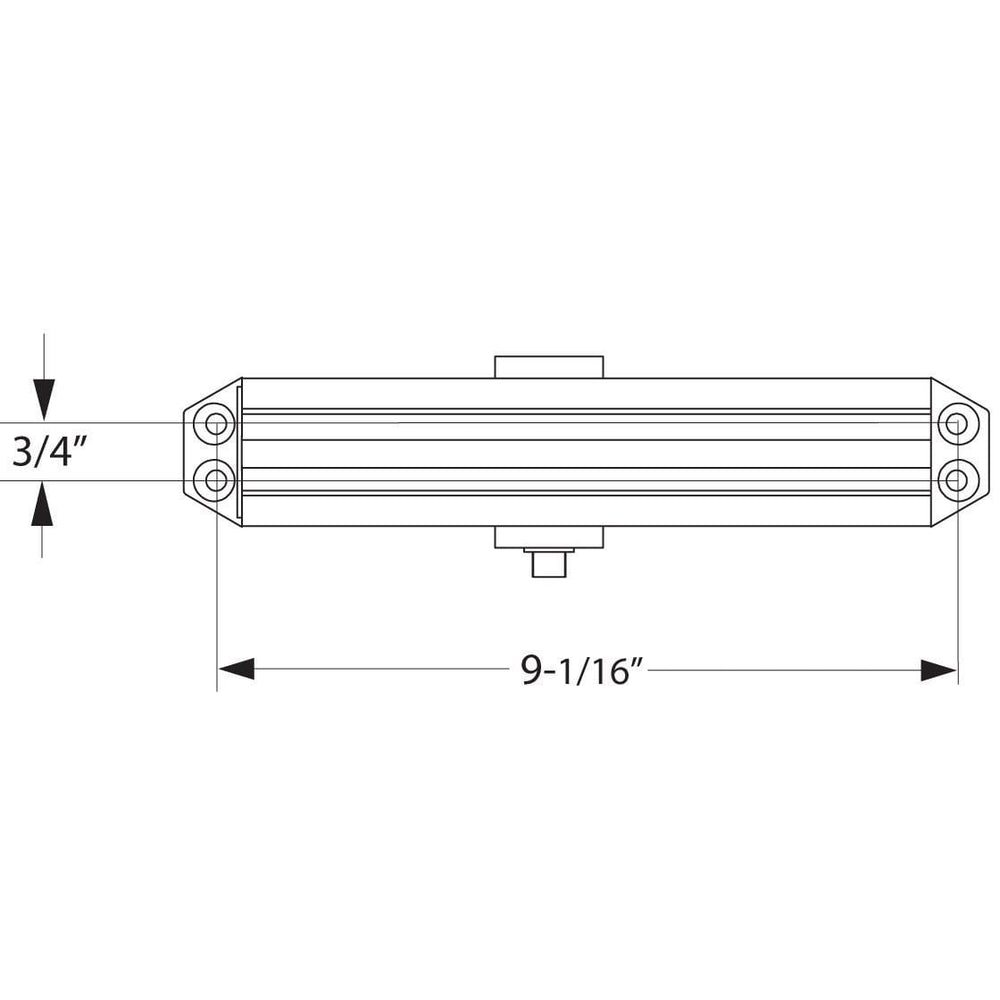

Templating (Hole Pattern)

3/4" x 9-1/16"

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non-Handed

Cover

None

Mounting Options

Top Jamb (Push Side)

Fire-Rating

UL and cUL Listed - up to 3 Hours

Warranty

30 Years
