Norton

Norton CPS1601T Door Closer with CloserPlus Spring Stop Hold Open Arm

$281.23
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.4, Grade 1 certified
  • Includes CloserPlus® hold open spring stop arm
  • Parallel arm mounting

Available Options:

Clear

Product Overview

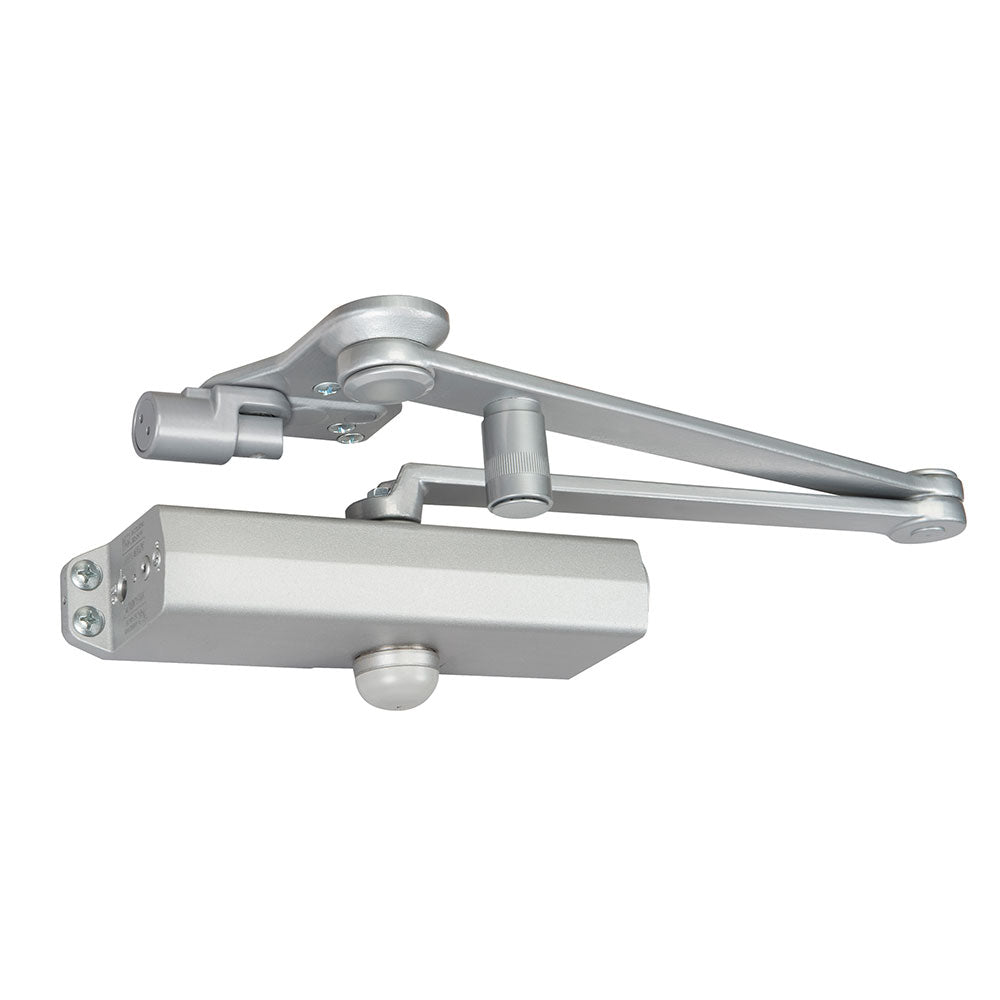

Norton CPS1601T Grade 1 Closer Plus Spring Parallel Arm T Turn Hold Open Door Closer, Push Side, Parallel Arm, Size 1 to 6

Arm incorporates a stop at the arm's soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments. An additional steel buffer spring provides greater protection at the end of the door opening cycle. Hold open strength is adjustable.

  • Parallel arm mounting
  • Exceeds 25 million cycles (independently verified) for long life and fewer replacements
  • One-piece, heavy-duty cast aluminum body
  • High-strength aluminum alloy closer body provides for long life
  • Independent latch, sweep and backcheck intensity valves to ensure positive control

CODE COMPLIANCE

  • ANSI/BHMA A156.4, Grade 1 certified
  • Meets requirements for Americans with Disabilities Act
Brand

Finishes

689 Aluminum (Powder Coated), BSP - Black Suede Powder Coat, 690 Dark Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated)

Usage

Standard Duty

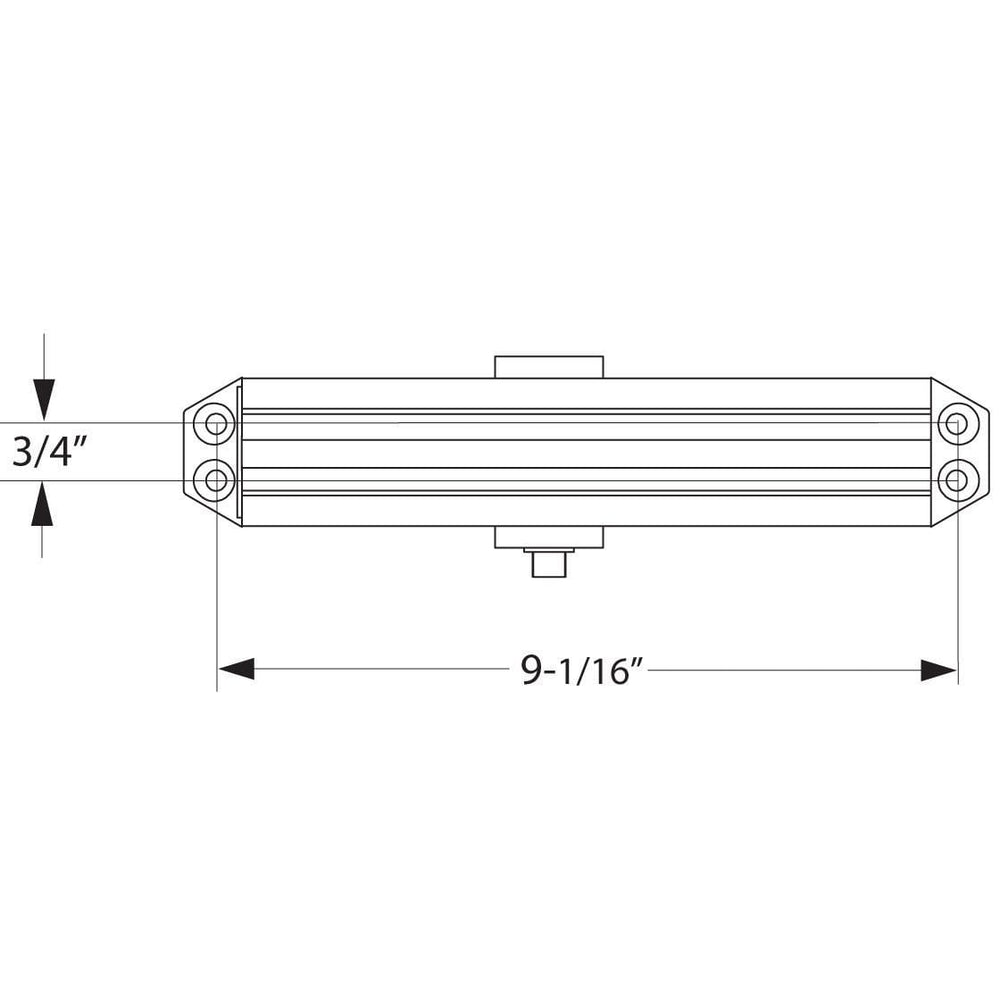

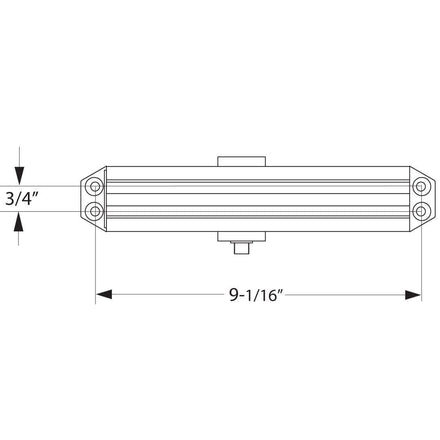

Templating (Hole Pattern)

3/4" x 9-1/16"

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non-Handed

Cover

None

Mounting Options

Parallel Arm (Push Side)

Fire-Rating

Non-Rated with Hold Open Arm

Warranty

30 Years
