Product Overview

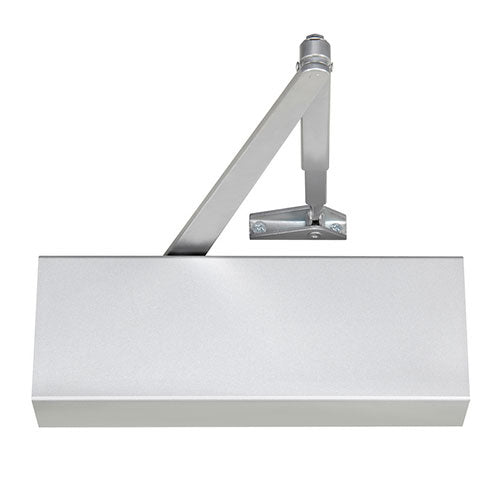

Norton 9500 Cast Iron Door Closer, Grade-1 Extra Heavy-Duty, Tri-Packed with PA Bracket
Ideal for high use openings, the Norton 9500 Series Cast Iron door closer offers the durability, flexibility and strength required to meet the needs of your facility. For interior or exterior doors, this ANSI/BHMA Grade 1 closer features a clean, modern cover aesthetic and durable cast iron body that can be used in a variety of institutional and educational environments requiring ADA compliance.
- Tri-style® packaging: packed for regular, top jamb or parallel arm mounting
- Meets ADA requirements in all applications
- Exceeds 25 million cycles
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- Cast-iron closer body
| Brand | |
|---|---|
| Usage |
Heavy Duty |
| Finishes |
690 Dark Bronze (Powder Coated), 693 Black (Powder Coated), 689 Aluminum (Powder Coated) |

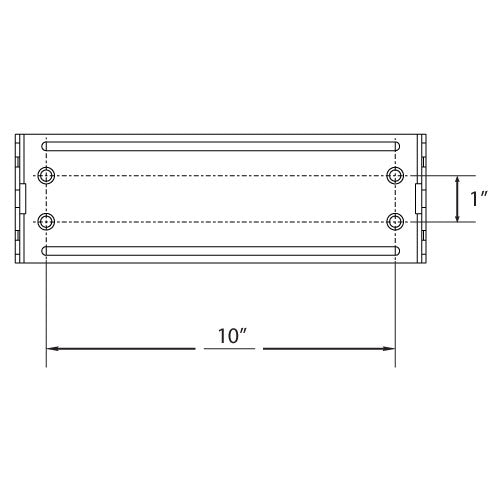

| Templating (Hole Pattern) |
1" x 10" |
| Mounting Options |
Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side) |
| ANSI/BHMA Standard |
ANSI/BHMA Grade 1 156.4 standards |
| Fire-Rating |
UL and cUL Listed – up to 3 Hours |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Fasteners |
Self-drilling screws, sex nuts and bolts (SNBs) |
| Cover |
Full Cover |
| Spring Size |
Adjustable Spring Size 1-6 |
| Handing |
Non-Handed |
| Warranty |
30 Years |
