Product Overview

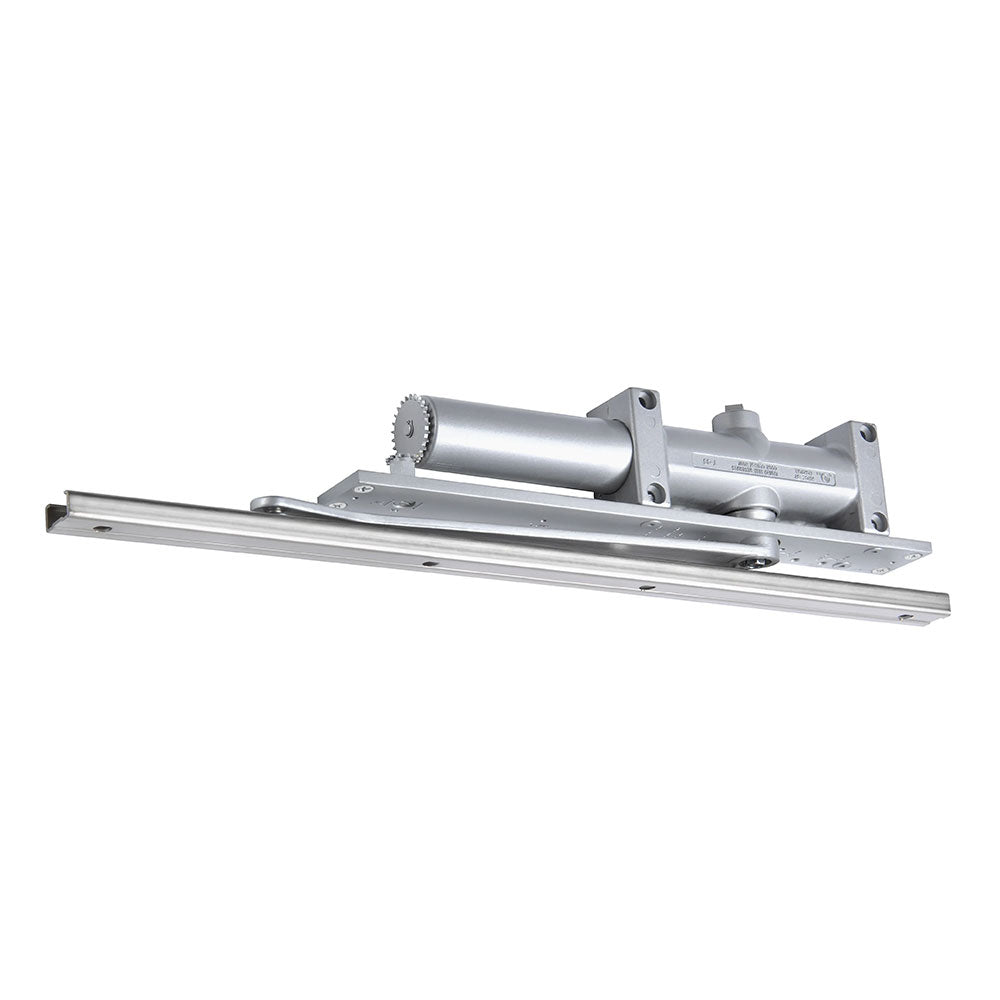

Norton 7900 Overhead Concealed Closer, Non-Hold Open, Size 1-3
The 7900 Series overhead concealed closer offers extremely durable operation with the vandal resistance and concealment necessary for high security and high-end architectural openings.
Application
-
Exterior or interior doors
-
Door weight up to 200 lbs.
-
Minimum door width 27"
-
Can be used with butt hinges (5" max),
- 3/4 offset pivots or center hung pivot
Features
- Adjustable spring sizes (1-3)
- Shock absorbing door stop
- Handed
- Can be used with butt hinges, offset, or center hung pivots
- Adjustable sweep and latch speeds
- Adjustable backcheck cushioning and positioning
- Accommodates 1-3/4" to 2-1/4" thick doors
- Use of auxiliary door stop is recommended
- Maximum Door Weight: 200 lbs
- UL-cUL Fire-Rated Up to 3 Hours
- ANSI/BHMA A156.4, Grade 1
- Americans with Disabilities Act (ADA) Compliant
| Brand | |
|---|---|
| Finishes |
689 Aluminum (Powder Coated), 613e Dark Oxidized Satin Bronze equivalent, BSP - Black Suede Powder Coat |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Grade 1 - ANSI A156.4 |
| Fire-Rating |
UL and CL listed |
| Handing |
Handed – LH, RH |
| Door Thickness |
1-3/4" to 2-1/4" |
| Warranty |
10 Years |
