Norton

Norton 1601NB Door Closer with NorBell Door Notification Chime

$154.03
Usually Ships:  1-2 Business Days
  • Meets ANSI A156.4 Grade 1 Standards
  • Includes NorBell Door Notification Chime
  • Tri-Packed for Regular, Top Jamb, and Parallel Arm Installations

Available Options:

Clear

Product Overview

Norton 1601NB Grade 1 Tri-Mount Surface Door Closer, Adjustable Size 1-6, Non-Handed, Includes NorBell Door Notification

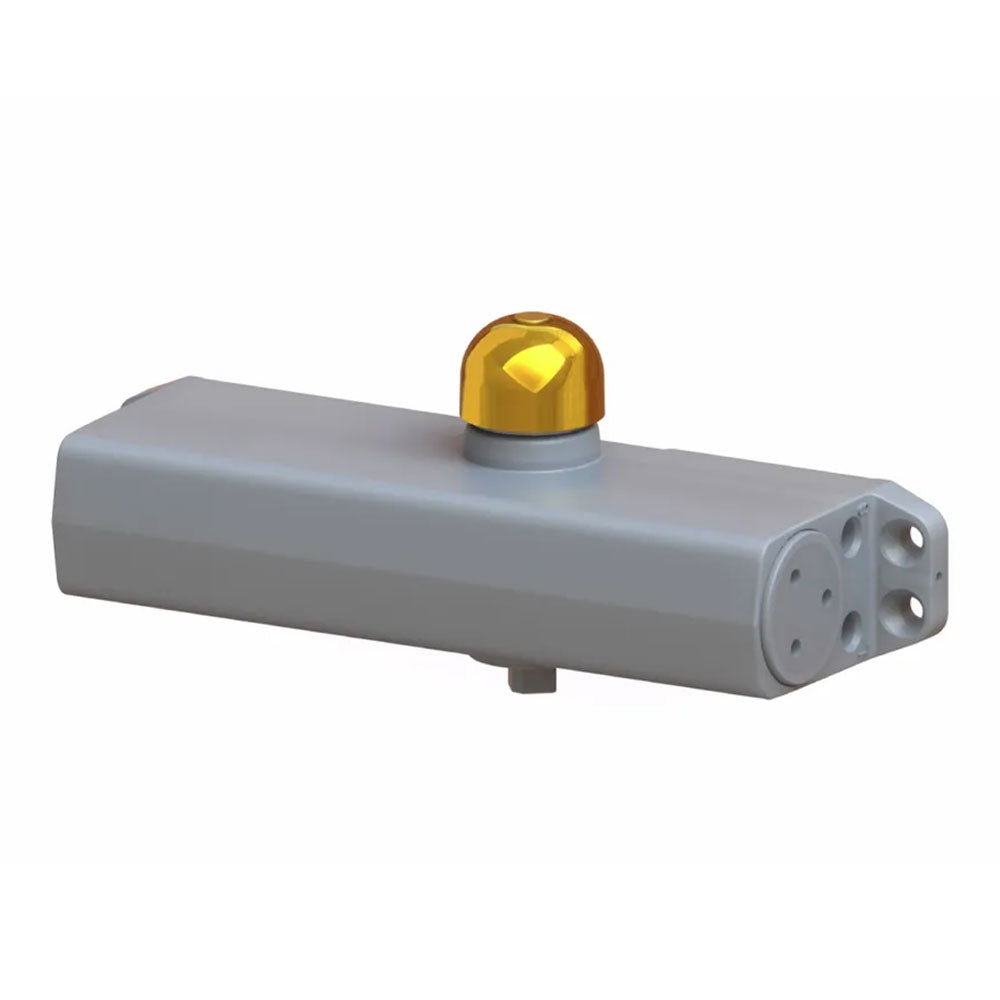

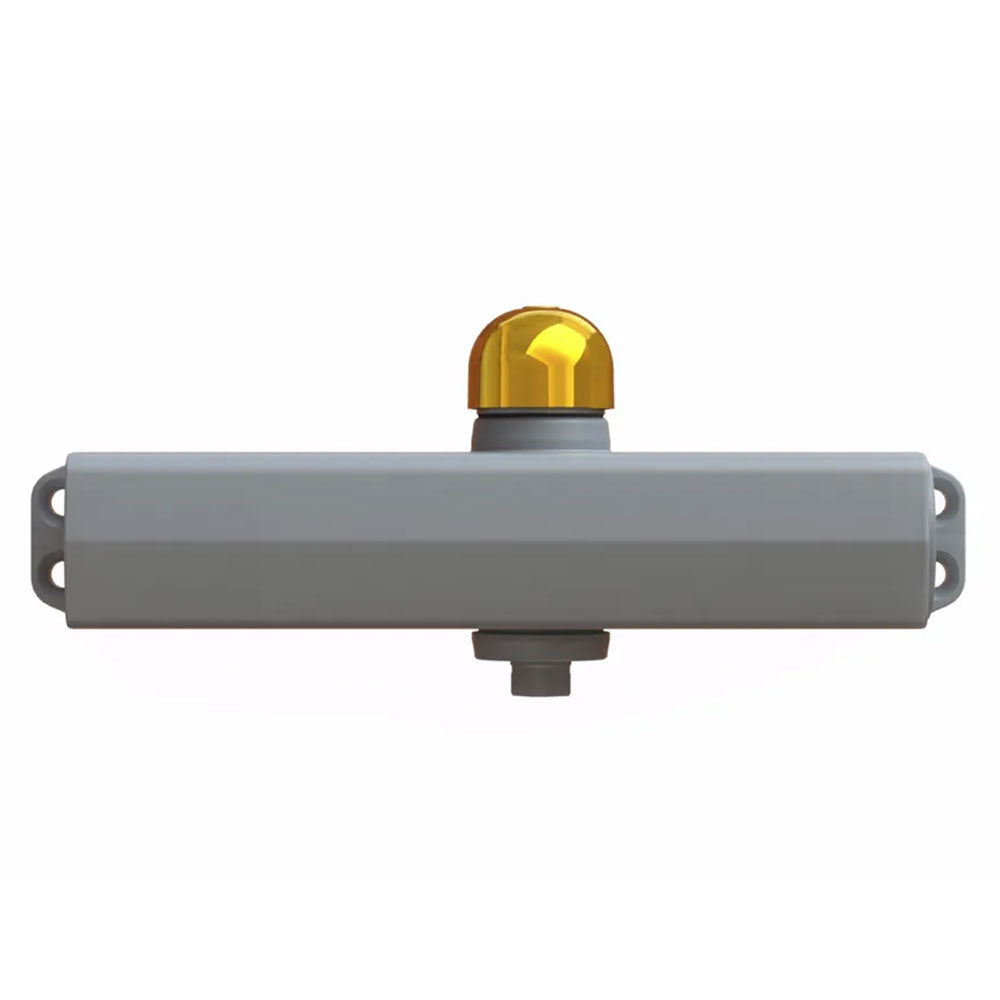

A one-of-a-kind door notification, as the door is opened the NorBell™ utilizes the rotation of the door closer pinion to create it's iconic chime. This door opening notification solution was designed for minimal impact on the door, frame and overall appearance. Mitigating damage, creating tamper-resistance, and keeping dangling objects out of the door threshold.

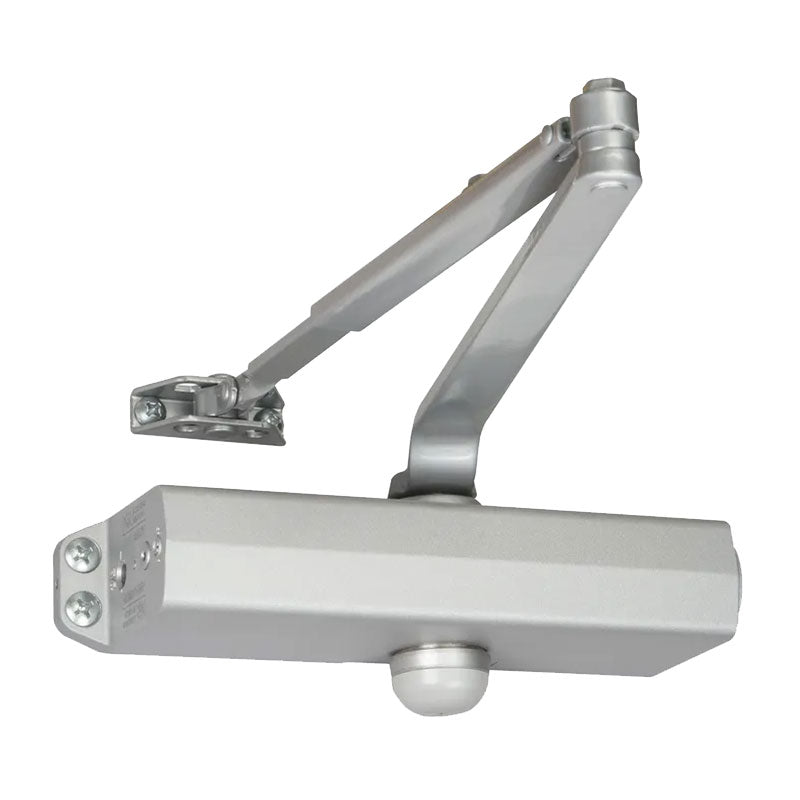

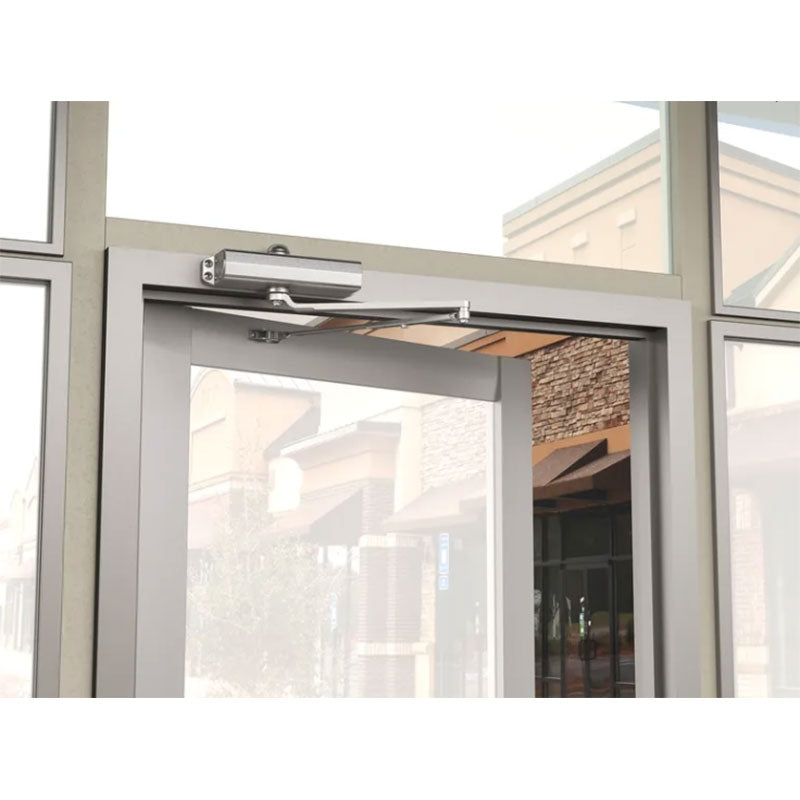

The Norton 1601 is typically used as an aluminum storefront door closer, for light to medium traffic. A staple in the industry, these ANSI/BHMA Grade-1 closers are designed for exterior or interior doors. The 1600 Series door closers offer proven quality, performance, and reliability unmatched by the competition. 1600 Series closers are ideal for virtually any medium traffic, commercial application.

  • Clear indication of entry by customers, employees, or anyone else who may be using the door
  • Uses the rotational energy of the pinion to strike the bell; Clear ringing noise
  • No batteries, wires, or electronics involved
  • Does not damage doors unlike other notification solutions
  • Tri-style® packaging: regular, top jamb or parallel mounting
  • Exceeds 25 million cycles (independently verified) for long life and fewer replacements
  • One-piece, heavy-duty cast aluminum body
  • High strength aluminum alloy closer body provides for long life
  • Independent latch, sweep and backcheck intensity valves to ensure positive control

CODE COMPLIANCE

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire-rated doors
  • UL10C listed for positive pressure fire test
  • Meets requirements for Americans with Disabilities Act

codes

Brand

Finishes

689 Aluminum (Powder Coated), BSP - Black Suede Powder Coat

Templating (Hole Pattern)

3/4" x 9-1/16"

Usage

Standard Duty

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non Handed – Completely Reversible

Speed Control

Independent latch & sweep speed controls

Backcheck

Back check intensity control standard

Valves

Staked valves to prevent backing valves out too far

Piston, Spindle, Spring

Heat treated heavy-duty steel piston, spindle and spring

Cover

None

Min. Top Rail

Regular: 3-1/8” – Top Jamb: 1-7/8” – Parallel Arm: 5-3/4”

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL Listed for “A” Label 3 hour fire doors, UL10C positive pressure rated

Special Feature

Door Notification Chime

Warranty

30 Years

Norton_Rixson_1600_Series_Tri-Style_Non_Hold_Open_Installation_Instructions Norton_Rixson_NorBell_Closer_Mounted_Door_Chime_Installation_Instructions Norton_Rixson_NorBell_Closer_Mounted_Door_Chime_Quick_Start_Guide Loading... Loading...
