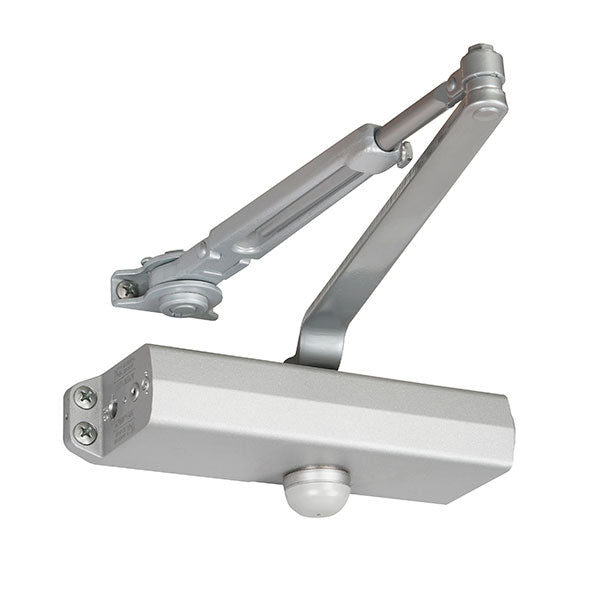

Norton 1601H Door Closer with Hold Open Arm

$147.32
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified - Grade-1
  • Includes Hold Open Arm
  • Regular, Top Jamb or Parallel Arm Mount

Available Options:

Clear

Product Overview

Norton 1601H Grade 1 Tri-Mount Surface Door Closer, Hold Open, Adjustable Size 1-6, Non-Handed

The Norton 1601 is typically used as an aluminum storefront door closer, for light to medium traffic. A staple in the industry, these ANSI/BHMA Grade-1 closers are designed for exterior or interior doors.

  • Includes hold open arm
  • Tri-style® packaging: regular, top jamb or parallel mounting
  • Exceeds 25 million cycles (independently verified) for long life and fewer replacements
  • One-piece, heavy-duty cast aluminum body
  • High strength aluminum alloy closer body provides for long life
  • Independent latch, sweep and backcheck intensity valves to ensure positive control

CODE COMPLIANCE

  • ANSI/BHMA A156.4, Grade 1 certified
  • Meets requirements for Americans with Disabilities Act
Brand

Finishes

696 Brass (Powder Coated), 689 Aluminum (Powder Coated), 690 Statuary Bronze (Powder Coated), BSP Black Suede Powder Coat, 691 Light Bronze (Powder Coated)

Templating (Hole Pattern)

3/4" x 9-1/16"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Cover

None

Usage

Standard Duty

Warranty

30 Years
