NGP (National Guard)

NGP (National Guard) L-VGLF-OG Security Vision Lite Kit Pack with 1/2″ High Impact Polycarbonate Glazing

$247.31
Usually Ships:  10-20 Business Days

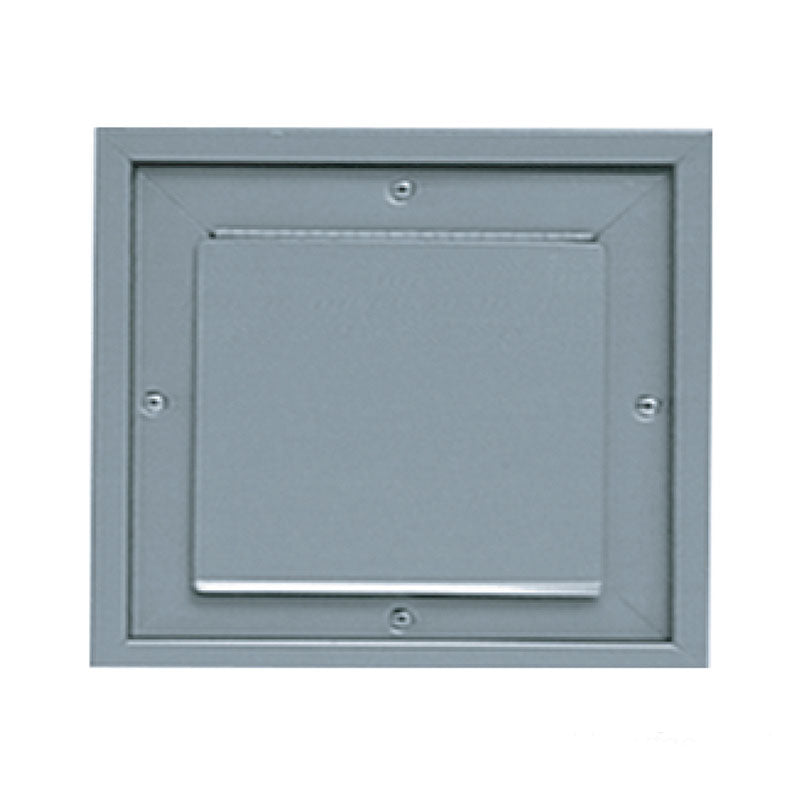

  • Complete Lite Kit = 9" x 9" Frame, Glazing, and Silicone Sealant
  • Includes 1/2″ clear high-impact polycarbonate, nearly indestructible
  • Features a steel hinged panel

Product Overview

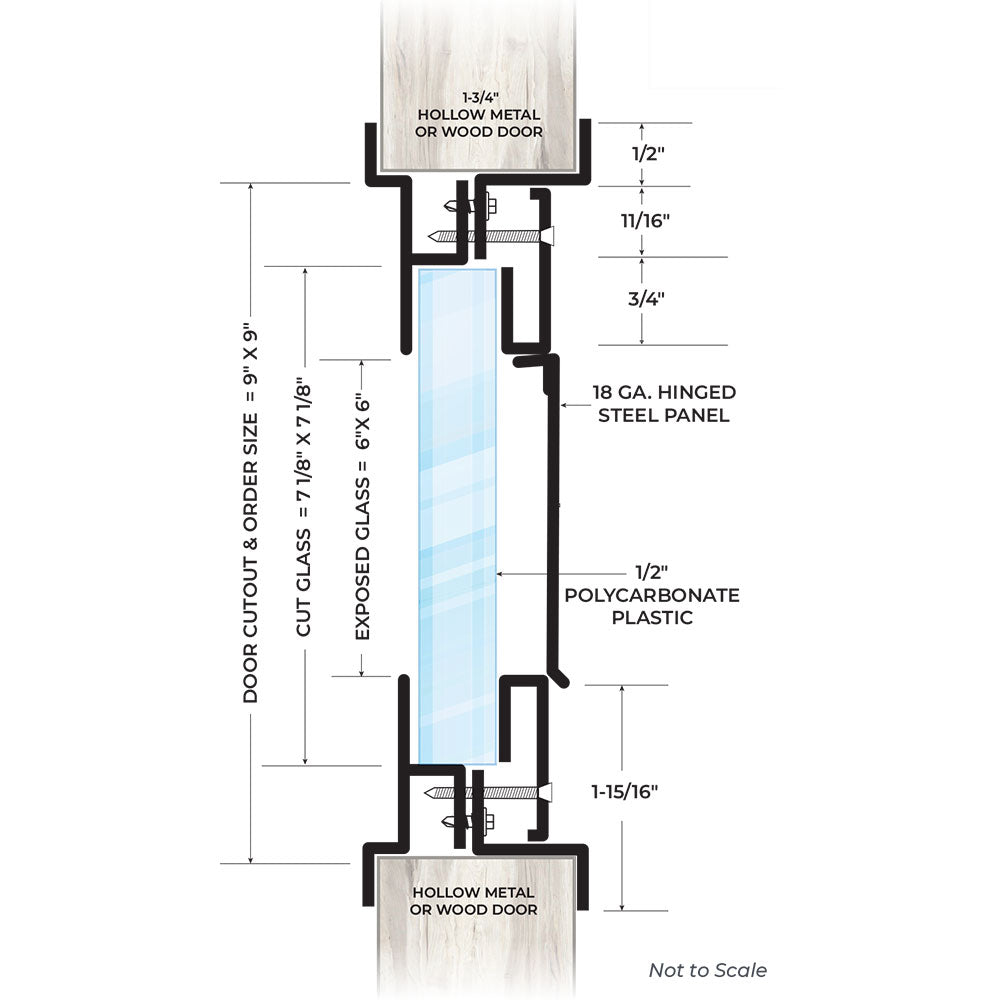

9" x 9" Security lite kit with high impact polycarbonate glazing for 1-3/4" thick doors

  • 18 Ga. Cold Rolled Steel
  • Mitered and Welded Corners
  • For 1-3/4" Hollow Metal or Wood Doors
  • 1/2" Thick High Impact Polycarbonate Plastic
  • 18 Ga. Steel Hinged Panel
  • No Exposed Fasteners on Outside of Door
  • Low-Profile Frame
  • Cutout Size is Equal to Order Size: 9" x 9"
  • 6" x 6" Exposed Glass Size
  • #8 x 1" Oval Head TEK Screws
  • 2.8 oz. Silicone Sealant Included
  • Gray Primer (GPZ) Powder Coat Finish
  • Designed for Use on 1-3/4" Thick Doors Manufactured Within Door Industry Tolerance of +/- 1/16"





This product is made to order and non-returnable or refundable.

Brand

Order Size

9" x 9"

Finishes

GPZ - Gray Primer

Frame Profile

Low

Glass Type

Polycarbonate

Glass Thickness

1/2"

Frame Construction

18 Gauge Cold Rolled Steel

Frame Fasteners

#8 x 1" Oval head TEK screws

Fire-Rating

None

Door Thickness

1-3/4"
