NGP (National Guard)

NGP (National Guard) L-FRA100 Vision Lite Kit Pack with 1/4" Clear Tempered Glass

$129.81
Usually Ships:  3-5 Business Days
  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • Includes 1/4" Clear Tempered - CAT II Impact-Rated (Safety Glass)
  • For use with 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

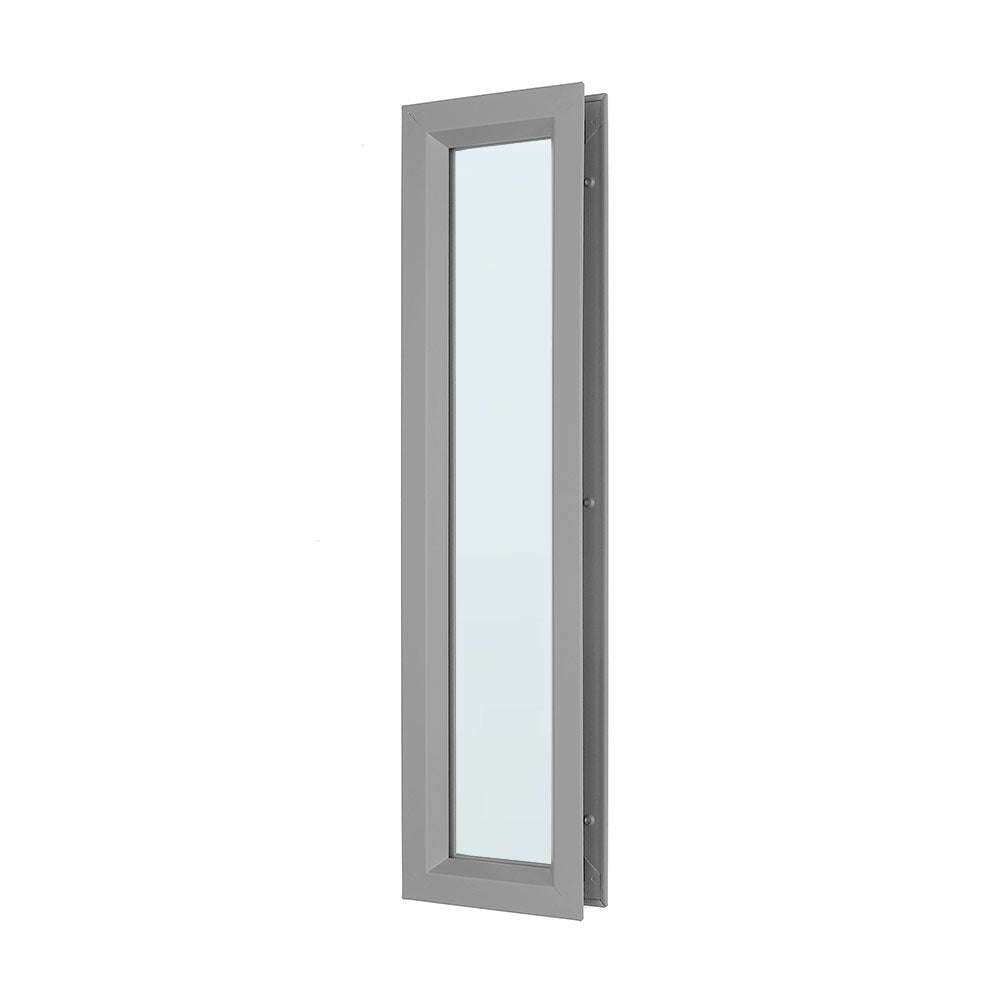

National Guard Products (NGP) L-FRA100-TG-GT-118 Low Profile Vision Lite Kit for 1-3/4" Thick Doors with 1/4" Tempered Glass and GT-118 Glazing Tape

Lite Kits provide light to rooms and provide safety for well-traveled corridor doors and office doors, allowing to see if others are entering the room

Fully tempered glass is four times stronger than annealed glass and is considered a safety glazing material. The strength imparted in the tempering process dramatically increases the ability of fully tempered glass to resist bending forces.

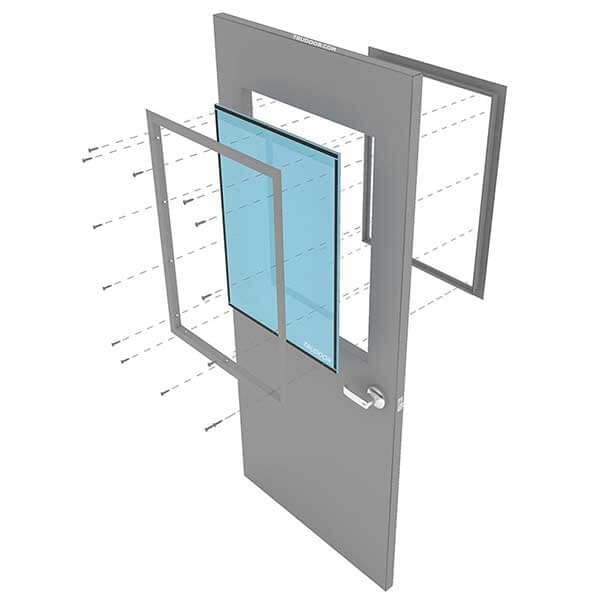

  • Mitered and welded corners with countersunk mounting holes

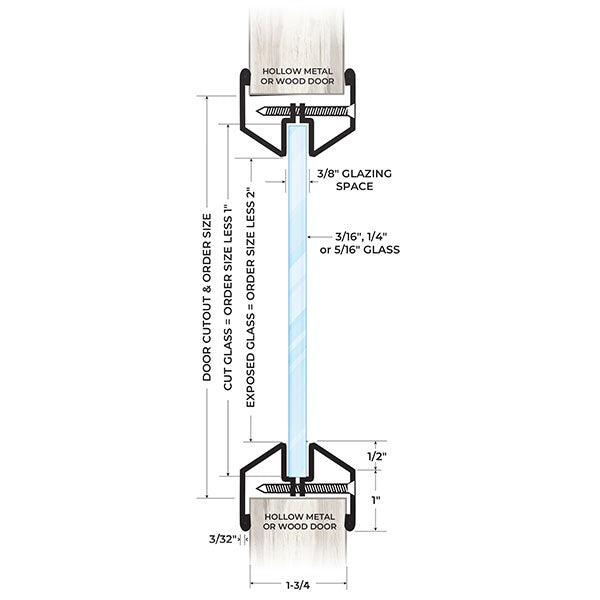

  • Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
  • Includes 1/4" Clear Tempered - CAT II Impact-Rated (Safety Glass) - Heat-treated clear safety glass that breaks into small particles
  • Tempered Glass - Four Times Stronger Than Annealed Glass

Tempered glass is recommended for all non-fire-rated doors

Custom features at additional cost and lead time (2-4 Weeks):

  • Custom sizes: Minimum 3" width or height; maximum 88" width or height
  • Special powder coat colors: (Gloss Black, Walnut Brown (matches Timely Browntone) and Magnolia White (matches Timely Western White)
  • Galvanneal or Aluminum Material

Call us at 1-844-878-3667 to order custom vision lite frames

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Finishes

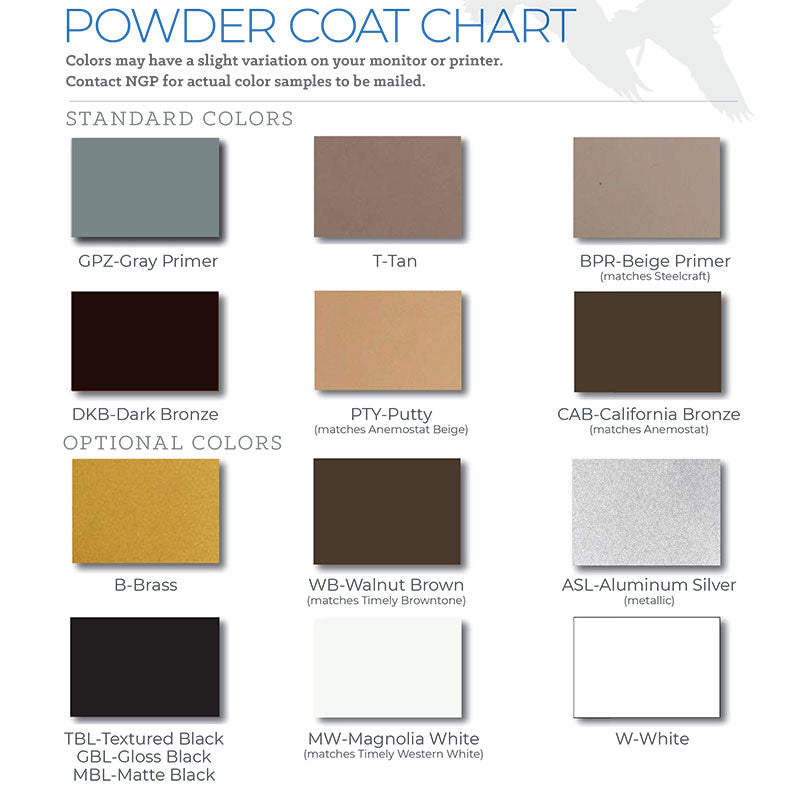

MBL - Matte Black, B - Brass, GPZ - Gray Primer, BPR - Beige Primer, DKB - Dark Bronze, T - Tan, W - White, ASL - Aluminum Silver

Order Size

6" x 27", 12" x 12", 24" x 56", 24" x 64", 24" x 72", 24" x 36", 24" x 60", 18" x 30", 18" x 32", 18" x 60", 18" x 64", 8" x 32", 5" x 35", 7" x 22", 24" x 24", 24" x 30", 24" x 32", 18" x 18", 8" x 36", 8" x 18", 8" x 56", 8" x 30", 8" x 60", 36" x 60", 36" x 36", 36" x 32", 36" x 30", 6" x 60", 6" x 56", 6" x 30", 24" x 34", 18" x 24"

Frame Profile

Low

Frame Construction

18 Gauge Cold Rolled Steel

Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included

Glass Type

Clear Tempered Glass

Glass Thickness

1/4"

Glass Appearance

Clear

Glass Impact Safety Rating

ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II

Glass Light Transmission

Approx. 86%

Glass Fire-Rating

None

Door Thickness

1-3/4"

Part Number

L-FRA100-TG-GT-118-GPZ

Buy American Act Compliance

Meets Buy American Act - Made in USA
