NGP (National Guard)

NGP (National Guard) L-FRA100-SP Vision Lite Kit Pack with 1″ Clear Insulated Safety Glass

$207.88
Usually Ships:  10-15 Business Days
  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • Includes 1″ Clear Insulated Glass (each pane 3/16″ thick)
  • For use with 1-3/4″ thick doors

Available Options:

Clear

Product Overview

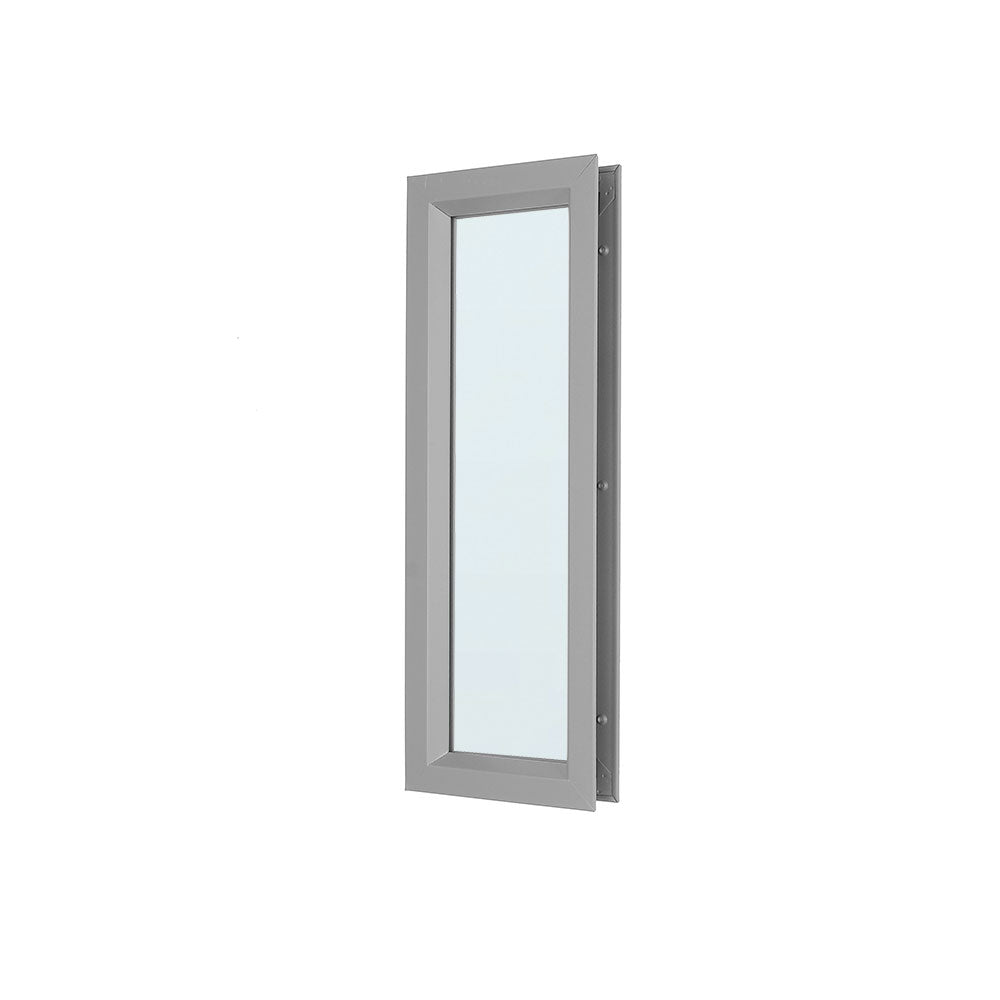

National Guard Products L-FRA100-SP Low Profile Lite Kit for 1-3/4" Thick Doors with 1″ Clear Insulated Safety Glass and Glazing Tape

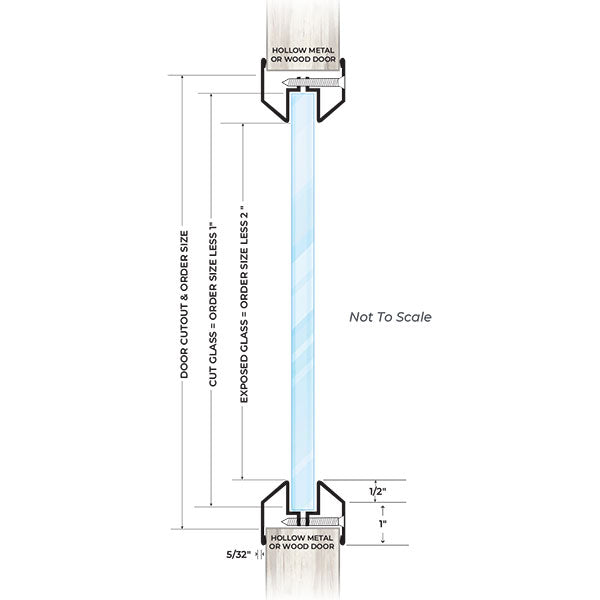

  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Mitered and welded corners with countersunk mounting holes

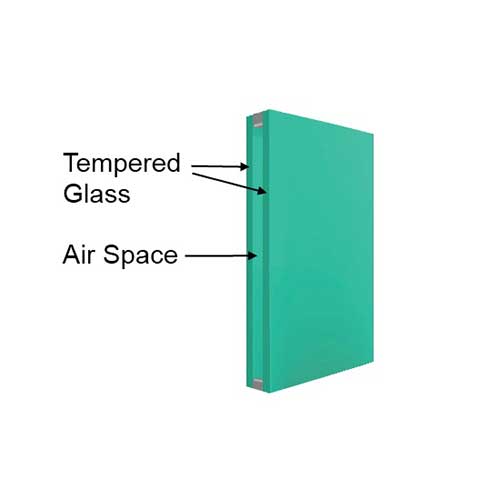

  • Includes 1″ Insulated Glass – Two Panes of tempered glass with a metal spacer in a sealed insulated glass unit – Each Pane: 3/16″ – Clear, colorless, intumescent inter-layer
  • Glass Approvals: ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II
  • Includes glazing tape

made-in-usa

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Finishes

DKB - Dark Bronze, W - White, MBL - Matte Black, GPZ - Gray Primer, BPR - Beige Primer

Order Size

7" x 22", 24" x 56", 18" x 24", 18" x 30", 18" x 32", 18" x 60", 24" x 60", 24" x 64", 5" x 35", 6" x 27", 8" x 32", 24" x 24", 24" x 30", 24" x 32", 24" x 36"

Fire-Rating

None

Glass Type

Clear Insulated Glass

Glass Appearance

Clear

Glass Thickness

1"

Frame Profile

Low

Frame Construction

18 Gauge Cold Rolled Steel

Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included

Glass Impact Safety Rating

ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II

Door Thickness

1-3/4"

Buy American Act Compliance

Meets Buy American Act - Made in USA
