NGP (National Guard)

NGP (National Guard) L-FRA100 Lite Kit with 1/4" Clear Fireglass20, 20 Minute Fire-Rated Tempered Safety Glass

$125.19
Usually Ships:  3-5 Business Days

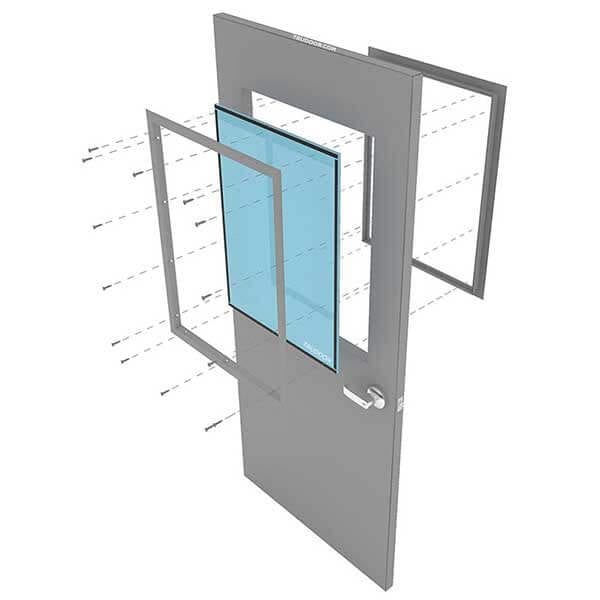

  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • Includes Fireglass®20 (tempered 20-minute fire-protective glass)
  • For use with 1-3/4″ thick fire-rated steel or wood doors

Available Options:

Clear

Product Overview

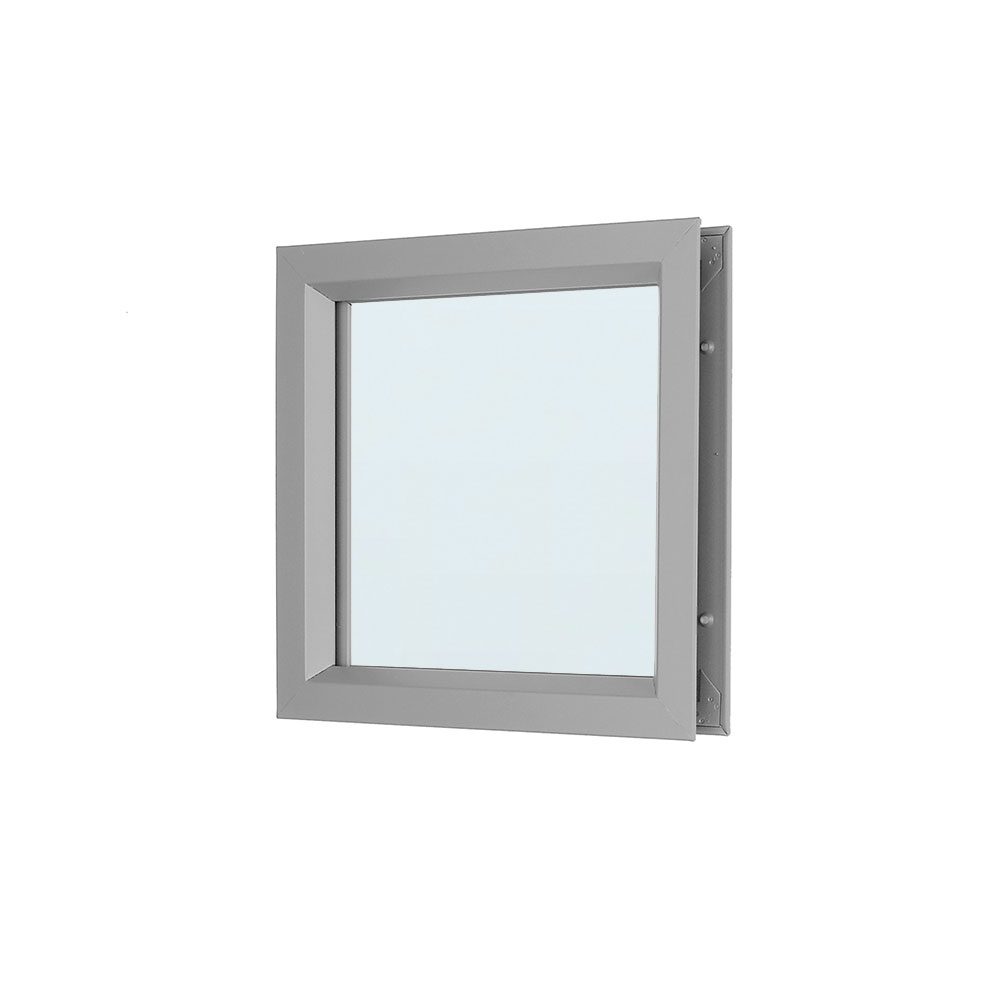

National Guard Products L-FRA100 Low Profile Lite Kit for 1-3/4" Thick Doors with TGP Fireglass®20 Glass and Glazing Tape

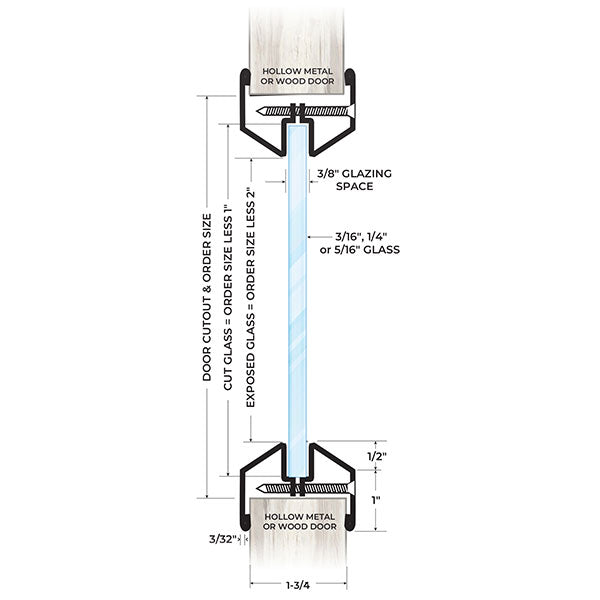

  • Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
  • Includes Fireglass20 – a clear fire-rated and impact-safety-rated tempered glass for 20-minute fire doors
  • Closed-cell glazing tape included with every kit
  • 18 ga. cold rolled steel frame
  • Frame is embossed with UL Label
  • Glass is permanently etched with UL fire and impact safety classification
  • This glass is cut to size then heat treated (tempered) to achieve its safety rating properties
  • Meets NFPA 80 requirements for certification and labeling

Classified and labeled by Underwriters Laboratories, Inc.®. File number for labeled 20 minute fire-rated assemblies is R13377. Tests performed in accordance with:UL 9, UL 10B, UL 10C, NFPA 80, NFPA 252, LARR 25798. All listing information is subject to change.

Labeling: Each piece of Fireglass20 shall be permanently labeled with the appropriate marking

Note: Per NFPA 80 (National Fire Protection Association), field cutting of doors for vision panels or enlarging existing cutouts for vision panels are considered to be a field modification that is NOT allowed.

Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Order Size

12" x 12", 24" x 36", 8" x 32", 24" x 32", 24" x 30", 6" x 27"

Finishes

DKB - Dark Bronze, W - White, MBL - Matte Black, GPZ - Gray Primer

Glass Type

Clear Fire-Rated Glass, Clear Tempered Glass

Glass Thickness

1/4"

Frame Profile

Low

Frame Construction

18 Gauge Cold Rolled Steel

Frame Fire-Rating

3 Hour - Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure - WHI Listed

Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included

Glass Weight

3.0 lbs/ft

Glass Appearance

Clear

Glass Light Transmission

Approx. 89%

Glass Impact Safety Rating

Meets ANSI Z97.1 and CPSC 16CFR1201 (Cat. I and II)

Glass Fire-Rating

20 minutes (without required hose stream test)

Door Thickness

1-3/4"

Buy American Act Compliance

Meets Buy American Act - Made in USA
