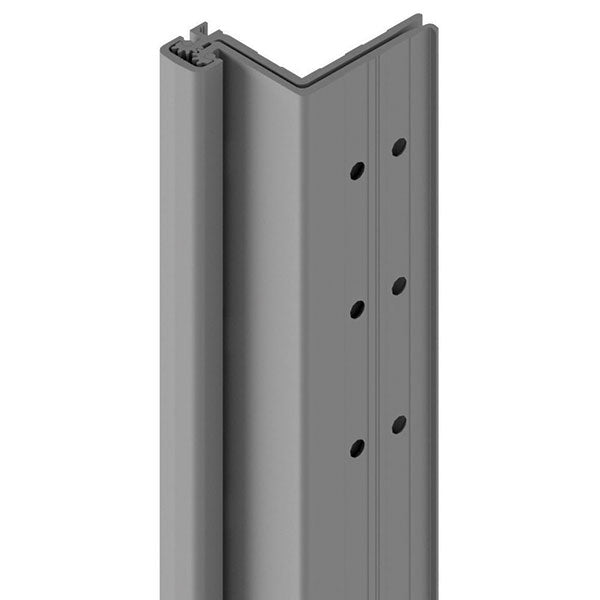

NGP (National Guard) HD4100 Heavy Duty Concealed Swing-Clear Continuous Geared Hinge

$237.51
Usually Ships:  5-10 Business Days
  • 1/16" Door Inset for 1-3/4" Doors
  • UL listed, fire-rated up to 90-minutes
  • Supports weights up to 600lbs (LL model 1000 lbs)

Available Options:

Clear

Product Overview

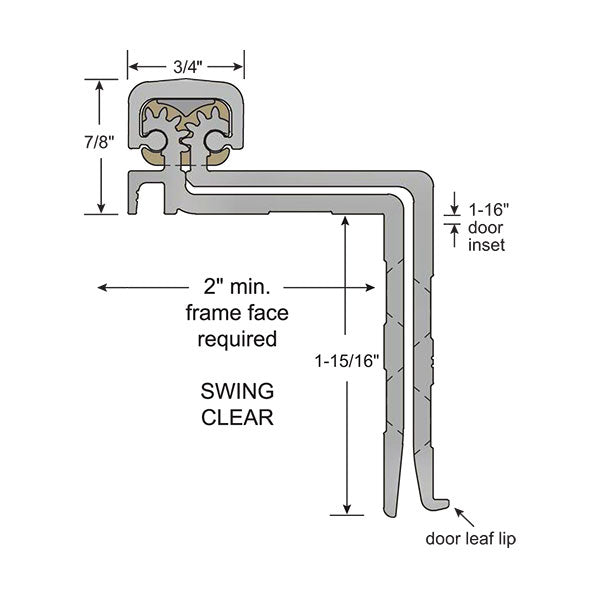

NGP HD4100/HD4100-LL Heavy Duty Concealed Swing-Clear Continuous Geared Hinge, 1/16" Door Inset for 1-3/4" Doors

Continuous geared aluminum hinges run the full height of the door evenly distributing the weight of the door along the full height of the frame. Ideal for high-frequency and heavy-weight doors in new construction and retrofit applications.

  • 1/16" Door Inset for 1-3/4" thick doors
  • Aluminum alloy 6063-T6; Anodized after machining
  • Specially designed involute intermeshing gears
  • Proprietary Teflon infused self-lubricating wear-resistant bearings
  • No hinge reinforcement is necessary except on extremely heavy, extremely high-frequency or extra-wide doors
  • Lifetime of the door opening warranty
  • #12-24 TEK MS
  • “LL” model for doors up to 1,000 lbs. features lead-lined dual row hole pattern
  • Standard lengths: 83", 85", *95"
  • Note: For door sizing refer to installation instructions

*Oversize handling fee applies (added at checkout)

Brand

Length

83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)

Material

Aluminum alloy 6063-T6; Anodized after machining

ANSI/BHMA Standard

ANSI/BHMA Certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 150 lb. Door, Grade 1 - 600 lb. Door

Fire-Rating

Fire-rated 90-minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 8'0" and steel stiffened doors up to 4'0" x 7'2"

Continuous Hinge Type

Full Mortise (Concealed), Swing Clear

Usage

Heavy Duty

Buy American Act Compliance

Meets Buy American Act - Made in USA
