Product Overview

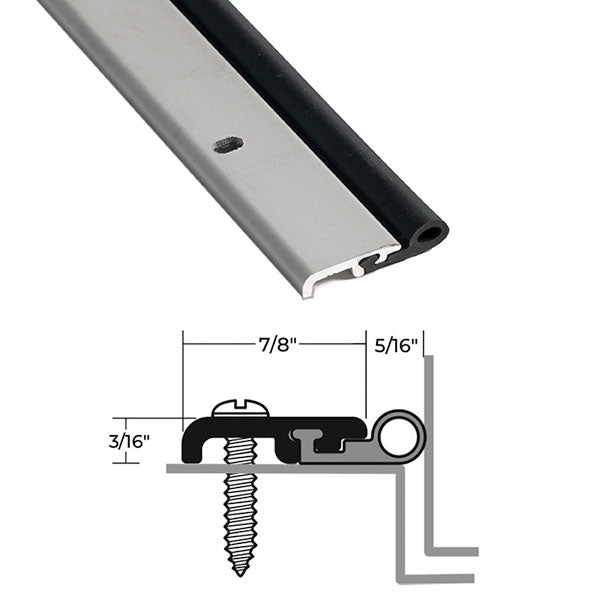

National Guard Products (NGP) 137N Jamb Perimeter Weatherstrip Set with Neoprene Dense Bulb Seal
Designed to be applied to the “stop” perimeter of the door frame. The seal compresses against the door, to create a tight seal.
- Aluminum Alloy 6063, T5 Temper
- Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix
- Very Good Abrasion Resistance, Tensile Strength and Memory
- Flame-Resistant
- Moisture-Resistant
- Temperature Range -81°F to 275°F
- Good Resistance to Ozone, Sunlight and Aging
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
- #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
- Screw Holes Slotted for Adjustment
- Available Sizes: 36″ x 84″ Set, 48″ x 84″ Set, 72″ x 84″ Set and *96″ Single Piece (add 3 for 96″ x 96″ Frame)
- Full-Length; Field-Cut to Size
*excessive length shipping fee applies
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C
- ACOUSTICAL TESTED to ASTM E90
- AIR INFILTRATION TESTED to ASTM E283
- ANSI/BHMA CERTIFIED
| Brand | |
|---|---|
| Finishes |
Dark Bronze Anodized Aluminum, Mill Finish Aluminum |
| Size |
36" x 84", 72" x 84", 96", 48" x 84", 48" x 96", 72" x 96", 96" x 96", 36" x 96" |
| Fire-Rating |
Fire Rated – UL10C – Positive Pressure |
| Insert/Seal Type |
Neoprene or EPDM |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
