McKinney

McKinney TA2714 - 5" x 4.5" Bearing Hinge

$16.24
Usually Ships:  1-2 Business Days
  • Meets Industry Standards ANSI/BHMA A156.1
  • .146 Standard Weight
  • Five Knuckle, Template Hole Pattern

Available Options:

Clear

Product Overview

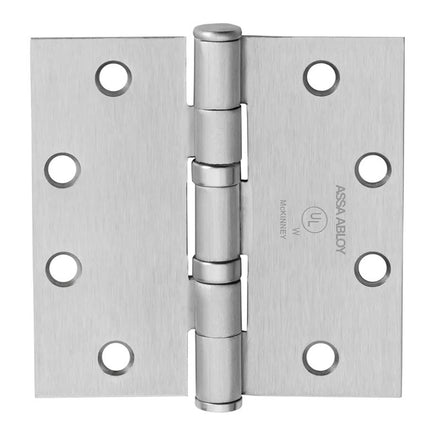

McKinney TA2714 5" x 4-1/2" Full Mortise Steel Five Knuckle Standard Weight Bearing Hinge

The TA2714 (steel) are standard weight five knuckle full mortise hinges used for common flush door/frame/wall applications and recommended for standard weight, medium frequency doors, or doors with closing devices.

  • TA: Oil impregnated bearing hinge
  • Dependable and long-lasting
  • Recommended for standard weight, medium frequency doors, or doors with closing devices
  • Packed with wood and metal screws
  • Suites with Rockwood pulls, coat hooks, and door stops
  • Pairs well with Corbin Russwin and Sargent decorative levers
  • UL listed, NFPA 80 Compliant
Brand

Finishes

625 Bright Chrome, 652 Satin Chrome, 600 Prime Coat, 640 Oil Rubbed Bronze, 646 Satin Nickel, 632 Bright Brass, 639 Satin Bronze

Hinge Type

Full Mortise

Size

5" x 4.5"

Knuckles

Five

Bearings

Oil Impregnated Bearing

Gauge

0.146

Usage

Medium Duty

ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1

Fire-Rating

Certified to meet UL standards (3hr)

Fasteners

Packed with wood and metal screws
