McKinney MK250 3D Adjustable Concealed Invisible Hinge

$206.34
Usually Ships:  3-5 Business Days
  • For use with wood and hollow metal doors (1-5/8″ min. thickness)
  • Can hold doors up to 609 lbs.
  • 3-dimensional adjustability, 180° opening angle

Available Options:

Clear

Product Overview

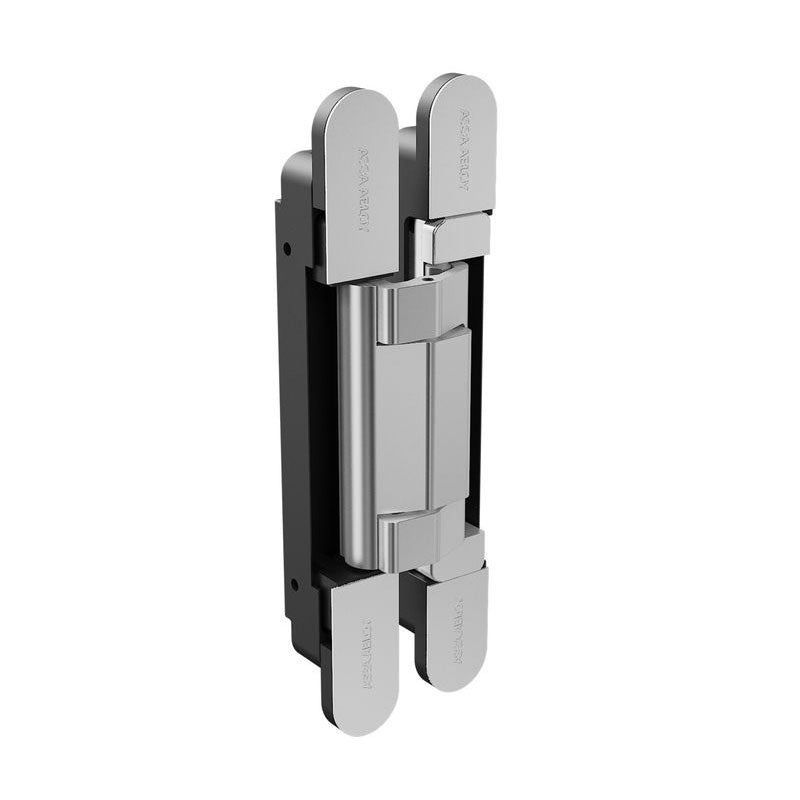

McKinney MK250 3D Adjustable Concealed Invisible Hinge

The MK250 are concealed hinges for wood or hollow metal doors with a 1-5/8" minimum thickness, are non-handed and include magnetic covers.

Features

  • For use on wood or hollow metal doors that are a minimum 1-5/8" thick
  • Magnetic covers included
  • 240mm (9.45") hinge length, 32mm (1.26") hinge width

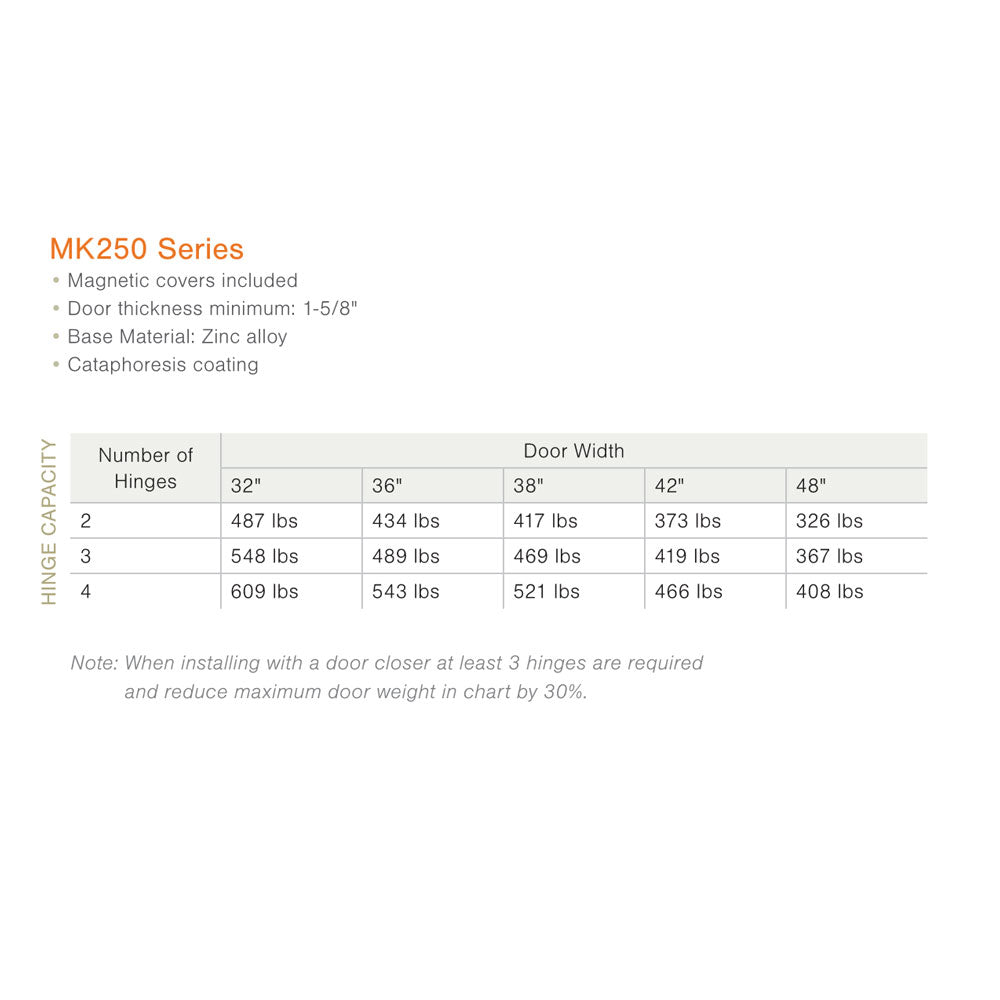

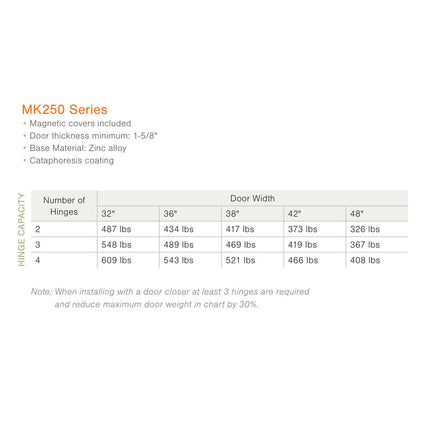

  • Can hold doors up to 609 lbs.
  • 3-dimensional adjustability, 180° opening angle
  • Base Materials: Hinge body - zinc alloy, Hinge arms - aluminum, Hinge covers - steel
  • Cataphoresis coating provides a durable and corrosion-resistant surface

Benefits

  • Easy installation and door alteration
  • Keeps door clean and minimal
  • No visible exposure on the outside of the opening
  • Magnetic covers conceal screws for a clean aesthetic
  • Prevents tampering, increases security
  • Greater hinge capacity than all other McKinney concealed hinge models
Brand

Finish

Satin Chrome, Black

Size

9-1/2" x 1-3/8"

Fasteners

Metal: M5 x 20 screws, Wood: 35mm PHWS

ANSI/BHMA Standard

ANSI/BHMA A156.1 Certified
