McKinney

McKinney 1502 - 4.5" x 4.5" Spring Hinge

$19.19
Usually Ships:  1-2 Business Days
  • UL Listed (Fire-Rated)
  • Alternative to door closing device
  • Self-closing eliminates the need to pull the door shut

Available Options:

Clear

Product Overview

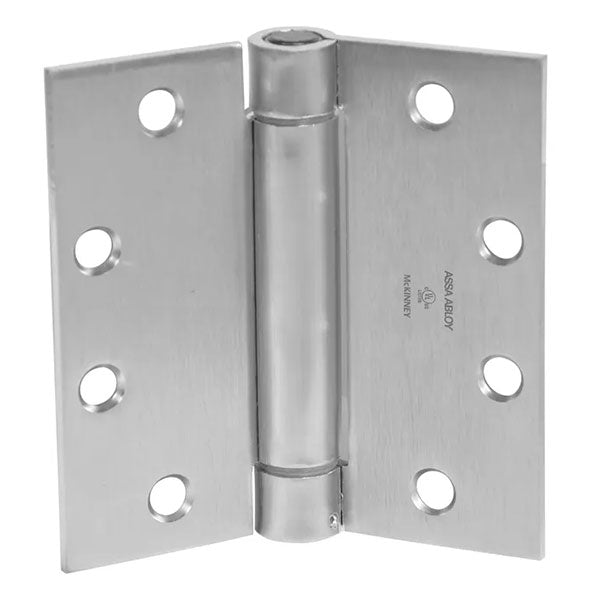

McKinney 1502 4-1/2 x 4-1/2 Full Mortise Single Acting Spring Hinge, Standard Weight

Some door/frame/wall and even ceiling conditions make door closers impractical. An alternative closing device is the Spring Hinge. Generally, at least two hinges on a door must be spring hinges to provide adequate closing force. Recommended for standard weight, medium frequency doors in place of door closers in apartments, hotels, motels, office buildings, etc.

  • Spring hinges are an alternative to door closing devices
  • Self-closing, Adjustable
  • Tension can be added or reduced by means of provided hex key
  • Prevents door from being accidentally left open, saving on heating and cooling costs
  • NFPA requires a minimum of two (2) spring hinges on labeled doors
  • UL listed and UL10c compliant
  • NFPA 80 Compliant

Caution: Use of gasketing for smoke or sound protection, wind conditions or unbalanced air pressure, twisted or misaligned frames or doors, door bottoms, improper latch adjustment may prevent doors from latching. Additional spring hinges may be required.

Brand

Finishes

652 Satin Chrome, 633 Satin Brass, 640 Oil Rubbed Bronze, 651 Bright Chrome, 646 Satin Nickel, 632 Bright Brass, USP Prime Coat, 639 Satin Bronze, BSP Black Suede Powder Coat, 10BE Satin Bronze Powder Coat

Size

4.5" x 4.5"

Gauge

0 .134

ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1

Fire-Rating

UL listed for use with fire rated doors

Usage

Medium Duty

Fasteners

Packed with wood and metal screws
