Marks USA

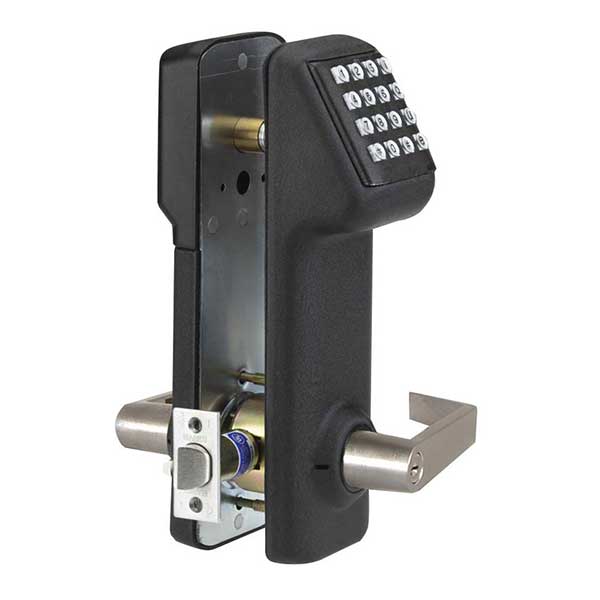

Marks USA IQ1LITE Standalone Electronic Cylindrical Keypad Lock

$360.26
This item ships FREE! Usually Ships:  1-2 Business Days
  • Standalone electronic lock
  • Programmable at the keypad
  • Mechanical key override

Available Options:

Clear

Product Overview

Marks IQ1LITE Cylindrical Keypad Lock, Standalone, Keypad Programmable, Passage & PIN Only Modes, 2-Wire Remote Release, Weatherproof

No-nonsense access control right out of the box

The i-Qwik Line is Marks USA freestanding access control locksets. They allow doors to be locked or unlocked via a user-programmable keypad, rather than a key. All i-Qwik Line Locksets feature the "CableGard™" to protect the wiring going through the door.

  • CableGard protects wires for easy installation
  • Key Override: Marks “C” keyway, 6 pin w/2 keys
  • Standard ANSI door prep with one additional hole
  • Pre-programmed code
  • Keypad programmable
  • 160 User codes
  • Temporary user codes
  • Passage mode
  • Pin only mode
  • Double code entry for maximum security
  • Two wire remote release
  • 16 Digit tactile metal keypad
  • Weatherproof standard
  • Audible & visible entry indicator
  • Audible low battery alert
  • 4 “AA” batteries; 100,000 operations
  • Easy installation
Brand

Finishes

US19 Flat Black, US26D Satin Chrome

Lock Function

Pushbutton Keypad

Usage

Medium Duty

ANSI Grade

ANSI Grade-2

Fire-Rating

Fire Rated - UL10C - Positive Pressure

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Keyway

Schlage C Keyway

Backset

2-3/4"

Door Thickness

1-3/4"

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Power

4 AA batteries

Warranty

Lifetime Mechanical Warranty; 2 Year Electronic
